- Incorporates Browning Split Taper Bushing – The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub.
- Sheaves are Statically Balanced – All sheaves are statically balanced to assure smooth, vibration free performance.
- Close Grain Cast iron – Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible.
8C86R

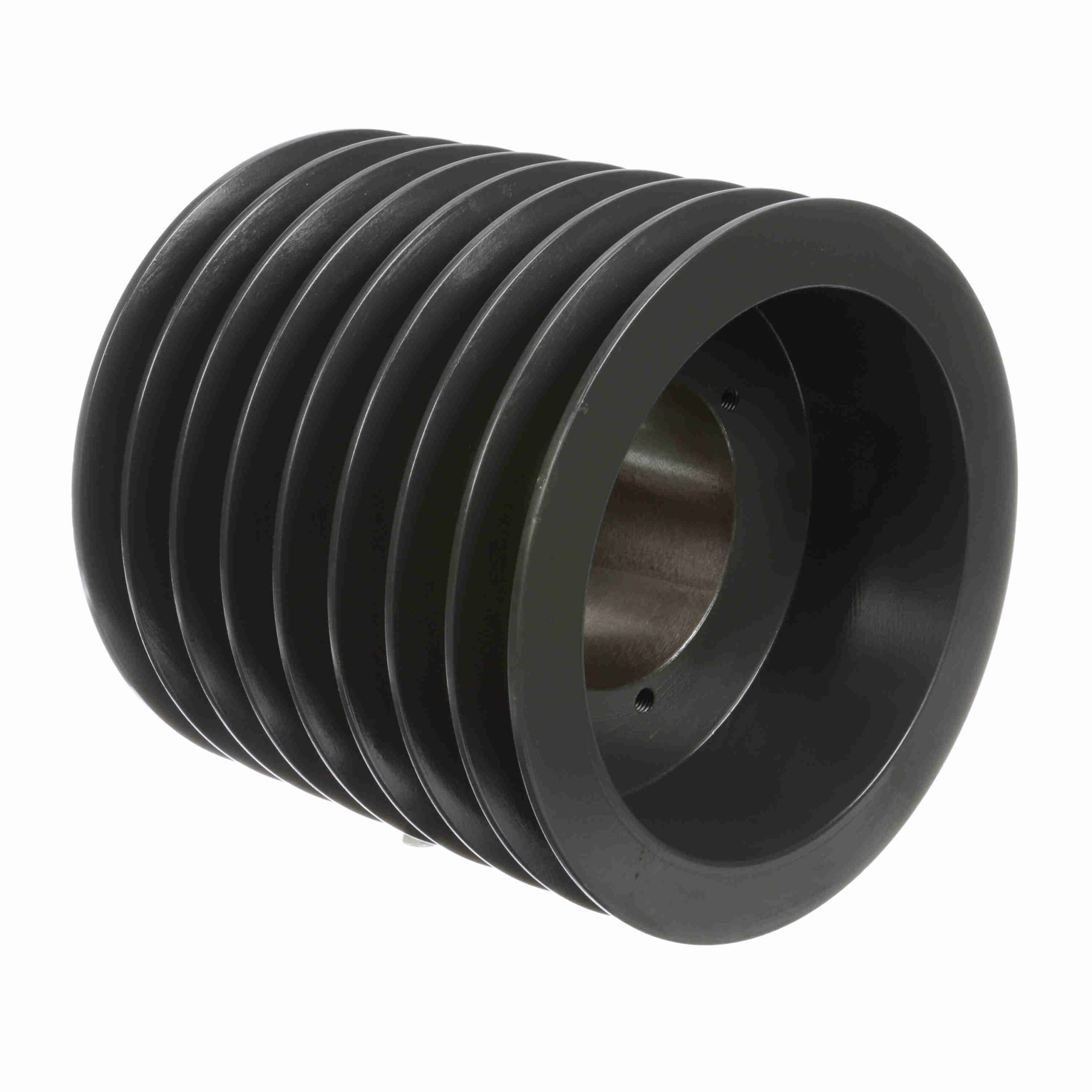

Browning 8 Groove Cast Iron Bushed Bore Multiple Sheave – 8C86R
Out of stock
| Datum Diameter (C): | 8.6 | Pulley Material: | Cast Iron |
|---|---|---|---|
| Material: | Cast Iron | Outside Diameter (in): | 9 in |
| Number of Grooves: | 8 | Overall Length (in): | 8.25 in |
| Bushing Used: | R2 | Pitch Diameter (C): | 9 |
| Bore (Min) (in): | 1.375 in | Belt Section: | C |
| Product Type: | Multiple Sheaves | Bore Type: | Split Taper Bushed |
| Bushing Bore Range: | 1.375 - 3.625 | Keyway Size: | .750 |
| UPC: | 662289135806 | Weight: | 53.00 LB |
| Packaged Length: | 10.13 Inches | Packaged Width: | 10.13 Inches |
| Packaged Height: | 5.13 Inches | HTC: | 8483.50.9040 |
| Country of Origin: | Mexico |
