- Largest Selection of finished bore sheaves of any other manufacturer – Browning offers finished bore sheaves in both A& B Combination (A/B) configuration. 1& 2 Grooves are available to meet any fractional horsepower requirement.
- Sheaves are Statically Balanced – All sheaves are statically balanced to assure smooth, vibration free performance.
- Close Grain Cast iron – Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible.
AK84X1

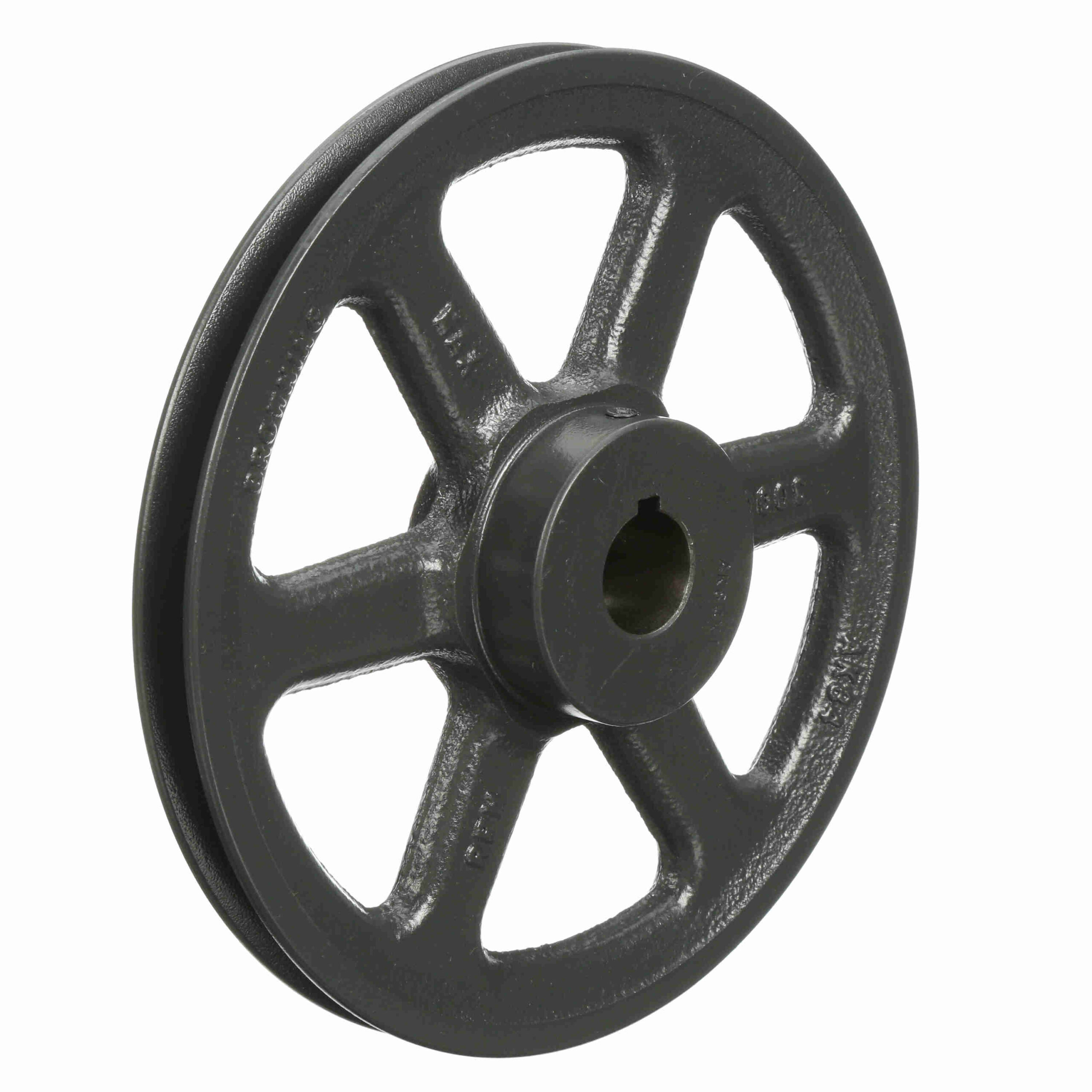

Browning 1 Groove Cast Iron FHP – Finished Bore Sheave – AK84X1
$114.26
Availability: 224 in stock
Availability: 224 in stock
| Datum (3L): | 7.66 | Warning: | Do not use these "AK" sheaves with bores 1" and under with gripnotch belt ratings. |
|---|---|---|---|
| Model Name: | AK_Sheave_Master2 | Material: | Cast Iron |
| Outside Diameter (in): | 8.25 in | Number of Grooves: | 1 |
| Pitch Diameter (A): | 8.2 | Bore (in): | 1 in |
| Product Type: | FHP - Finished Bore | Belt Section: | 4L or A, 3L |
| Bore Type: | Finished with Keyway and SS | Pulley Construction: | Spoked |
| Face Width (in): | 0.75 | Keyway Size: | 1/4 x 1/8 |
| Overall Width (in): | 1.53125 | Set Screw Thread: | 5/16-18UNC-3AX3/8 |
| Set Screw Tightening Torque (in-lb): | 165 | UPC: | 662289267057 |
| Weight: | 5.14 LB | Packaged Length: | 8.40 Inches |
| Packaged Width: | 8.50 Inches | Packaged Height: | 1.60 Inches |
| HTC: | 8483.50.9040 | Country of Origin: | Mexico |
