- Incorporates Browning Split Taper Bushing – The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub.
- Sheaves are Statically Balanced – All sheaves are statically balanced to assure smooth, vibration free performance.
- Close Grain Cast iron – Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible.
6TC74

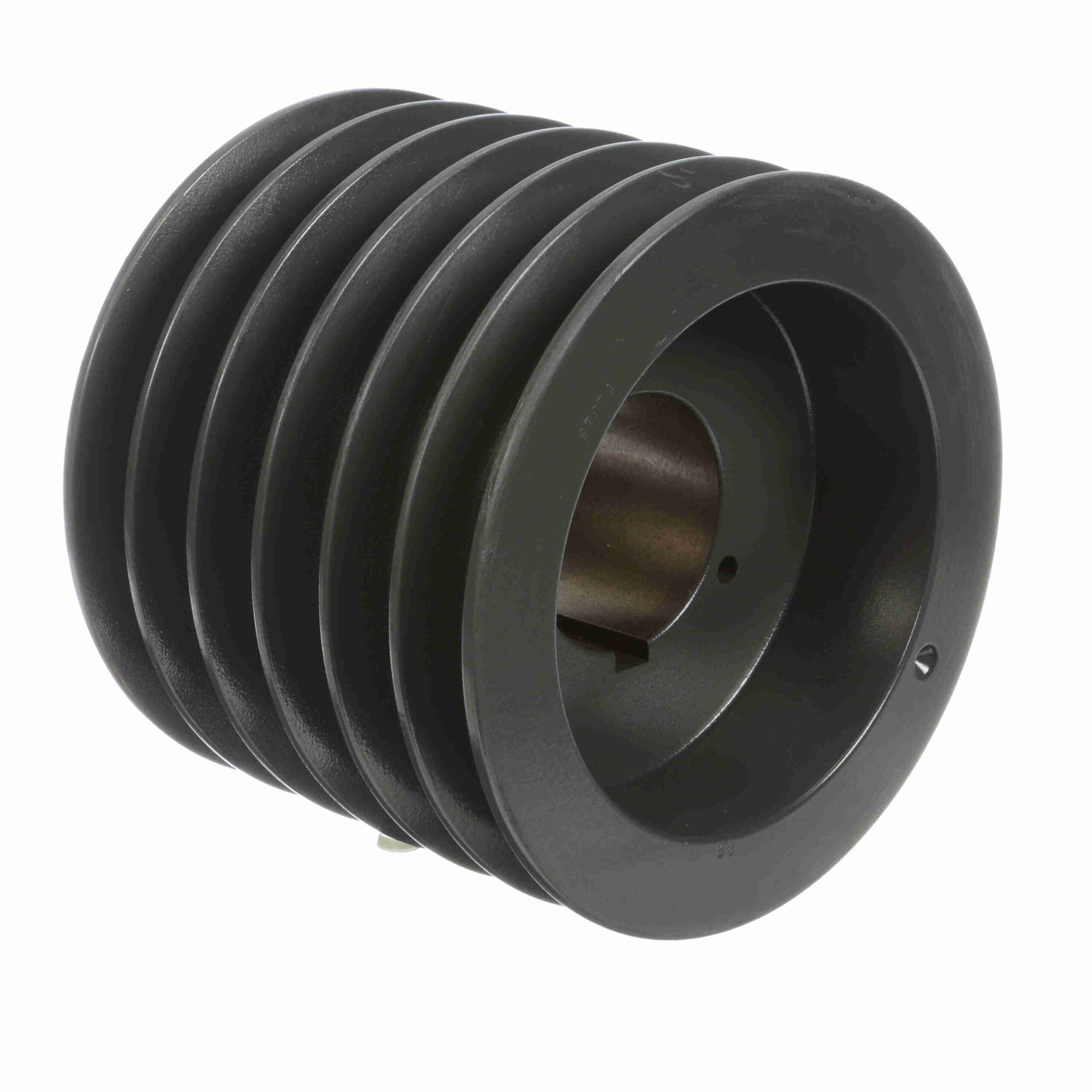

Browning 6 Groove Cast Iron Bushed Bore Multiple Sheave – 6TC74
Out of stock
| Number of Grooves: | 6 | Outside Diameter (in): | 7.8 in |
|---|---|---|---|
| Bushing Used: | Q2 | Pulley Material: | Cast Iron |
| Pitch Diameter (C): | 7.8 | Overall Length (in): | 6.25 in |
| Datum Diameter (C): | 7.4 | Material: | Cast Iron |
| Model Name: | 6TC-S_Sheave_Master | Bore (Min) (in): | 1 in |
| Belt Section: | C | Product Type: | Multiple Sheaves |
| Bore Type: | Split Taper Bushed | Bushing Bore Range: | 1.000 - 2.625 |
| Keyway Size: | .500 | UPC: | 662289132898 |
| Weight: | 33.34 LB | Packaged Length: | 8.20 Inches |
| Packaged Width: | 8.10 Inches | Packaged Height: | 6.50 Inches |
| HTC: | 8483.50.9040 | Country of Origin: | Mexico |
