- Incorporates Browning Split Taper Bushing – The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub.
- Sheaves are Statically Balanced – All sheaves are statically balanced to assure smooth, vibration free performance.
- Close Grain Cast iron – Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible.
5C98R

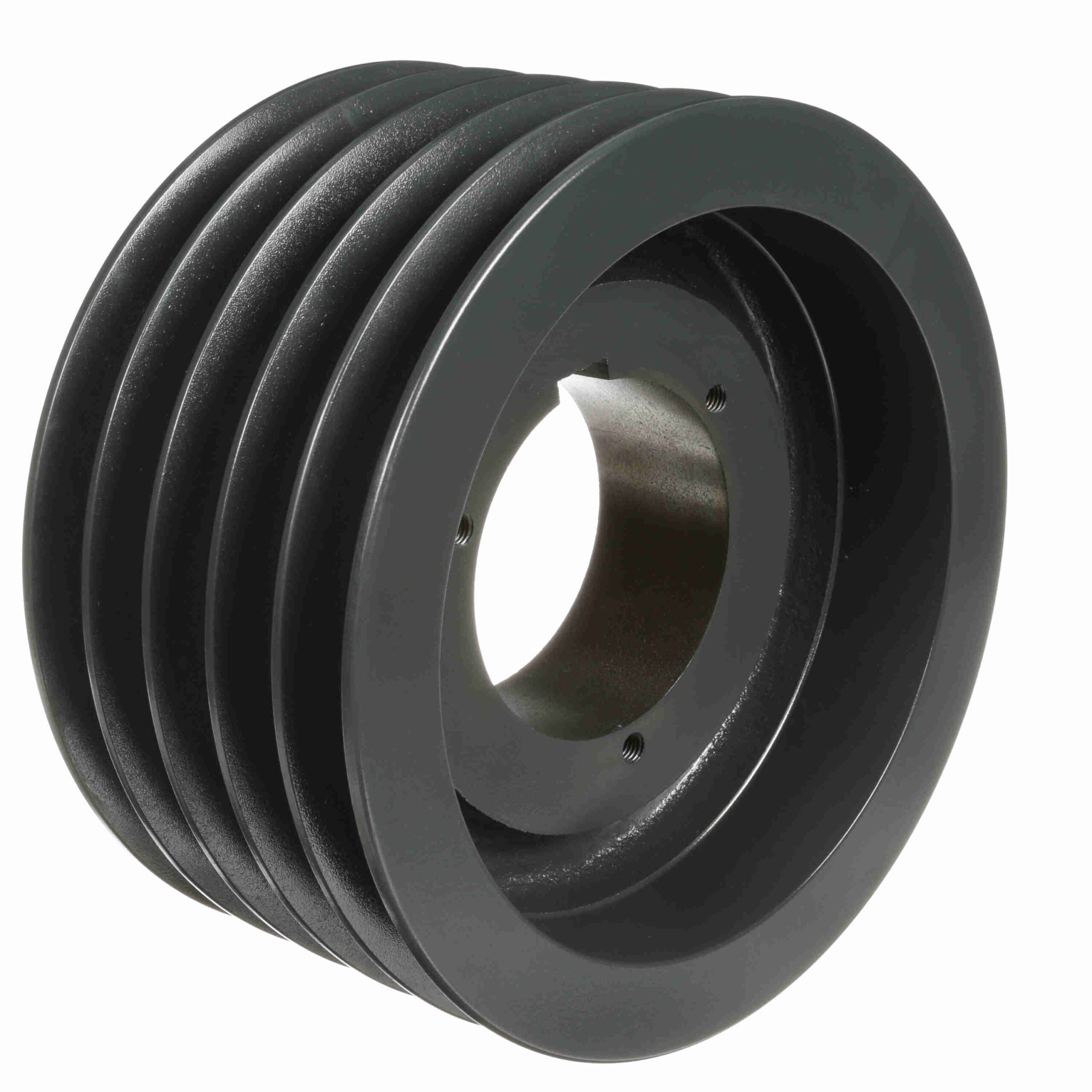

Browning 5 Groove Cast Iron Bushed Bore Multiple Sheave – 5C98R
Out of stock
| Pitch Diameter (C): | 10.2 | Bushing Used: | R1 |
|---|---|---|---|
| Material: | Cast Iron | Number of Grooves: | 5 |
| Pulley Material: | Cast Iron | Datum Diameter (C): | 9.8 |
| Outside Diameter (in): | 10.2 in | Overall Length (in): | 4.796875 in |
| Bore (Min) (in): | 1.125 in | Belt Section: | C |
| Product Type: | Multiple Sheaves | Bore Type: | Split Taper Bushed |
| Face Width (in): | 5.25 | Overall Width (in): | 5.25 |
| Keyway Size: | .750 | Bushing Bore Range: | 1.125 - 3.750 |
| Pulley Construction: | Webbed | UPC: | 662289311170 |
| Weight: | 37.08 LB | Packaged Length: | 10.50 Inches |
| Packaged Width: | 10.50 Inches | Packaged Height: | 5.25 Inches |
| HTC: | 8483.50.9040 | Country of Origin: | Mexico |
