- Incorporates Browning Split Taper Bushing – The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub.
- Sheaves are Statically Balanced – All sheaves are statically balanced to assure smooth, vibration free performance.
- Close Grain Cast iron – Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible.
1TC84

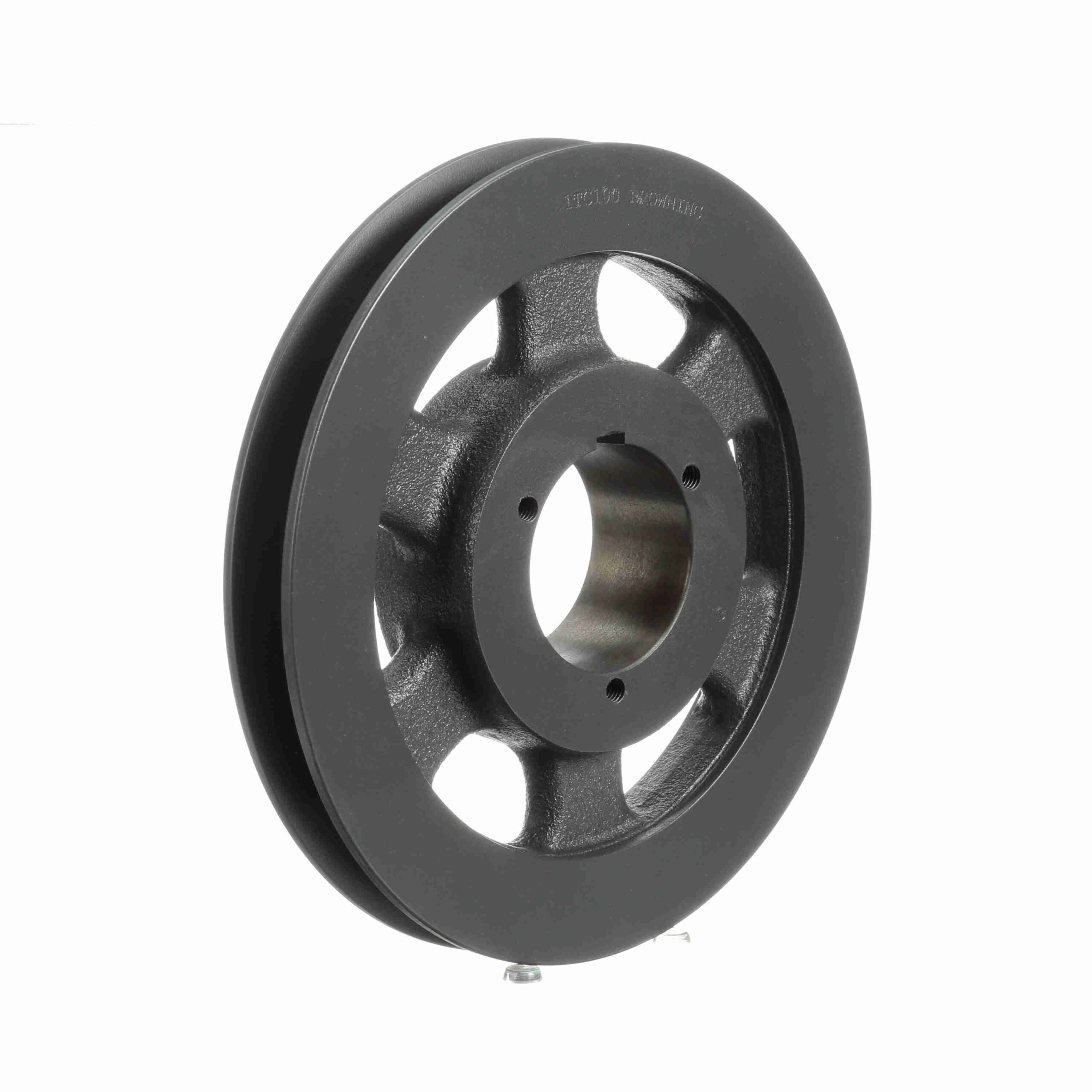

Browning 1 Groove Cast Iron Bushed Bore Multiple Sheave – 1TC84
Out of stock
| Overall Length (in): | 2.734375 in | Datum Diameter (C): | 8.4 |
|---|---|---|---|
| Pulley Material: | Cast Iron | Pitch Diameter (C): | 8.8 |
| Bushing Used: | Q1 | Number of Grooves: | 1 |
| Outside Diameter (in): | 8.8 in | Material: | Cast Iron |
| Bore (Min) (in): | 0.75 in | Belt Section: | C |
| Product Type: | Multiple Sheaves | Bore Type: | Split Taper Bushed |
| Pulley Construction: | Webbed | Face Width (in): | 1.25 |
| Keyway Size: | .500 | Overall Width (in): | 2.7813 |
| Bushing Bore Range: | 2.6875 - 2.6875 | UPC: | 662289060580 |
| Weight: | 11.17 LB | Packaged Length: | 10.00 Inches |
| Packaged Width: | 10.10 Inches | Packaged Height: | 1.90 Inches |
| HTC: | 8483.50.9040 | Country of Origin: | Mexico |
