- Largest Selection of H Bushed sheaves of any other manufacturer – Browning offers bushed sheaves in both A& B Combination (A/B) configuration. 1& 2 Grooves are available to meet any fractional horsepower requirement.
- Sheaves are Statically Balanced – All sheaves are statically balanced to assure smooth, vibration free performance.
- Close Grain Cast iron – Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible.
- Combination Groove – All Browning BK H Sheaves permit the running of A, 4L, B& 5L Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers.
BK110H

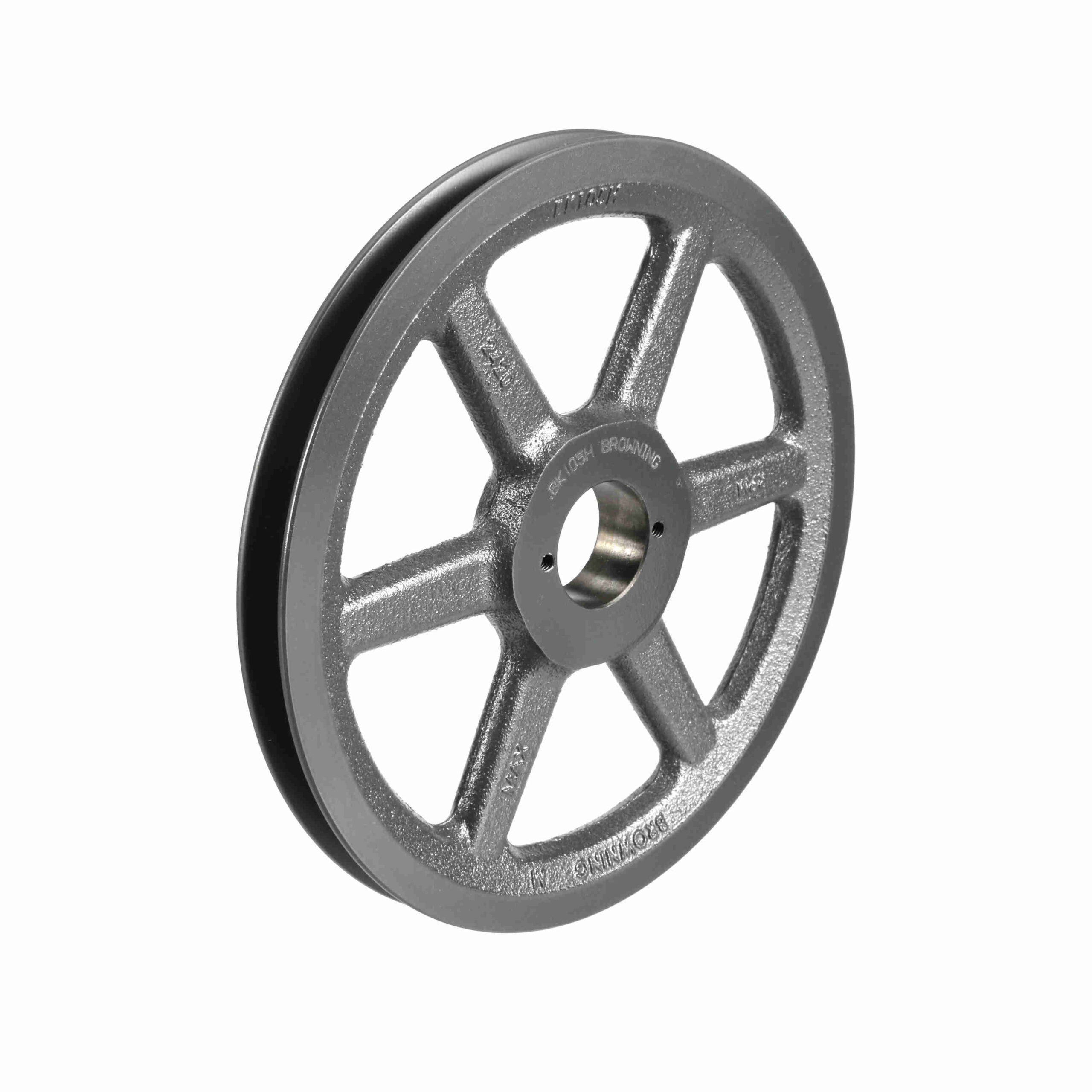

Browning 1 Groove Cast Iron FHP – Bushed Sheave – BK110H
$150.64
Availability: 40 in stock
Availability: 40 in stock
| Material: | Cast Iron | Number of Grooves: | 1 |
|---|---|---|---|
| Datum Diameter (A): | 10 | Pitch Diameter (B): | 10.7 |
| Type of Bore: | Bushed | Datum Diameter (B): | 10.4 |
| Model Name: | BKH_Sheave_Master | Pitch Diameter (A): | 10.2 |
| Product Type: | FHP - Bushed | Outside Diameter (in): | 10.75 in |
| Bore (Min) (in): | 0.375 in | Outside Length (in): | 1.5625 in |
| Belt Section: | 4L or A, 5L or B | Bore Type: | Split Taper Bushed |
| Face Width (in): | 0.875 | Pulley Construction: | Plain |
| Bushing Bore Range: | 0.375 - 1.500 | Overall Width (in): | 1.5625 |
| UPC: | 662289142422 | Weight: | 7.60 LB |
| Packaged Length: | 11.20 Inches | Packaged Width: | 11.30 Inches |
| Packaged Height: | 1.40 Inches | HTC: | 8483.50.9040 |
| Country of Origin: | Mexico |
