- Unmatched Quality and Performance in Morse Brand Chain
- Far exceeds ANSI performance standards. Rigid manufacturing processes result in a fully-featured chain.
- Available in package quantities or via quick-turnaround cut-to-length
80R 10FT

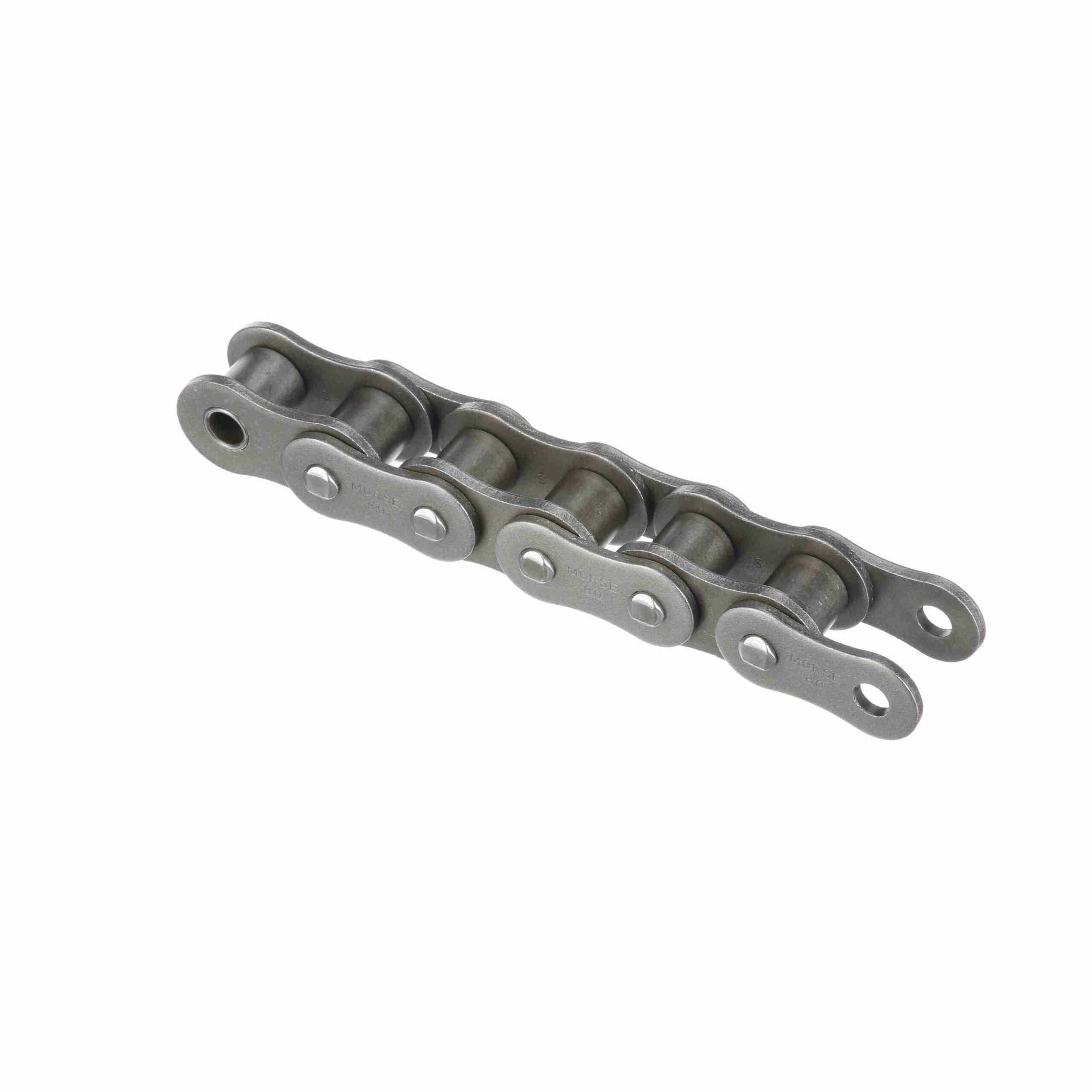

Morse Standard Riveted Roller Chain – 80R 10FT
$23.71
Out of stock
Out of stock
| Average Ultimate Tensile Strength (psi): | 14, 500 | Centerline to Opposite cotter Pin Side: | 0.637 |
|---|---|---|---|
| Roller Width (in): | 0.625 in | Width Over Pins/Total Width: | 1.274 |
| Number of Connecting Links Included: | 1 | Number of Strands/Width: | 1 |
| Roller Diameter (in): | 0.625 in | Chain Construction: | Riveted |
| Centerline to Outside of cotter Pin: | 0.741 | Chain Size: | 80 |
| Inside Plate Height: | 0.934 | Material: | Steel |
| Pin Diameter (in): | 0.312 in | Plate Thickness: | 0.125 |
| Side Plate Cfg.: | Hourglass | Chain Type: | Standard |
| Chain Pitch (in): | 1 in | Product Type: | Roller Chain |
| Coating: | Uncoated | Total Length: | 10 FT ft |
| Standard Met: | ANSI B29.1 | Measurement System: | Imperial |
| Pin Length - Riveted: | 1.274 | UPC: | 662288395232 |
| Weight: | 1.85 LB | Packaged Length: | 11.7 Inches |
| Packaged Width: | 11.3 Inches | Packaged Height: | 1.6 Inches |
| HTC: | 7315.11.0060 | Country of Origin: | Taiwan, Republic of China |
