- Unmatched Quality and Performance in Morse Brand Chain
- Far exceeds ANSI performance standards. Rigid manufacturing processes result in a fully-featured chain.
- Available in package quantities or via quick-turnaround cut-to-length
50R 10FT

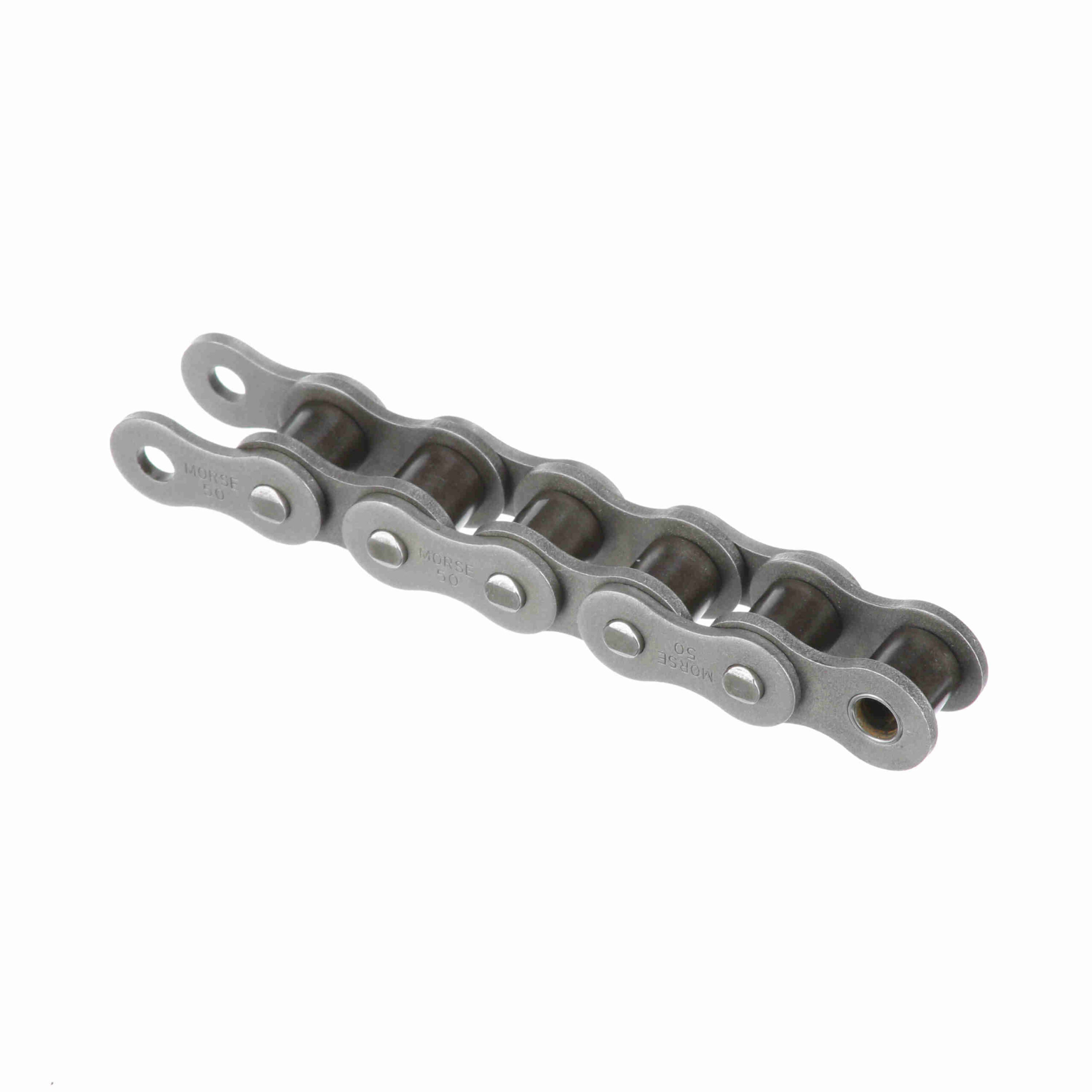

Morse Standard Riveted Roller Chain – 50R 10FT
$8.30
Out of stock
Out of stock
| Side Plate Cfg.: | Hourglass | Width Over Pins/Total Width: | 0.79 |
|---|---|---|---|
| Chain Size: | 50 | Average Ultimate Tensile Strength (psi): | 6, 100 |
| Roller Diameter (in): | 0.4 in | Inside Plate Height: | 0.584 |
| Roller Width (in): | 0.375 in | Centerline to Opposite cotter Pin Side: | 0.395 |
| Number of Strands/Width: | 1 | Number of Connecting Links Included: | 1 |
| Material: | Steel | Plate Thickness: | 0.08 |
| Centerline to Outside of cotter Pin: | 0.46 | Chain Construction: | Riveted |
| Pin Diameter (in): | 0.2 in | Chain Pitch (in): | 0.625 in |
| Chain Type: | Standard | Product Type: | Roller Chain |
| Total Length: | 10 FT ft | Coating: | Uncoated |
| Standard Met: | ANSI B29.1 | Measurement System: | Imperial |
| Pin Length - Riveted: | 0.79 | UPC: | 662288395096 |
| Weight: | 0.76 LB | Packaged Length: | 9.2 Inches |
| Packaged Width: | 9.3 Inches | Packaged Height: | 1.5 Inches |
| HTC: | 7315.11.0060 | Country of Origin: | Taiwan, Republic of China |
