- Unmatched Quality and Performance in Morse Brand Chain
- Far exceeds ANSI performance standards. Rigid manufacturing processes result in a fully-featured chain.
- Available in package quantities or via quick-turnaround cut-to-length
40R 10FT

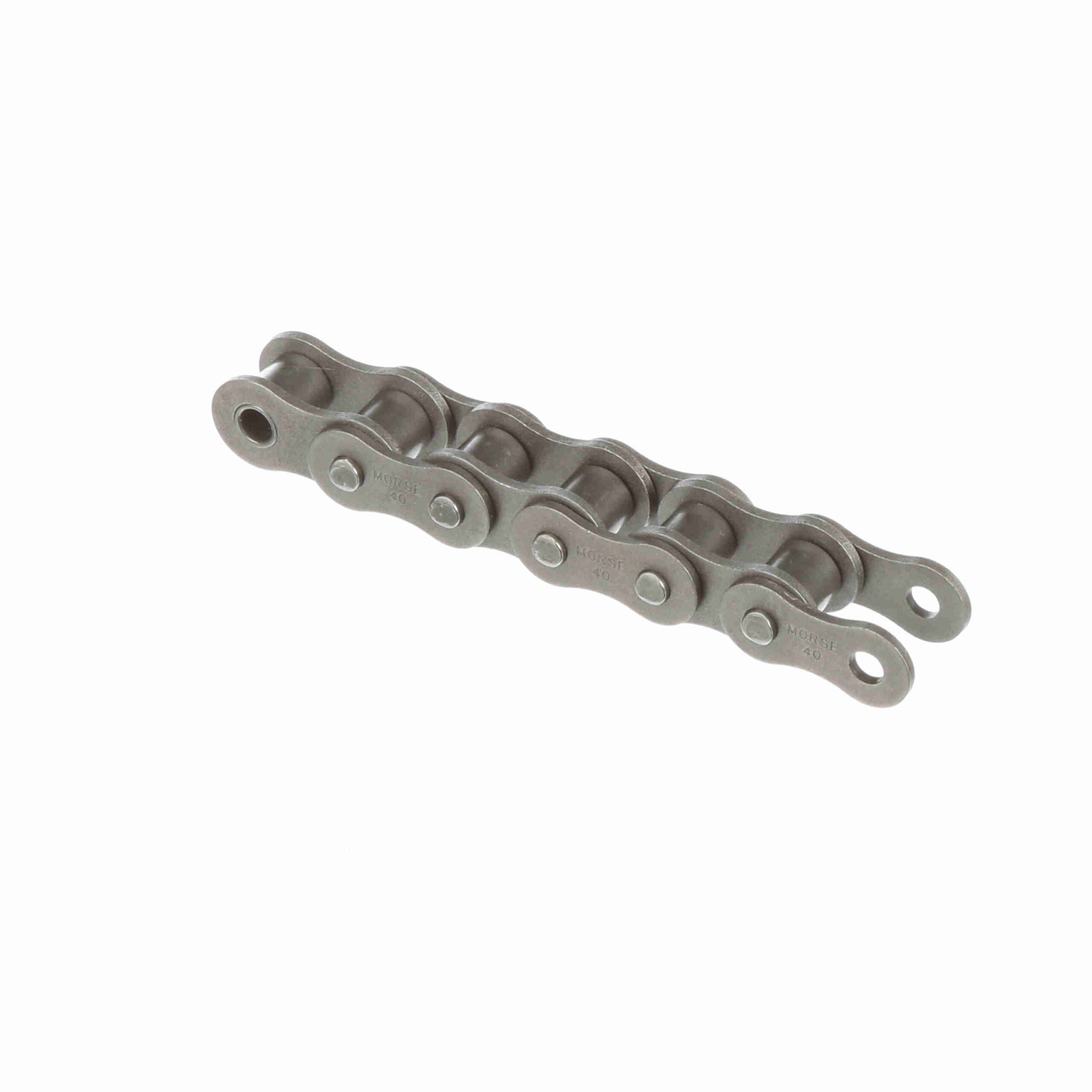

Morse Standard Riveted Roller Chain – 40R 10FT
$6.56
Out of stock
Out of stock
| Roller Width (in): | 0.3125 in | Plate Thickness: | 0.06 |
|---|---|---|---|
| Pin Diameter (in): | 0.156 in | Width Over Pins/Total Width: | 0.63 |
| Centerline to Outside of cotter Pin: | 0.38 | Roller Diameter (in): | 0.312 in |
| Number of Connecting Links Included: | 1 | Centerline to Opposite cotter Pin Side: | 0.315 |
| Side Plate Cfg.: | Hourglass | Inside Plate Height: | 0.466 |
| Chain Size: | 40 | Material: | Steel |
| Number of Strands/Width: | 1 | Average Ultimate Tensile Strength (psi): | 3, 700 |
| Chain Construction: | Riveted | Total Length: | 10 FT ft |
| Chain Pitch (in): | 0.5 in | Product Type: | Roller Chain |
| Chain Type: | Standard | Coating: | Uncoated |
| Standard Met: | ANSI B29.1 | Measurement System: | Imperial |
| Pin Length - Riveted: | 0.63 | UPC: | 662288395058 |
| Weight: | 0.44 LB | Packaged Length: | 9.2 Inches |
| Packaged Width: | 9.3 Inches | Packaged Height: | 1.2 Inches |
| HTC: | 7315.11.0060 | Country of Origin: | Taiwan, Republic of China |
