- Exceptional Quality and Performance in Browning Chain
- Meets ANSI performance standards. Rigid manufacturing processes result in a fully-featured chain.
- Available from Stock
J50 RIV 10 FT CH

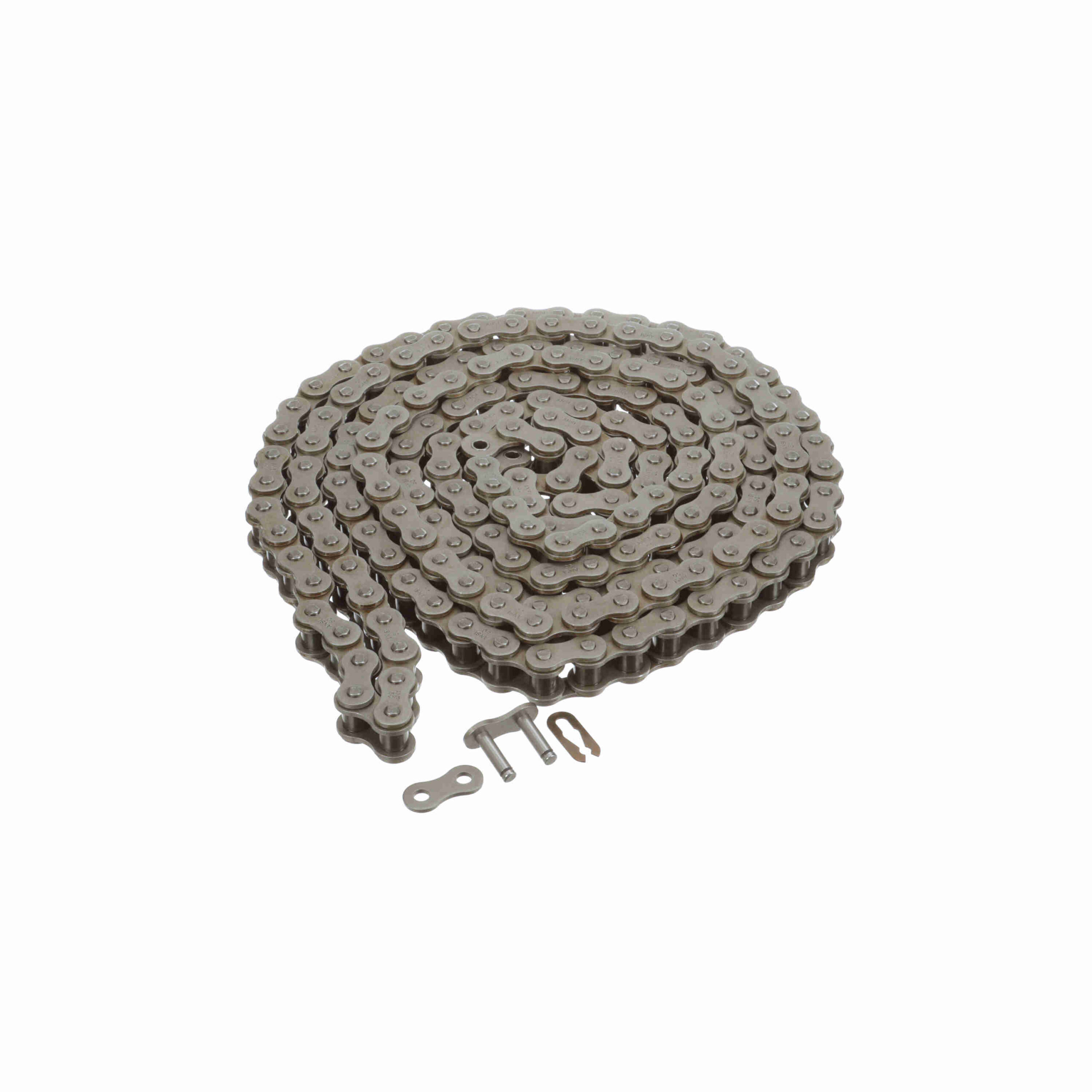

Browning Standard Riveted Roller Chain – J50 RIV 10 FT CH
Out of stock
| Chain Size: | 50 | Chain Construction: | Riveted |
|---|---|---|---|
| Pin Diameter (in): | 0.2 in | Inside Plate Height: | 0.584 |
| Number of Strands/Width: | 1 | Average Ultimate Tensile Strength (psi): | 6, 100 |
| Plate Thickness: | 0.08 | Centerline to Outside of cotter Pin: | 0.46 |
| Roller Width (in): | 0.375 in | Centerline to Opposite cotter Pin Side: | 0.395 |
| Roller Diameter (in): | 0.4 in | Material: | Steel |
| Chain Pitch (in): | 0.625 in | Product Type: | Roller Chain |
| Chain Type: | Standard | Width Over Pins/Total Width: | 0.86 |
| Total Length: | 10 ft | Coating: | Uncoated |
| Measurement System: | Imperial | Standard Met: | ANSI B29.1 |
| Pin Length - Riveted: | 0.799 | UPC: | 662289233557 |
| Weight: | 0.74 LB | Packaged Length: | 8.90 Inches |
| Packaged Width: | 8.70 Inches | Packaged Height: | 1.30 Inches |
| HTC: | 7315.11.0060 | Country of Origin: | Thailand |
