- Unmatched Quality and Performance in Morse Brand Chain
- Far exceeds ANSI performance standards. Rigid manufacturing processes result in a fully-featured chain.
- Available in package quantities or via quick-turnaround cut-to-length
50R 100FT

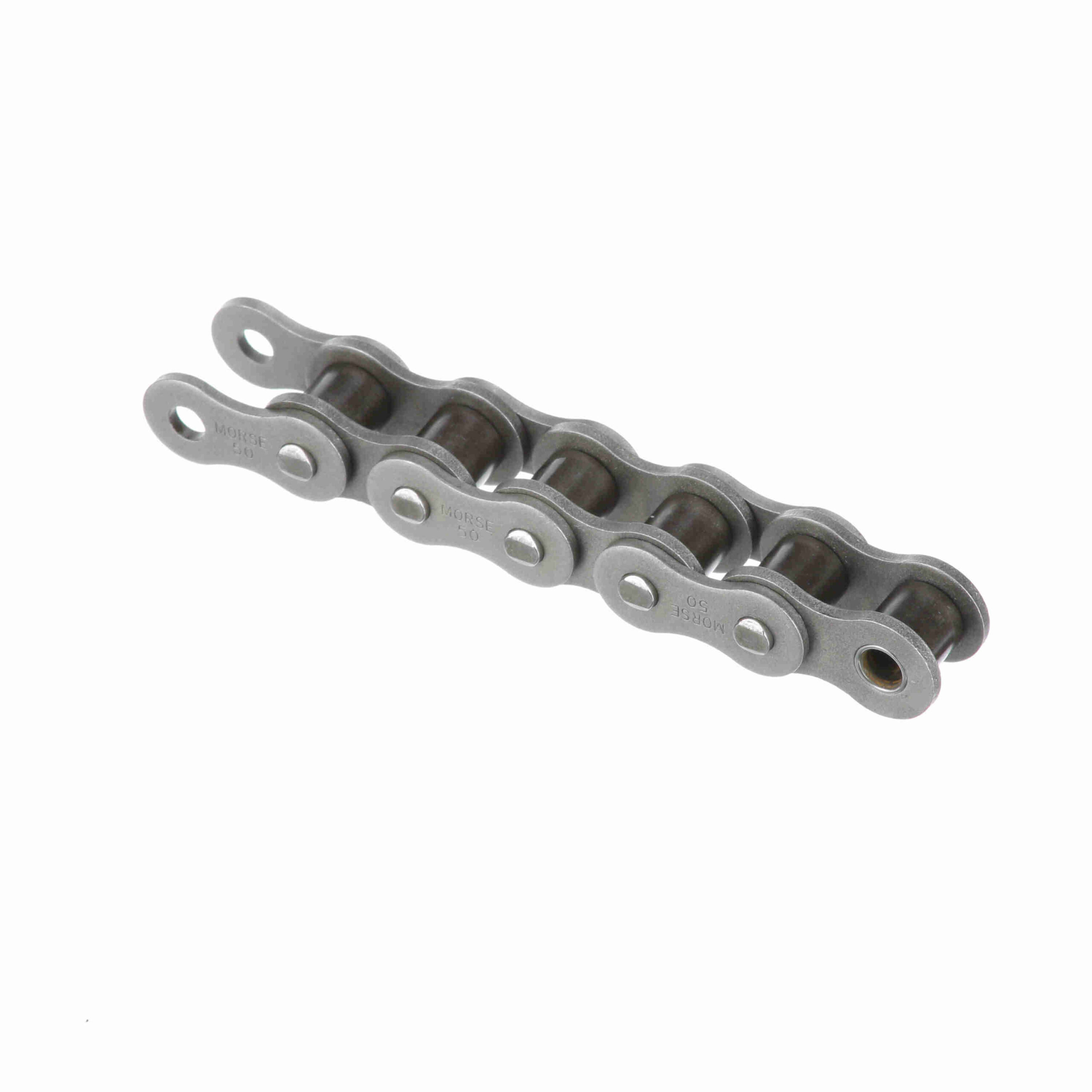

Morse Standard Riveted Roller Chain – 50R 100FT
$7.90
Out of stock
Out of stock
| Average Ultimate Tensile Strength (psi): | 6, 100 | Number of Connecting Links Included: | 10 |
|---|---|---|---|
| Width Over Pins/Total Width: | 0.79 | Chain Construction: | Riveted |
| Plate Thickness: | 0.08 | Number of Strands/Width: | 1 |
| Centerline to Outside of cotter Pin: | 0.46 | Material: | Steel |
| Side Plate Cfg.: | Hourglass | Pin Diameter (in): | 0.2 in |
| Centerline to Opposite cotter Pin Side: | 0.395 | Roller Width (in): | 0.375 in |
| Roller Diameter (in): | 0.4 in | Chain Size: | 50 |
| Inside Plate Height: | 0.584 | Chain Pitch (in): | 0.625 in |
| Product Type: | Roller Chain | Chain Type: | Standard |
| Coating: | Uncoated | Total Length: | 100 FT ft |
| Standard Met: | ANSI B29.1 | Measurement System: | Imperial |
| Pin Length - Riveted: | 0.79 | UPC: | 662288395119 |
| Weight: | 0.72 LB | Packaged Length: | 11.2 Inches |
| Packaged Width: | 11.0 Inches | Packaged Height: | 11.1 Inches |
| HTC: | 7315.11.0060 | Country of Origin: | Taiwan, Republic of China |
