- Unmatched Quality and Performance in Morse Brand Chain
- Far exceeds ANSI performance standards. Rigid manufacturing processes result in a fully-featured chain.
- Available from Stock
60 O/L

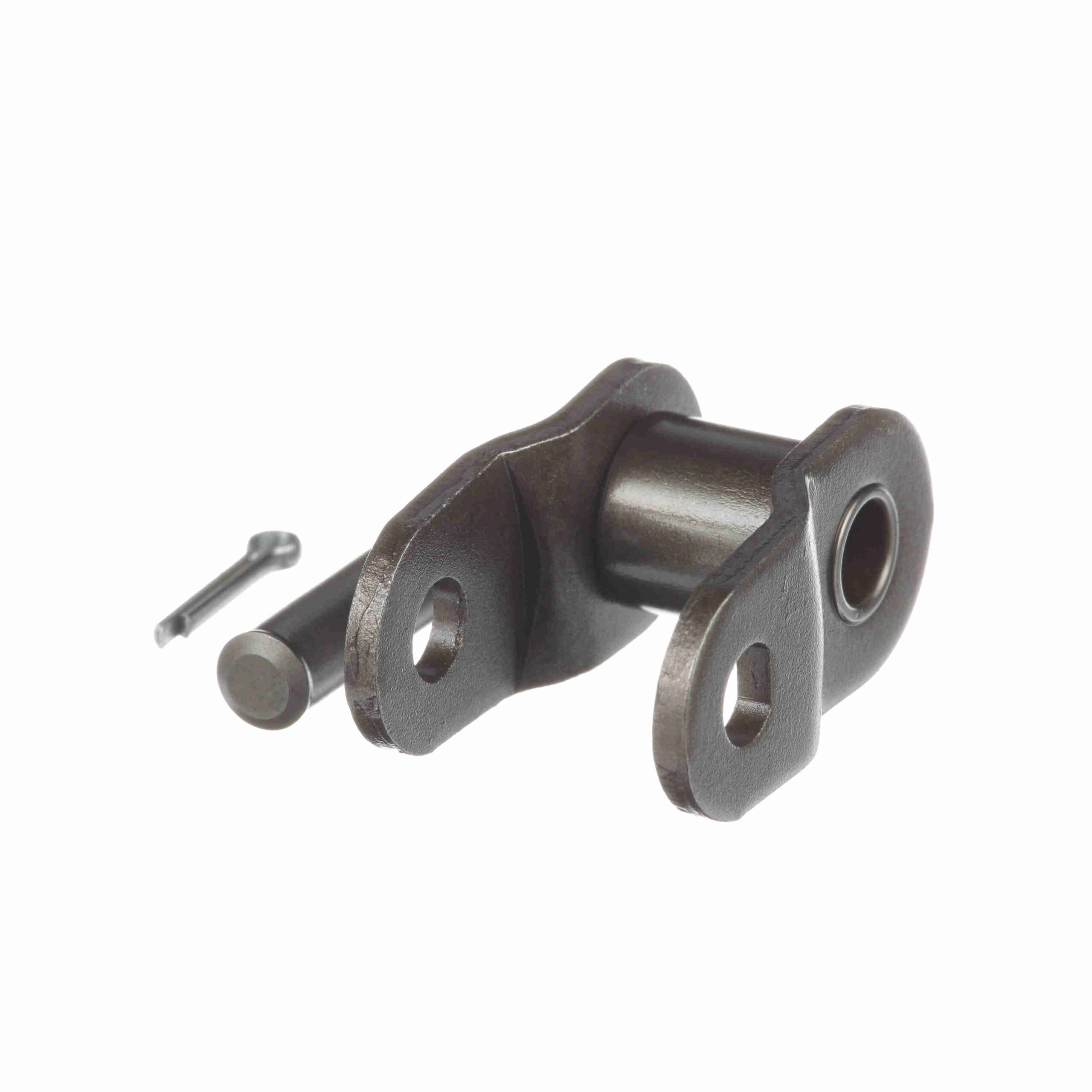

Morse Standard Roller Chain Offset Link – 60 O/L
$6.65
Out of stock
Out of stock
| Average Ultimate Tensile Strength (psi): | 8, 500 | Side Plate Cfg.: | Hourglass |
|---|---|---|---|
| Single Pitch Offset Link: | Cottered | Material: | Steel |
| Plate Thickness: | 0.094 | Centerline to Outside of cotter Pin: | 0.586 |
| Inside Plate Height: | 0.7 | Chain Size: | 60 |
| Roller Diameter (in): | 0.468 in | Roller Width (in): | 0.5 in |
| Number of Strands/Width: | 1 | Pin Diameter (in): | 0.234 in |
| Centerline to Opposite cotter Pin Side: | 0.495 | Width Over Pins/Total Width: | 0.99 |
| Chain Pitch (in): | 0.75 in | Product Type: | Roller Chain |
| Chain Type: | Standard | Link Type: | Offset Link |
| UPC: | 662288395539 | Weight: | 0.07 LB |
| Packaged Length: | 3.10 Inches | Packaged Width: | 2.35 Inches |
| Packaged Height: | 1.00 Inches | HTC: | 7315.19.0000 |
| Country of Origin: | Taiwan, Republic of China |
