- Unmatched Quality and Performance in Morse Brand Chain
- All components are plated before assembly
- Available in package quantities or via quick-turnaround cut-to-length
- The strength of carbon steel with corrosion protection
80MG R 10FT

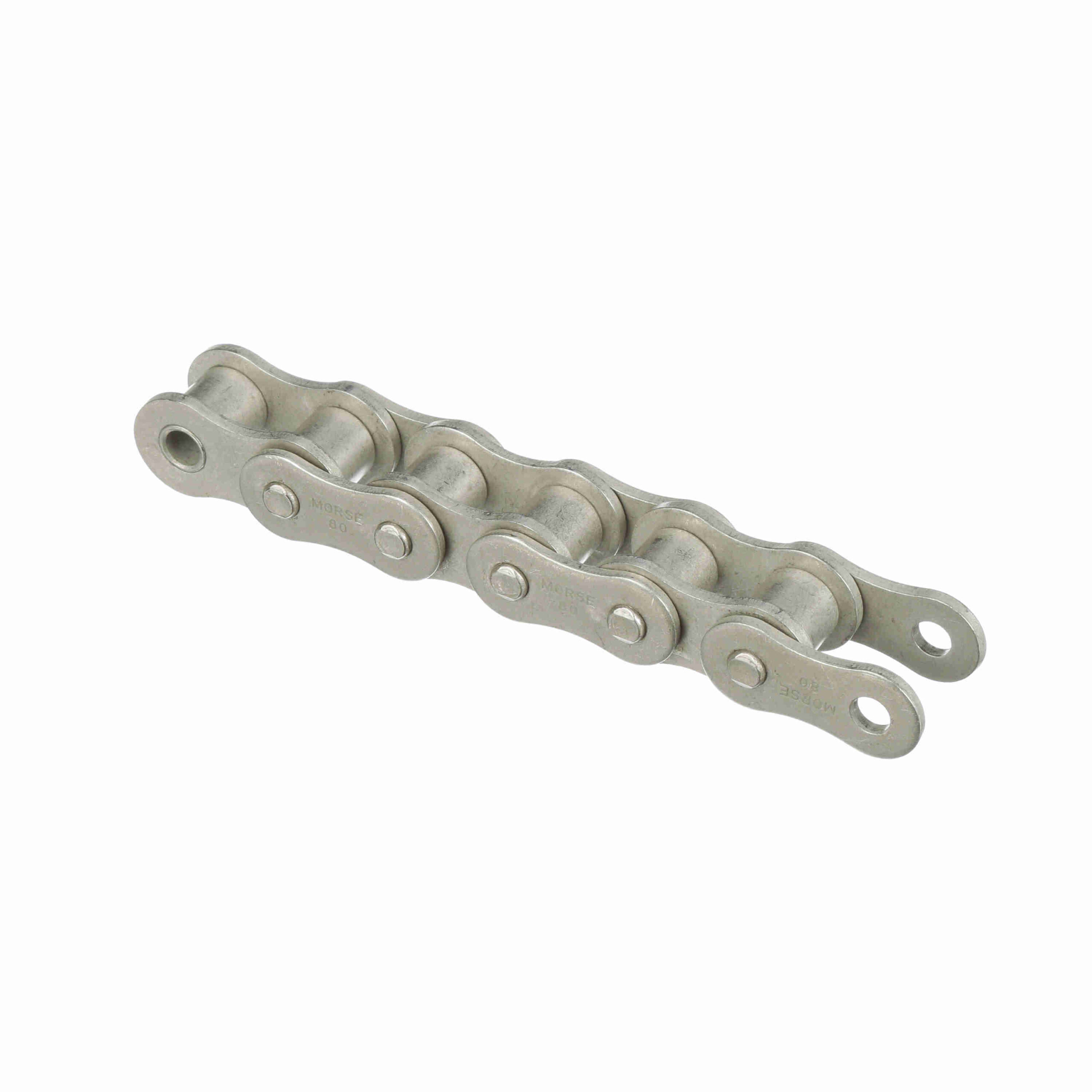

Morse Moisture Guard Riveted Roller Chain – 80MG R 10FT
$139.61
Out of stock
Out of stock
| Chain Size: | 80 | Pin Diameter (in): | 0.312 in |
|---|---|---|---|
| Width Over Pins/Total Width: | 1.274 | Number of Connecting Links Included: | 1 |
| Material: | Steel | Centerline to Opposite cotter Pin Side: | 0.637 |
| Number of Strands/Width: | 1 | Inside Plate Height: | 0.934 |
| Plate Thickness: | 0.125 | Coating: | Moisture Guard |
| Chain Construction: | Riveted | Side Plate Cfg.: | Hourglass |
| Average Ultimate Tensile Strength (psi): | 14, 500 | Roller Diameter (in): | 0.625 in |
| Roller Width (in): | 0.625 in | Centerline to Outside of cotter Pin: | 0.741 |
| Chain Pitch (in): | 1 in | Chain Type: | Moisture Guard |
| Product Type: | Roller Chain | Total Length: | 10 FT ft |
| Measurement System: | Imperial | Standard Met: | ANSI B29.1 |
| Pin Length - Riveted: | 1.274 | UPC: | 662288806042 |
| Weight: | 1.75 LB | Packaged Length: | 11.50 Inches |
| Packaged Width: | 11.60 Inches | Packaged Height: | 1.90 Inches |
| HTC: | 7315.11.0060 | Country of Origin: | Taiwan, Republic of China |
