- Unmatched Quality and Performance in Morse Brand Chain
- Far exceeds ANSI performance standards. Rigid manufacturing processes result in a fully-featured chain.
- Available in package quantities or via quick-turnaround cut-to-length
120R 10FT

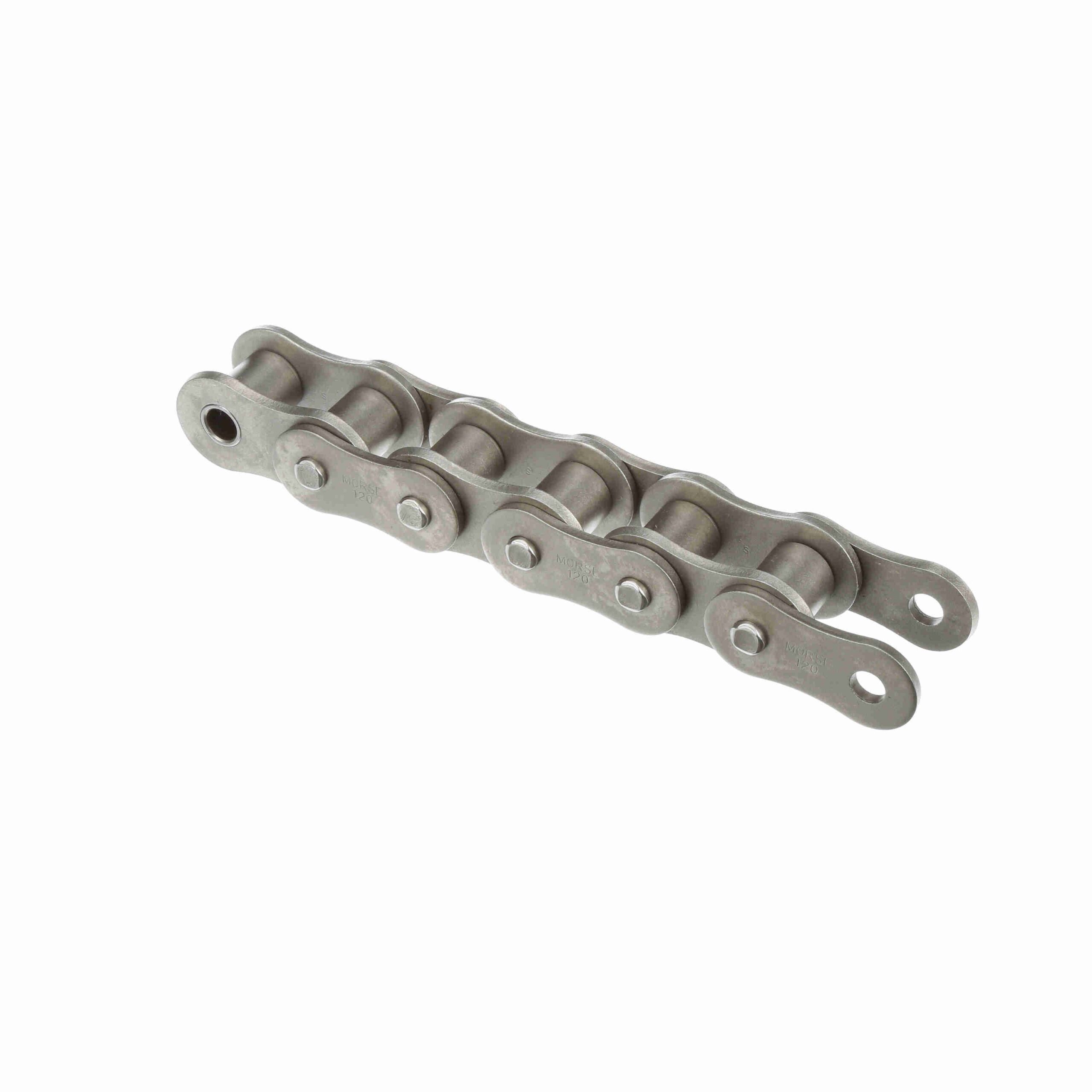

Morse Standard Riveted Roller Chain – 120R 10FT
$57.32
Out of stock
Out of stock
| Centerline to Opposite cotter Pin Side: | 0.98 | Side Plate Cfg.: | Hourglass |
|---|---|---|---|
| Centerline to Outside of cotter Pin: | 1.15 | Inside Plate Height: | 1.4 |
| Material: | Steel | Chain Construction: | Riveted |
| Chain Size: | 120 | Pin Diameter (in): | 0.437 in |
| Number of Strands/Width: | 1 | Width Over Pins/Total Width: | 1.96 |
| Number of Connecting Links Included: | 1 | Roller Width (in): | 1 in |
| Plate Thickness: | 0.187 | Roller Diameter (in): | 0.875 in |
| Average Ultimate Tensile Strength (psi): | 34, 000 | Chain Type: | Standard |
| Chain Pitch (in): | 1.5 in | Product Type: | Roller Chain |
| Total Length: | 10 FT ft | Coating: | Uncoated |
| Measurement System: | Imperial | Standard Met: | ANSI B29.1 |
| Pin Length - Riveted: | 1.96 | UPC: | 662288395300 |
| Weight: | 3.98 LB | Packaged Length: | 15.10 Inches |
| Packaged Width: | 14.90 Inches | Packaged Height: | 2.20 Inches |
| HTC: | 7315.11.0060 | Country of Origin: | Taiwan, Republic of China |
