- Unmatched Quality and Performance in Morse Brand Chain
- Far exceeds ANSI performance standards. Rigid manufacturing processes result in a fully-featured chain.
- Available from Stock
120 C/L C/P S/F

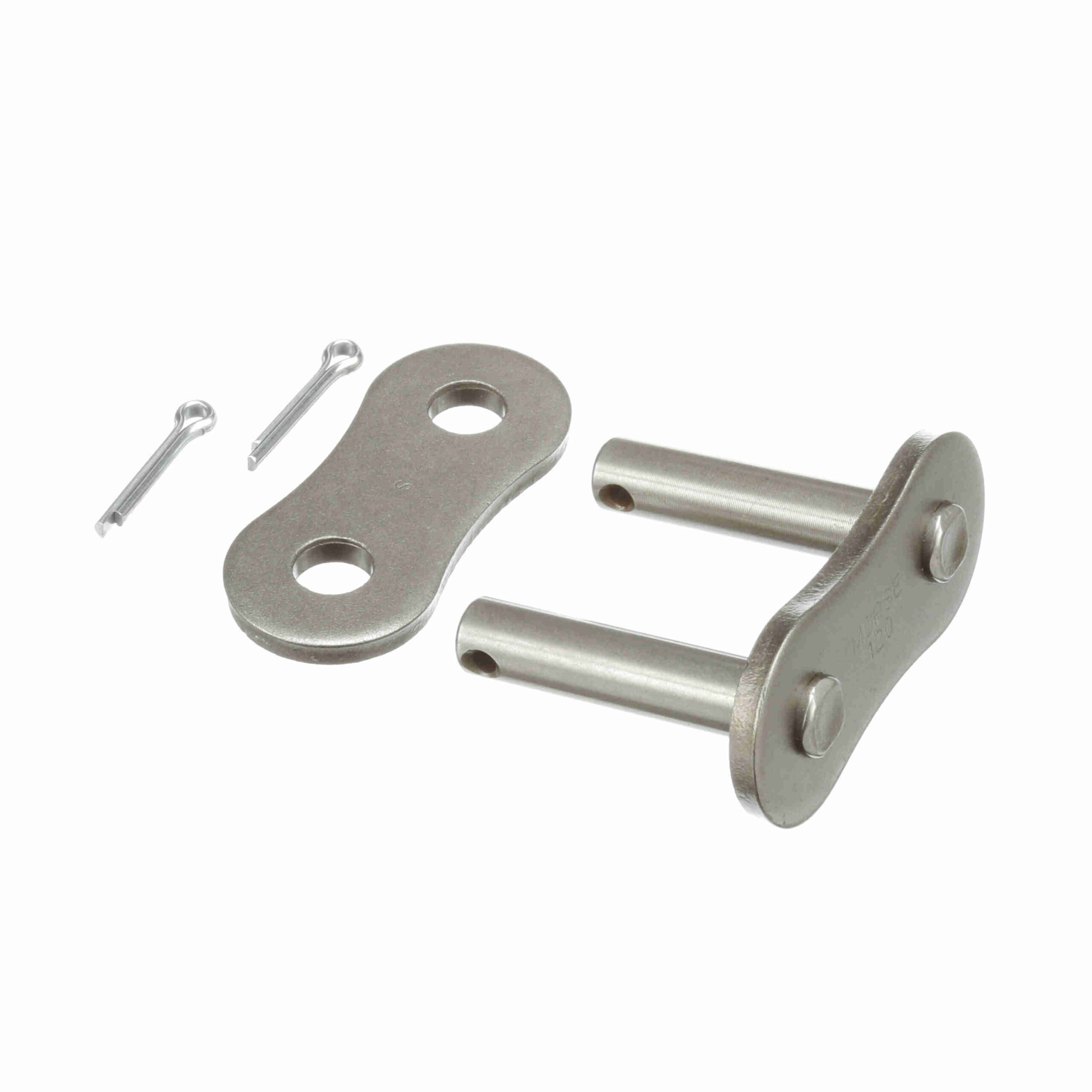

Morse Standard Roller Chain Cotter Pin Connecting Link – 120 C/L C/P S/F
$13.41
Out of stock
Out of stock
| Chain Size: | 120 | Pin Diameter (in): | 0.437 in |
|---|---|---|---|
| Average Ultimate Tensile Strength (psi): | 34, 000 | Number of Strands/Width: | 1 |
| Centerline to Outside of cotter Pin: | 1.15 | Plate Thickness: | 0.187 |
| Connecting Link - Slip Fit: | Cotter | Number of Connecting Links Included: | 5 |
| Width Over Pins/Total Width: | 1.96 | Roller Diameter (in): | 0.875 in |
| Roller Width (in): | 1 in | Side Plate Cfg.: | Hourglass |
| Centerline to Opposite cotter Pin Side: | 0.98 | Inside Plate Height: | 1.4 |
| Material: | Steel | Chain Pitch (in): | 1.5 in |
| Product Type: | Roller Chain | Chain Type: | Standard |
| Chain Construction: | Cottered | Link Type: | Connecting Link |
| UPC: | 662288468394 | Weight: | 0.85 LB |
| Packaged Length: | 3.25 Inches | Packaged Width: | 3.35 Inches |
| Packaged Height: | 1.55 Inches | HTC: | 7315.19.0000 |
| Country of Origin: | Taiwan, Republic of China |
