- Unmatched Quality and Performance in Morse Brand Chain
- Far exceeds ANSI performance standards. Rigid manufacturing processes result in a fully-featured chain.
- Available from Stock
60H C/L S/C S/F

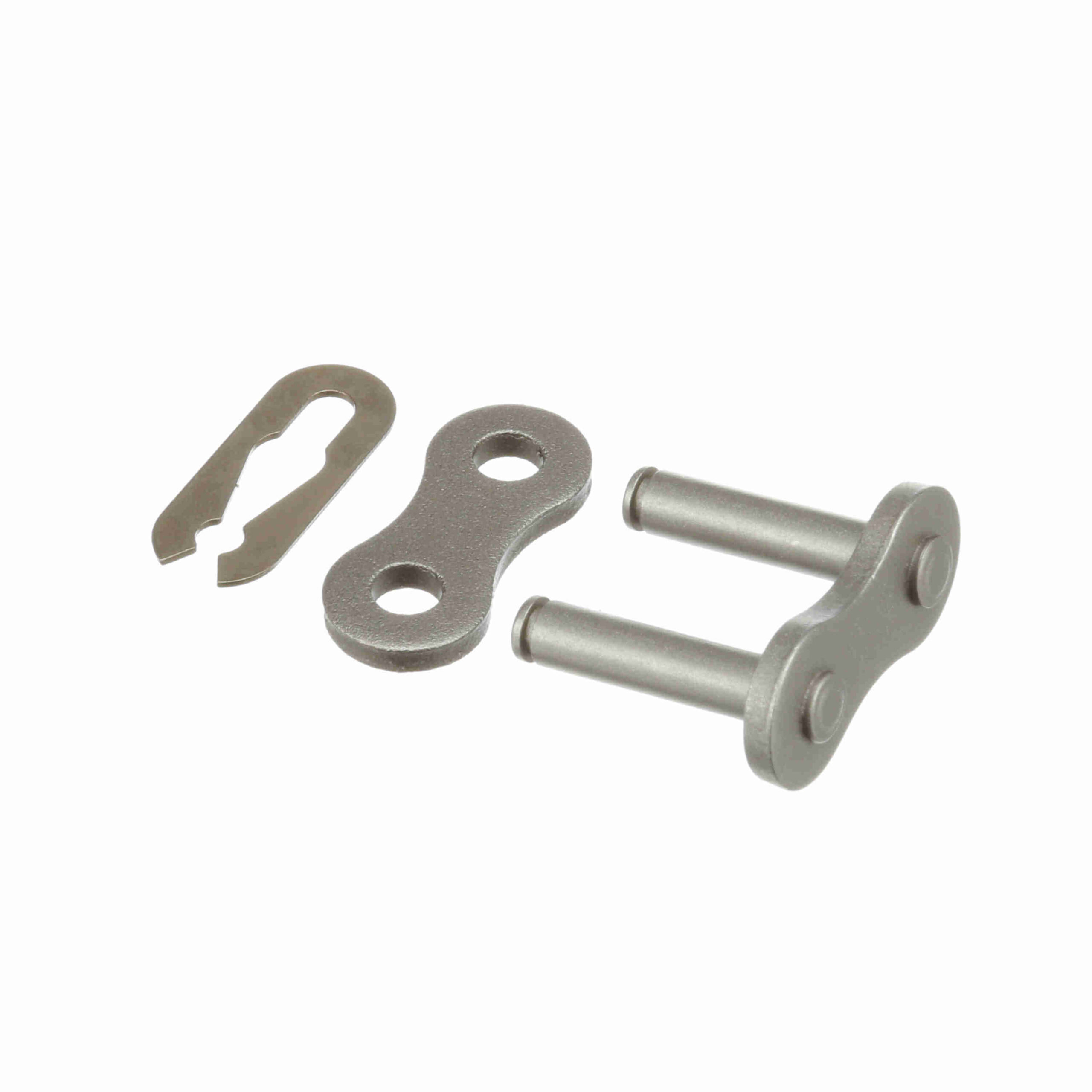

Morse Heavy Roller Chain Spring Clip Connecting Link – 60H C/L S/C S/F
$3.18
Out of stock
Out of stock
| Connecting Link - Slip Fit: | Spring Clip | Pin Diameter (in): | 0.234 in |
|---|---|---|---|
| Material: | Steel | Number of Connecting Links Included: | 1 |
| Number of Strands/Width: | 1 | Plate Thickness: | 0.125 |
| Chain Size: | 60 | Average Ultimate Tensile Strength (psi): | 8, 500 |
| Centerline to Opposite cotter Pin Side: | 0.558 | Centerline to Outside of cotter Pin: | 0.627 |
| Roller Width (in): | 0.5 in | Width Over Pins/Total Width: | 1.115 |
| Roller Diameter (in): | 0.468 in | Inside Plate Height: | 0.7 |
| Side Plate Cfg.: | Hourglass | Product Type: | Roller Chain |
| Chain Pitch (in): | 0.75 in | Chain Type: | Heavy |
| Chain Construction: | Spring Clip | Link Type: | Connecting Link |
| UPC: | 662288560081 | Weight: | 0.07 LB |
| Packaged Length: | 2.45 Inches | Packaged Width: | 2.05 Inches |
| Packaged Height: | 0.70 Inches | HTC: | 7315.19.0000 |
| Country of Origin: | Taiwan, Republic of China |
