- Incorporates Browning Split Taper Bushing – The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub.
- Combination Groove – All Browning B Sheaves permit the running of A& B Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers.
- Close Grain Cast iron – Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible.
5TB80

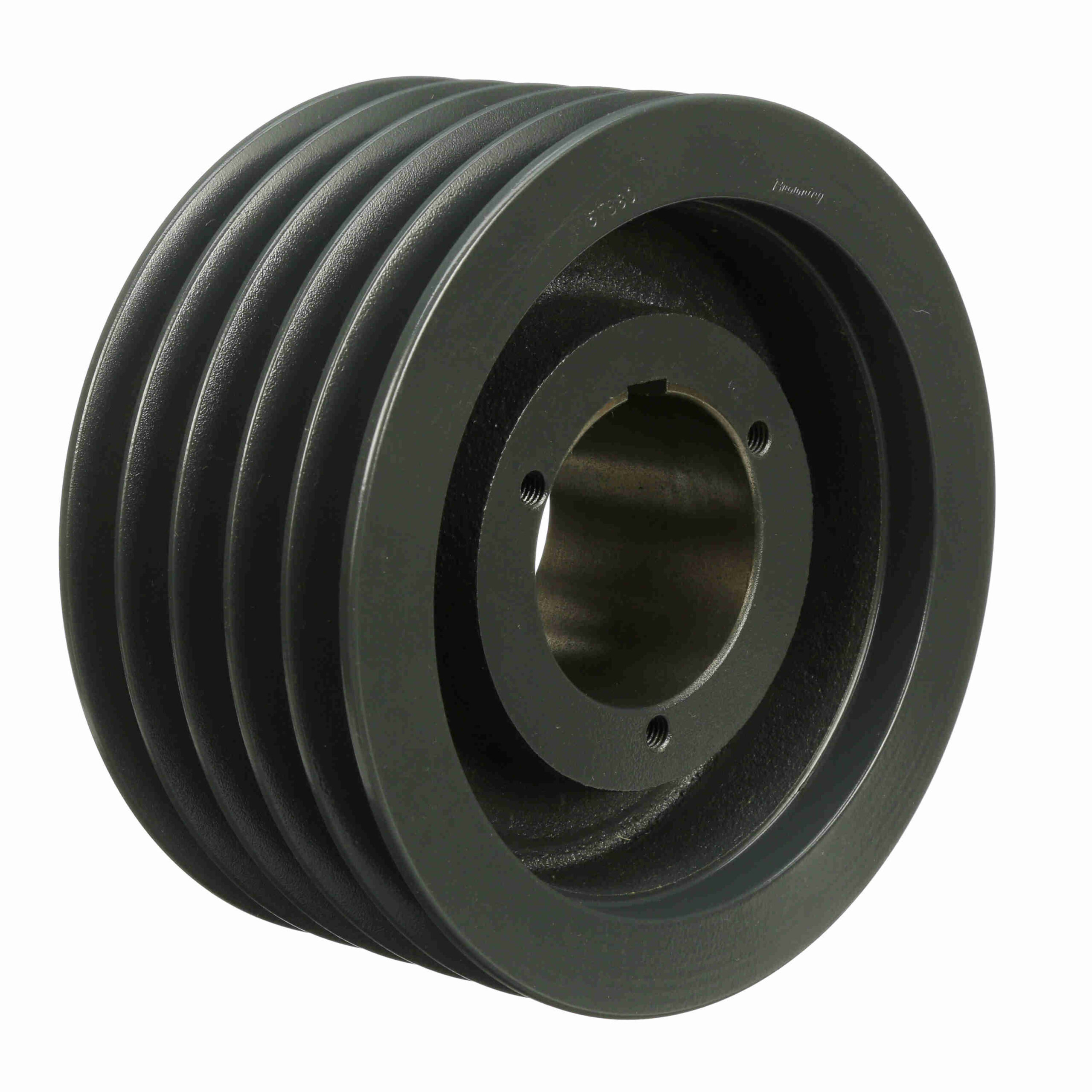

Browning 5 Groove Cast Iron Bushed Bore Multiple Sheave – 5TB80
$523.41
Out of stock
Out of stock
| Pulley Material: | Cast Iron | Overall Length (in): | 4.453125 in |
|---|---|---|---|
| Outside Diameter (in): | 8.35 in | Bushing Used: | Q2 |
| Material: | Cast Iron | Model Name: | 5TB-L_Sheave_Master |
| Number of Grooves: | 5 | Pitch Diameter (B): | 8.3 |
| Pitch Diameter (A): | 7.8 | Datum Diameter (A): | 7.6 |
| Datum Diameter (B): | 8 | Bore (Min) (in): | 1 in |
| Belt Section: | A, B | Product Type: | Multiple Sheaves |
| Bore Type: | Split Taper Bushed | Face Width (in): | 4 |
| Overall Width (in): | 4.40625 | Bushing Bore Range: | 1.000 - 2.625 |
| Pulley Construction: | Webbed | Keyway Size: | .500 |
| UPC: | 662289132058 | Weight: | 24.60 LB |
| Packaged Length: | 9.10 Inches | Packaged Width: | 9.10 Inches |
| Packaged Height: | 4.30 Inches | HTC: | 8483.50.9040 |
| Country of Origin: | Mexico |
