- Incorporates Browning Split Taper Bushing – The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub.
- Combination Groove – All Browning B Sheaves permit the running of A& B Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers.
- Close Grain Cast iron – Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible.
1TB38

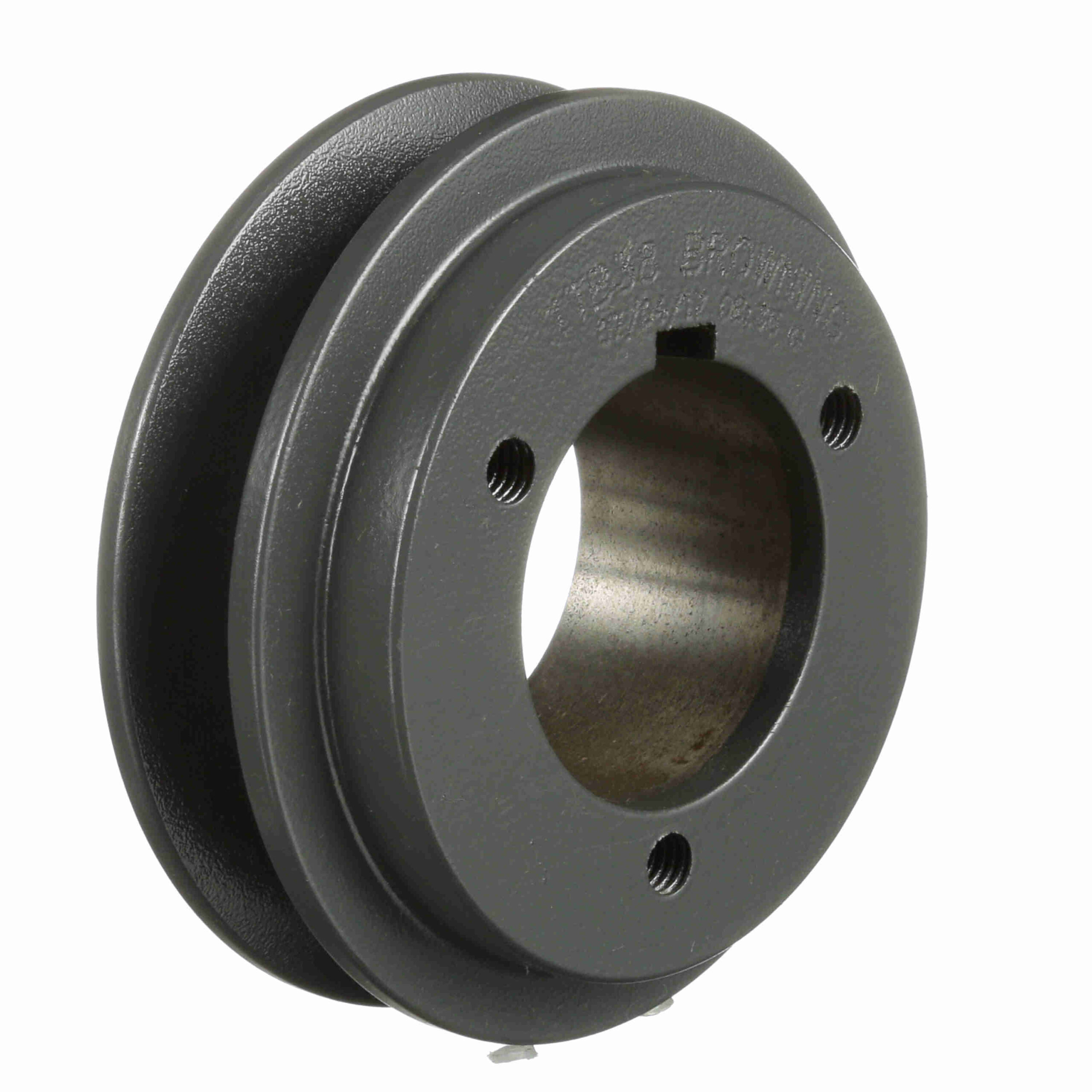

Browning 1 Groove Cast Iron Bushed Bore Multiple Sheave – 1TB38
$104.23
Out of stock
Out of stock
| Material: | Cast Iron | Number of Grooves: | 1 |
|---|---|---|---|
| Model Name: | 1TB-S_Sheave_Master | Pulley Material: | Cast Iron |
| Bushing Used: | P1 | Overall Length (in): | 2.265625 in |
| Outside Diameter (in): | 4.15 in | Pitch Diameter (A): | 3.6 |
| Pitch Diameter (B): | 4.1 | Datum Diameter (B): | 3.8 |
| Datum Diameter (A): | 3.4 | Belt Section: | A, B |
| Product Type: | Multiple Sheaves | Bore (Min) (in): | 0.5 in |
| Bore Type: | Split Taper Bushed | Face Width (in): | 1 |
| Keyway Size: | .375 | Bushing Bore Range: | 0.500 - 1.750 |
| Pulley Construction: | Plain | Overall Width (in): | 2.3125 |
| UPC: | 662289231171 | Weight: | 2.67 LB |
| Packaged Length: | 4.70 Inches | Packaged Width: | 4.70 Inches |
| Packaged Height: | 1.60 Inches | HTC: | 8483.50.9040 |
| Country of Origin: | Mexico |
