- Incorporates Browning Split Taper Bushing – The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub.
- Combination Groove – All Browning B Sheaves permit the running of A& B Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers.
- Close Grain Cast iron – Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible.

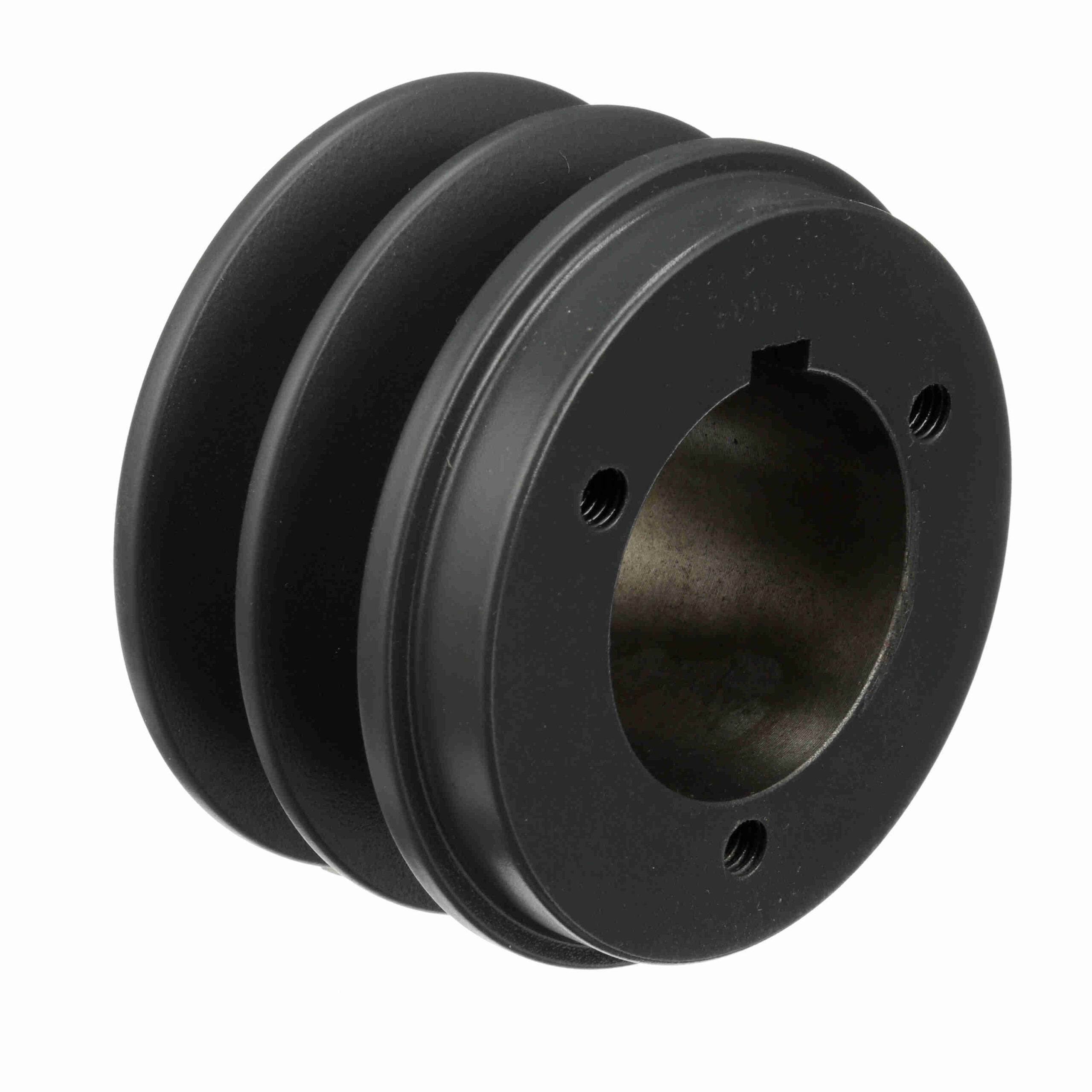

2TB34
Browning 2 Groove Cast Iron Bushed Bore Multiple Sheave – 2TB34
$79.53
Out of stock
Out of stock
| Overall Length (in): | 3.015625 in | Datum Diameter (B): | 3.4 |
|---|---|---|---|
| Material: | Cast Iron | Datum Diameter (A): | 3 |
| Outside Diameter (in): | 3.75 in | Bushing Used: | P1 |
| Pitch Diameter (A): | 3.2 | Pitch Diameter (B): | 3.7 |
| Model Name: | 2TB-S_Sheave_Master | Pulley Material: | Cast Iron |
| Number of Grooves: | 2 | Product Type: | Multiple Sheaves |
| Belt Section: | A, B | Bore (Min) (in): | 0.5 in |
| Bore Type: | Split Taper Bushed | Bushing Bore Range: | 0.500 - 1.750 |
| Overall Width (in): | 3.0625 | Pulley Construction: | Plain |
| Face Width (in): | 1.75 | Keyway Size: | .375 |
| UPC: | 662289310197 | Weight: | 2.29 LB |
| Packaged Length: | 4.40 Inches | Packaged Width: | 4.70 Inches |
| Packaged Height: | 2.60 Inches | HTC: | 8483.50.9040 |
| Country of Origin: | Mexico |
