- Large Selection – MVP companion sheaves are offered in A/B, C, 5V & 8V belt sections and from 3-10 grooves giving Browning the largest selection of MVP Companion Sheaves in the industry.
- Statically Balanced – All MVP companion sheaves are statically balanced to assure smooth, vibration free performance.
- VP sheaves consist of a male with a threaded barrel, and a female with a threaded bore.
- The male section with threaded barrel has flat surfaces at 180 degree increments that allow a flat surface for the setscrew to mate with.
- When discs are moved toward each other, the belt rides higher in the groove and the pitch diameter of the sheave is larger which increases the driven speed.
- When discs are moved away from each other, the belt rides lower and the pitch diameter is smaller decreasing the driven speed.
2MVP70B84P

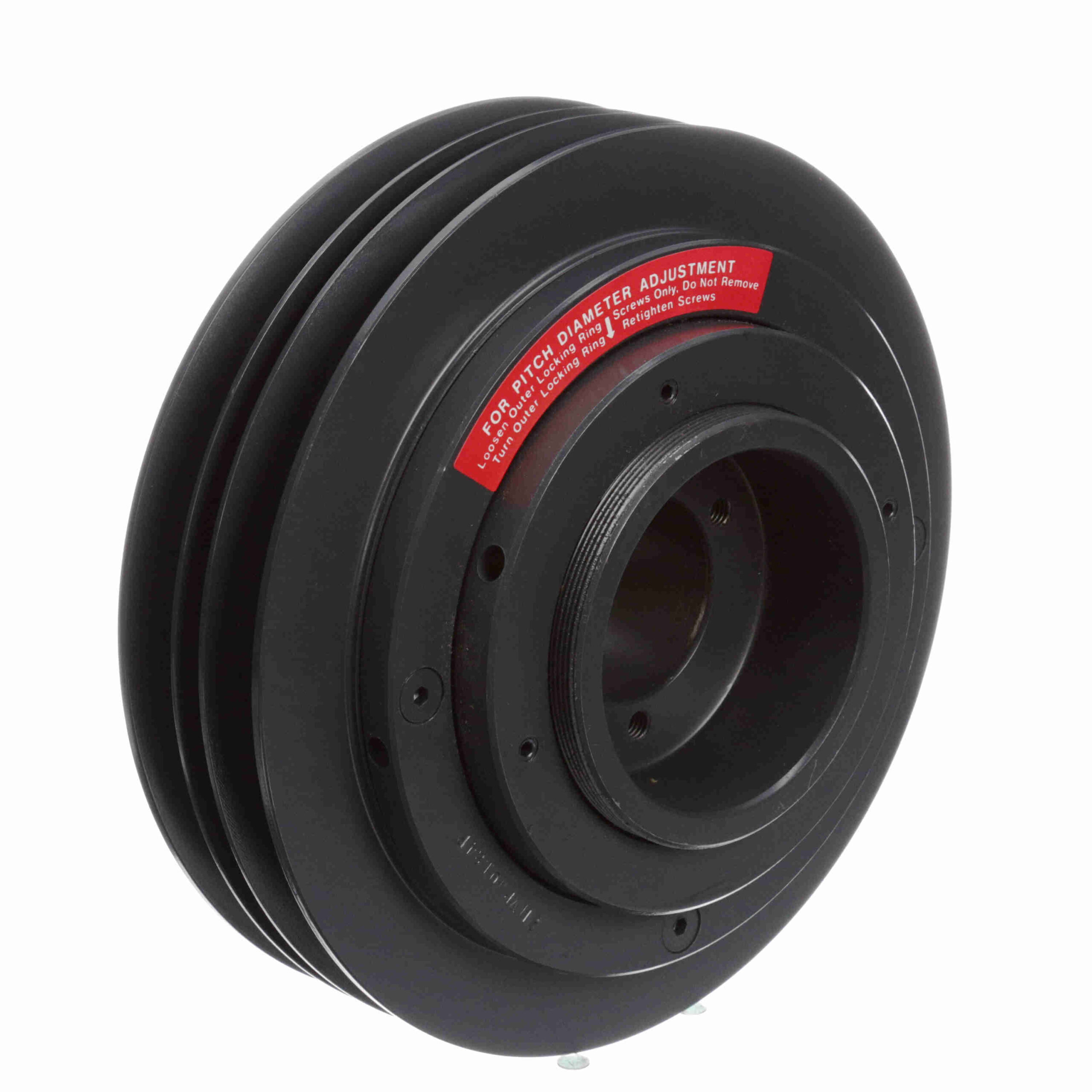

Browning 2 Groove Cast Iron Bushed Bore Multiple Variable Pitch Sheave – 2MVP70B84P
$962.19
Availability: 6 in stock
Availability: 6 in stock
| Face Width (Max) (in): | 2.3125 in | Pitch Diameter Range (B): | 8.7 - 7.3 |
|---|---|---|---|
| Face Width (Min) (in): | 1.9375 in | Ring: | 5.375 |
| Number of Grooves: | 2 | Type of Bore: | Bushed |
| Product Type: | MVP Sheaves | Outside Length (in): | 3.625 in |
| Bore (Min) (in): | 0.75 in | Pitch Diameter Range (A): | 8.2 - 7.1 |
| Outside Diameter (in): | 8.68 in | Material: | Cast Iron |
| Belt Section: | A, B | Bore (Max) (in): | 1.75 in |
| Bushing Used: | P2 | UPC: | 662289124725 |
| Weight: | 27.99 LB | Packaged Length: | 9.20 Inches |
| Packaged Width: | 9.20 Inches | Packaged Height: | 9.10 Inches |
| HTC: | 8483.50.9040 | Country of Origin: | United States of America |
