- Incorporates Browning Split Taper Bushing – The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub.
- Combination Groove – All Browning B Sheaves permit the running of A& B Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers.
- Close Grain Cast iron – Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible.
3TB56

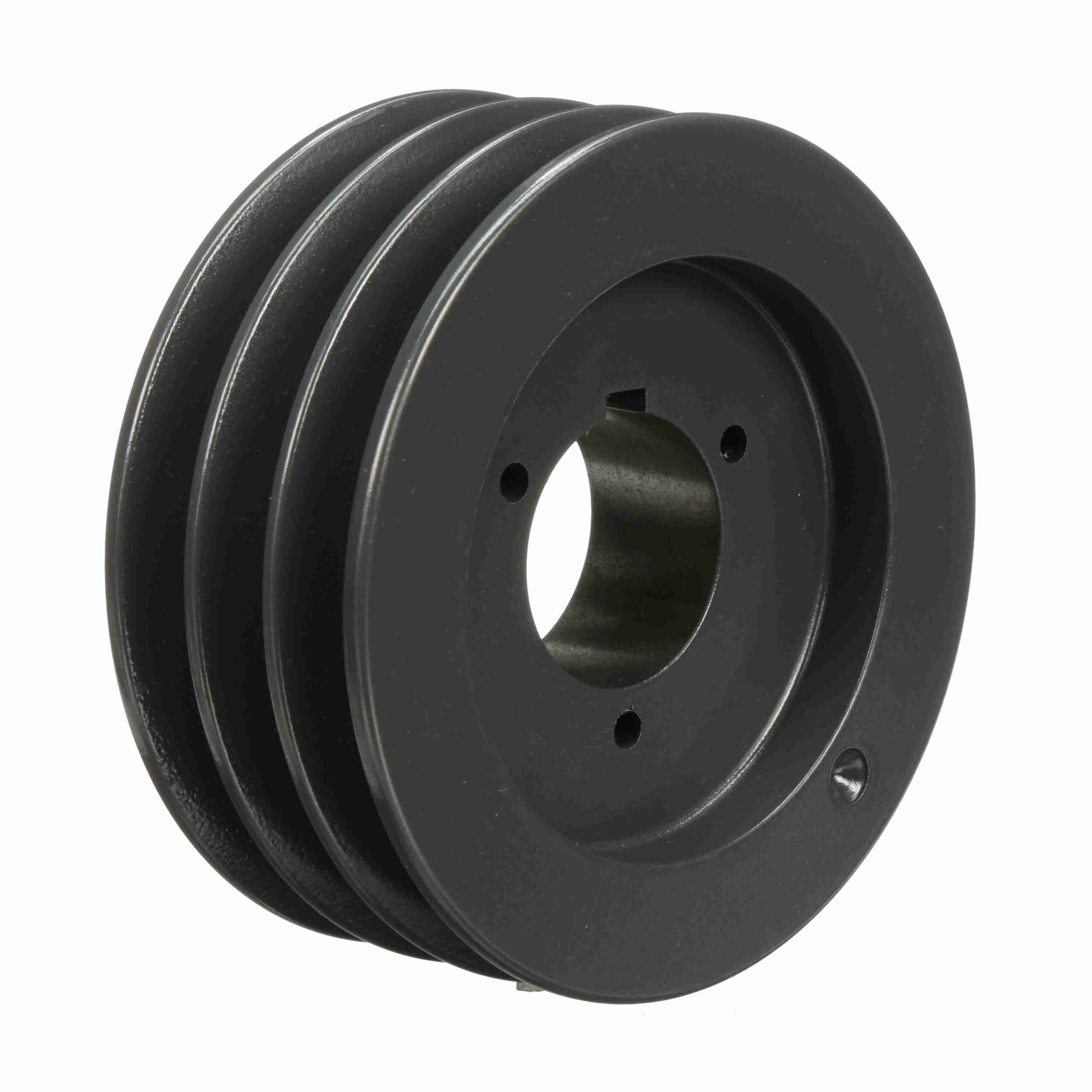

Browning 3 Groove Cast Iron Bushed Bore Multiple Sheave – 3TB56
$213.71
Out of stock
Out of stock
| Outside Diameter (in): | 5.95 in | Pitch Diameter (B): | 5.9 |
|---|---|---|---|
| Material: | Cast Iron | Overall Length (in): | 2.703125 in |
| Pitch Diameter (A): | 5.4 | Datum Diameter (B): | 5.6 |
| Datum Diameter (A): | 5.2 | Pulley Material: | Cast Iron |
| Number of Grooves: | 3 | Model Name: | 3TB-M_Sheave_Master |
| Bushing Used: | P1 | Bore (Min) (in): | 0.5 in |
| Belt Section: | A, B | Product Type: | Multiple Sheaves |
| Bore Type: | Split Taper Bushed | Keyway Size: | .375 |
| Bushing Bore Range: | 0.500 - 1.750 | Face Width (in): | 2.5 |
| Pulley Construction: | Webbed | Overall Width (in): | 2.75 |
| UPC: | 662289141531 | Weight: | 9.42 LB |
| Packaged Length: | 6.40 Inches | Packaged Width: | 6.20 Inches |
| Packaged Height: | 2.70 Inches | HTC: | 8483.50.9040 |
| Country of Origin: | Mexico |
