- Incorporates Browning Split Taper Bushing – The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub.
- Sheaves are Statically Balanced – All sheaves are statically balanced to assure smooth, vibration free performance.
- Close Grain Cast iron – Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible.
5C106R

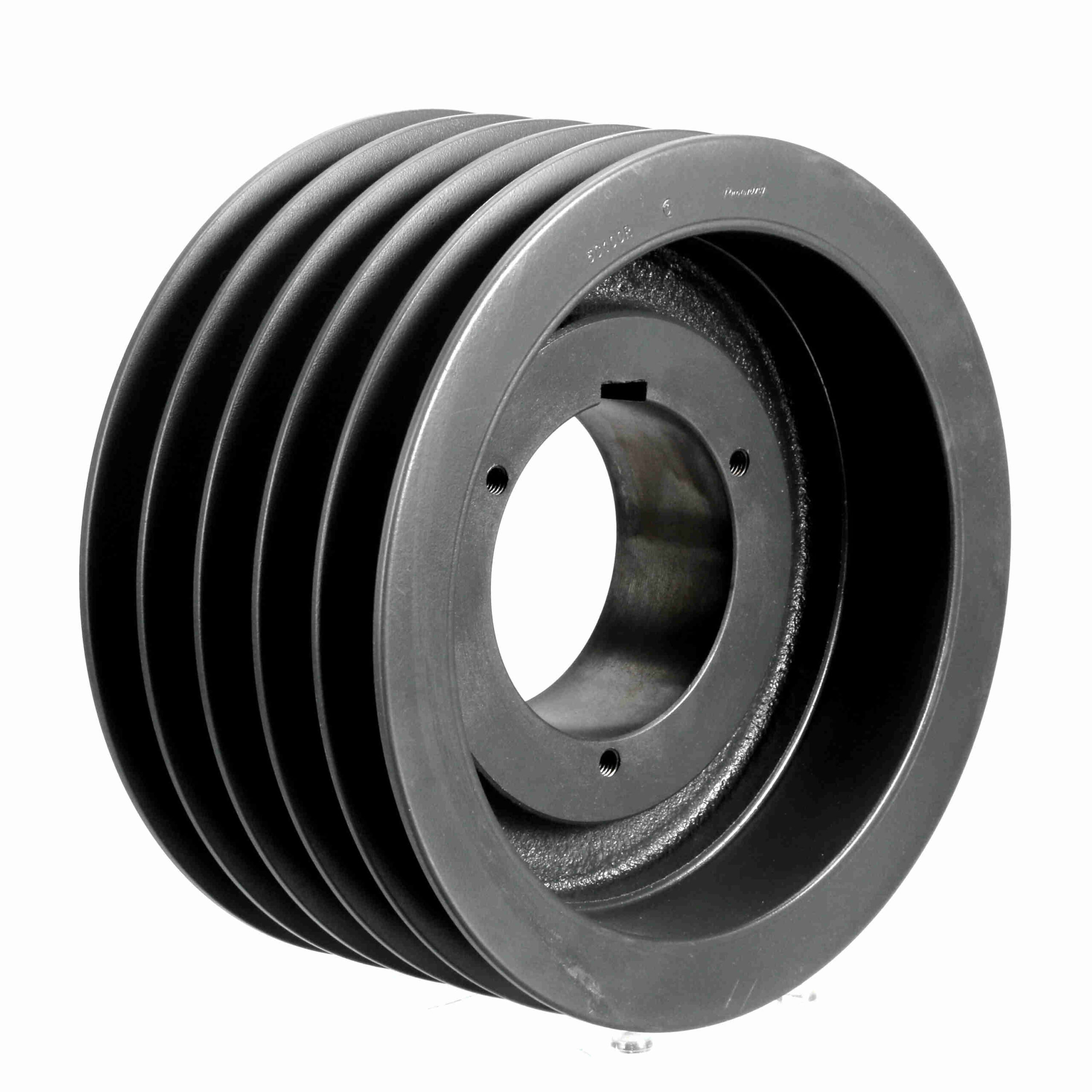

Browning 5 Groove Cast Iron Bushed Bore Multiple Sheave – 5C106R
$1,072.10
Out of stock
Out of stock
| Bushing Used: | R1 | Material: | Cast Iron |
|---|---|---|---|
| Outside Diameter (in): | 11 in | Pulley Material: | Cast Iron |
| Overall Length (in): | 4.796875 in | Pitch Diameter (C): | 11 |
| Number of Grooves: | 5 | Datum Diameter (C): | 10.6 |
| Product Type: | Multiple Sheaves | Bore (Min) (in): | 1.125 in |
| Belt Section: | C | Bore Type: | Split Taper Bushed |
| Pulley Construction: | Webbed | Face Width (in): | 5.25 |
| Overall Width (in): | 5.25 | Bushing Bore Range: | 1.125 - 3.750 |
| Keyway Size: | .750 | UPC: | 662289236336 |
| Weight: | 42.47 LB | Packaged Length: | 11.70 Inches |
| Packaged Width: | 11.50 Inches | Packaged Height: | 5.50 Inches |
| HTC: | 8483.50.9040 | Country of Origin: | Mexico |
