- Combination Groove – All Browning B5V Sheaves permit the running of A, 4L, B, 5L& 5V Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers.
- Broad horsepower coverage – The B5V is available in 1 through 6 grooves allowing it to cover from 5 to 125 horsepower drives
- Incorporates Browning Split Taper Bushing – The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub.
- New Casting design – The B5V castings were developed using CAD and Finite Elements Analysis to determine where to add and eliminate material.
2B5V110

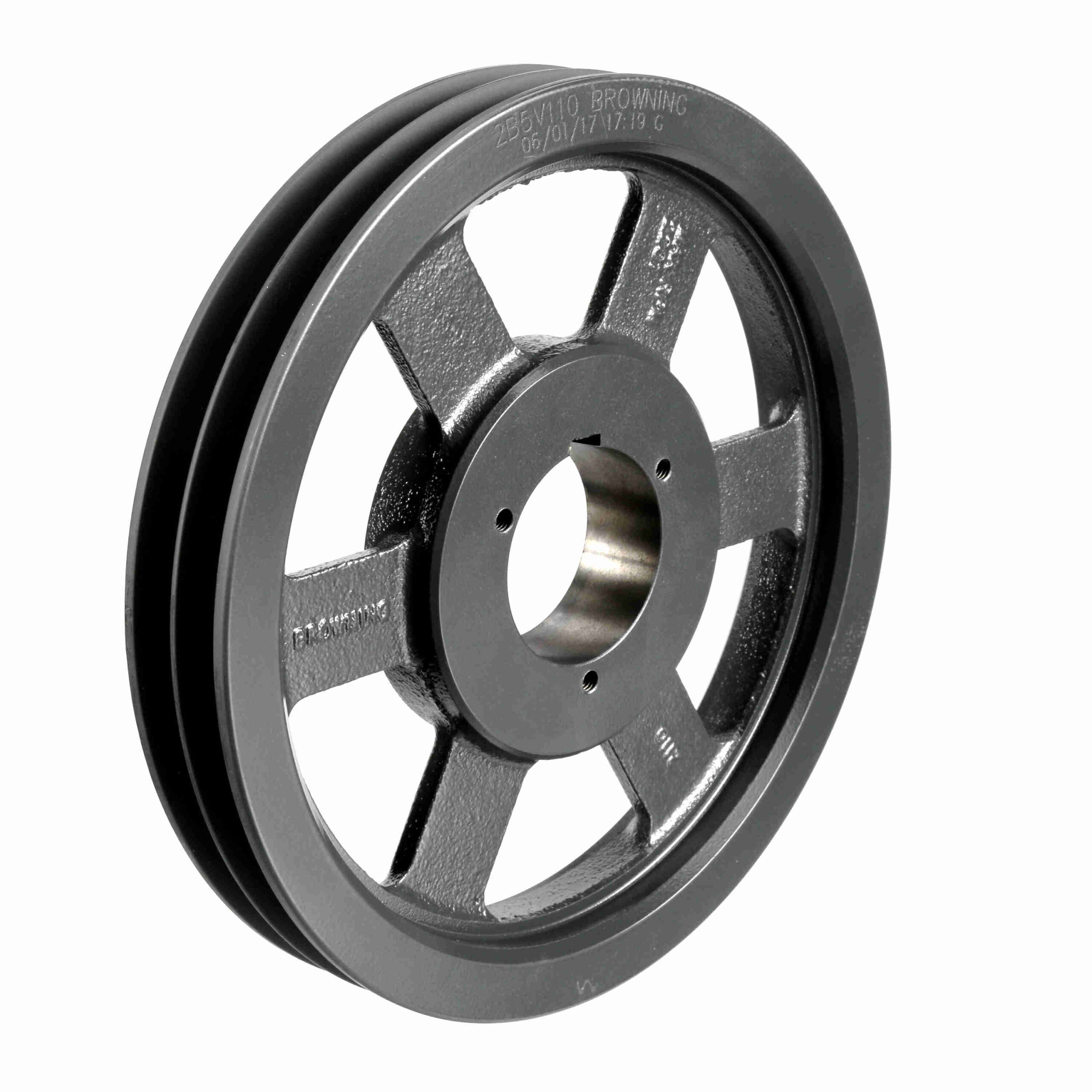

Browning 2 Groove Cast Iron Bushed Bore Multiple Sheave – 2B5V110
$195.33
Availability: 7 in stock
Availability: 7 in stock
| Overall Length (in): | 2.546875 in | Datum Diameter (A): | 10.6 |
|---|---|---|---|
| Outside Diameter (in): | 11.28 in | Number of Grooves: | 2 |
| Datum Diameter (B): | 11 | Pitch Diameter (B): | 11.3 |
| Pitch Diameter (A): | 10.8 | Bushing Used: | B |
| Model Name: | 2B5V-SheaveMaster | Material: | Cast Iron |
| Pulley Material: | Cast Iron | Pitch Diameter (5V): | 11.1 |
| Product Type: | Multiple Sheaves | Bore (Min) (in): | 0.5 in |
| Belt Section: | A, B, 5V | Number of Hubs: | 1 |
| Bore Type: | Split Taper Bushed | Keyway Size: | 0.500 |
| Pulley Construction: | Spoke | Bushing Bore Range: | 0.500 - 2.4375 |
| Overall Width (in): | 2.53 | Face Width (in): | 1.72 |
| UPC: | 662289034253 | Weight: | 15.96 LB |
| Packaged Length: | 11.50 Inches | Packaged Width: | 11.40 Inches |
| Packaged Height: | 1.90 Inches | HTC: | 8483.50.9040 |
| Country of Origin: | Mexico |
