- Incorporates Browning Split Taper Bushing – The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub.
- Combination Groove – All Browning B Sheaves permit the running of A& B Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers.
- Close Grain Cast iron – Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible.

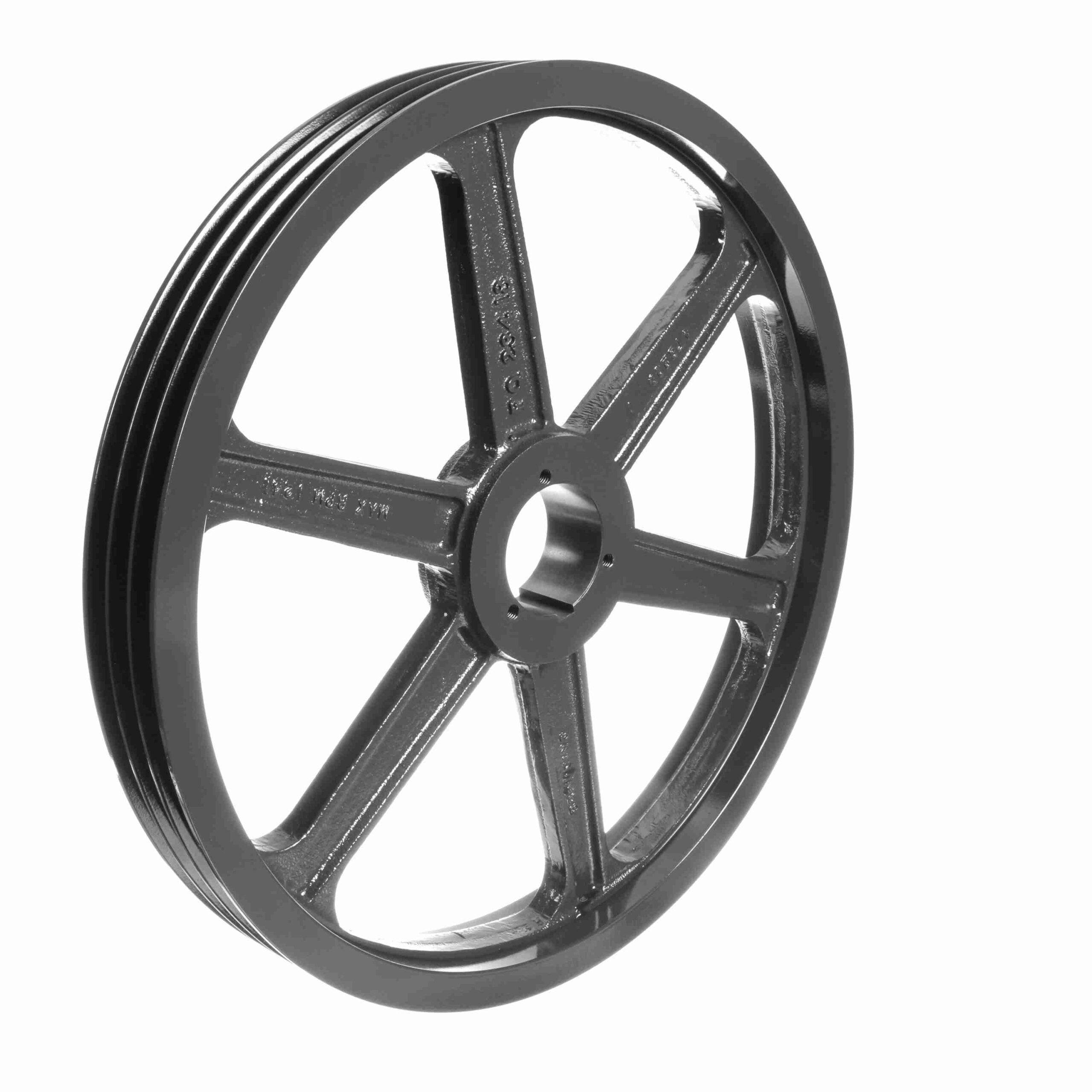

3TB200
Browning 3 Groove Cast Iron Bushed Bore Multiple Sheave – 3TB200
$673.65
Out of stock
Out of stock
| Overall Length (in): | 3.203125 in | Outside Diameter (in): | 20.35 in |
|---|---|---|---|
| Model Name: | 3TB-L_Sheave_Master | Material: | Cast Iron |
| Bushing Used: | Q1 | Number of Grooves: | 3 |
| Pulley Material: | Cast Iron | Pitch Diameter (A): | 19.8 |
| Pitch Diameter (B): | 20.3 | Datum Diameter (B): | 20 |
| Datum Diameter (A): | 19.6 | Product Type: | Multiple Sheaves |
| Bore (Min) (in): | 0.75 in | Belt Section: | A, B |
| Bore Type: | Split Taper Bushed | Pulley Construction: | Spoked |
| Keyway Size: | .500 | Face Width (in): | 2.5 |
| Bushing Bore Range: | 2.6875 - 2.6875 | Overall Width (in): | 3.15625 |
| UPC: | 662289202553 | Weight: | 47.45 LB |
| Packaged Length: | 20.38 Inches | Packaged Width: | 20.38 Inches |
| Packaged Height: | 2.63 Inches | HTC: | 8483.50.9040 |
| Country of Origin: | Mexico |
