- Incorporates Browning Split Taper Bushing – The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub.
- Combination Groove – All Browning B Sheaves permit the running of A& B Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers.
- Close Grain Cast iron – Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible.
5B250R

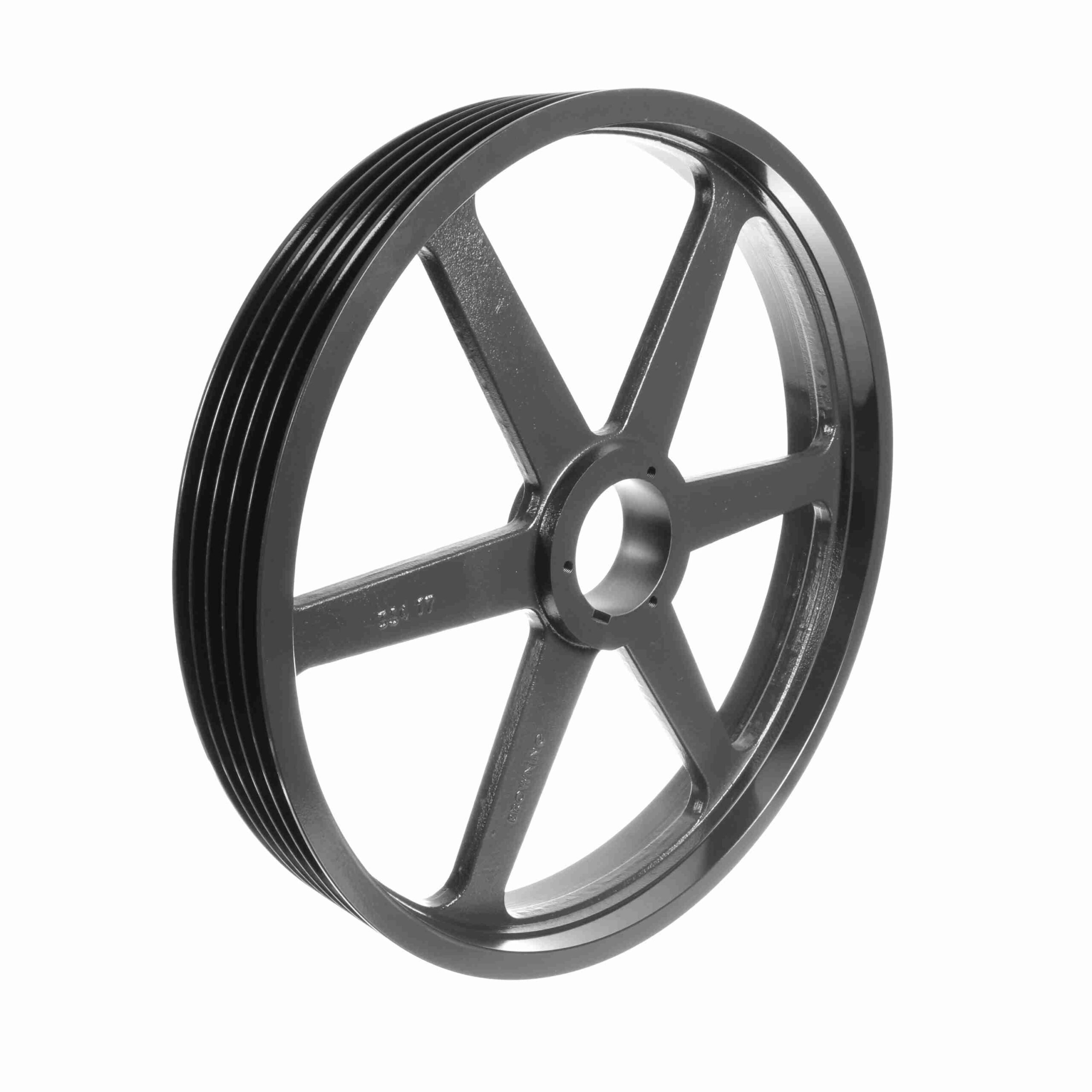

Browning 5 Groove Cast Iron Bushed Bore Multiple Sheave – 5B250R
$1,434.16
Out of stock
Out of stock
| Datum Diameter (A): | 24.6 | Overall Length (in): | 4.171875 in |
|---|---|---|---|
| Material: | Cast Iron | Number of Grooves: | 5 |
| Outside Diameter (in): | 25.35 in | Bushing Used: | R1 |
| Pulley Material: | Cast Iron | Datum Diameter (B): | 25 |
| Pitch Diameter (A): | 24.8 | Pitch Diameter (B): | 25.3 |
| Bore (Min) (in): | 1.125 in | Belt Section: | A, B |
| Product Type: | Multiple Sheaves | Bore Type: | Split Taper Bushed |
| Pulley Construction: | Spoked | Face Width (in): | 4 |
| Keyway Size: | .750 | Bushing Bore Range: | 1.125 - 3.750 |
| Overall Width (in): | 4.15625 | UPC: | 662289311040 |
| Weight: | 79.00 LB | Packaged Length: | 25.35 Inches |
| Packaged Width: | 25.35 Inches | Packaged Height: | 4.00 Inches |
| HTC: | 8483.50.9040 | Country of Origin: | Mexico |
