- Combination Groove – All Browning B5V Sheaves permit the running of A, 4L, B, 5L& 5V Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers.
- Broad horsepower coverage – The B5V is available in 1 through 6 grooves allowing it to cover from 5 to 125 horsepower drives
- Incorporates Browning Split Taper Bushing – The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub.
- New Casting design – The B5V castings were developed using CAD and Finite Elements Analysis to determine where to add and eliminate material.
2B5V62

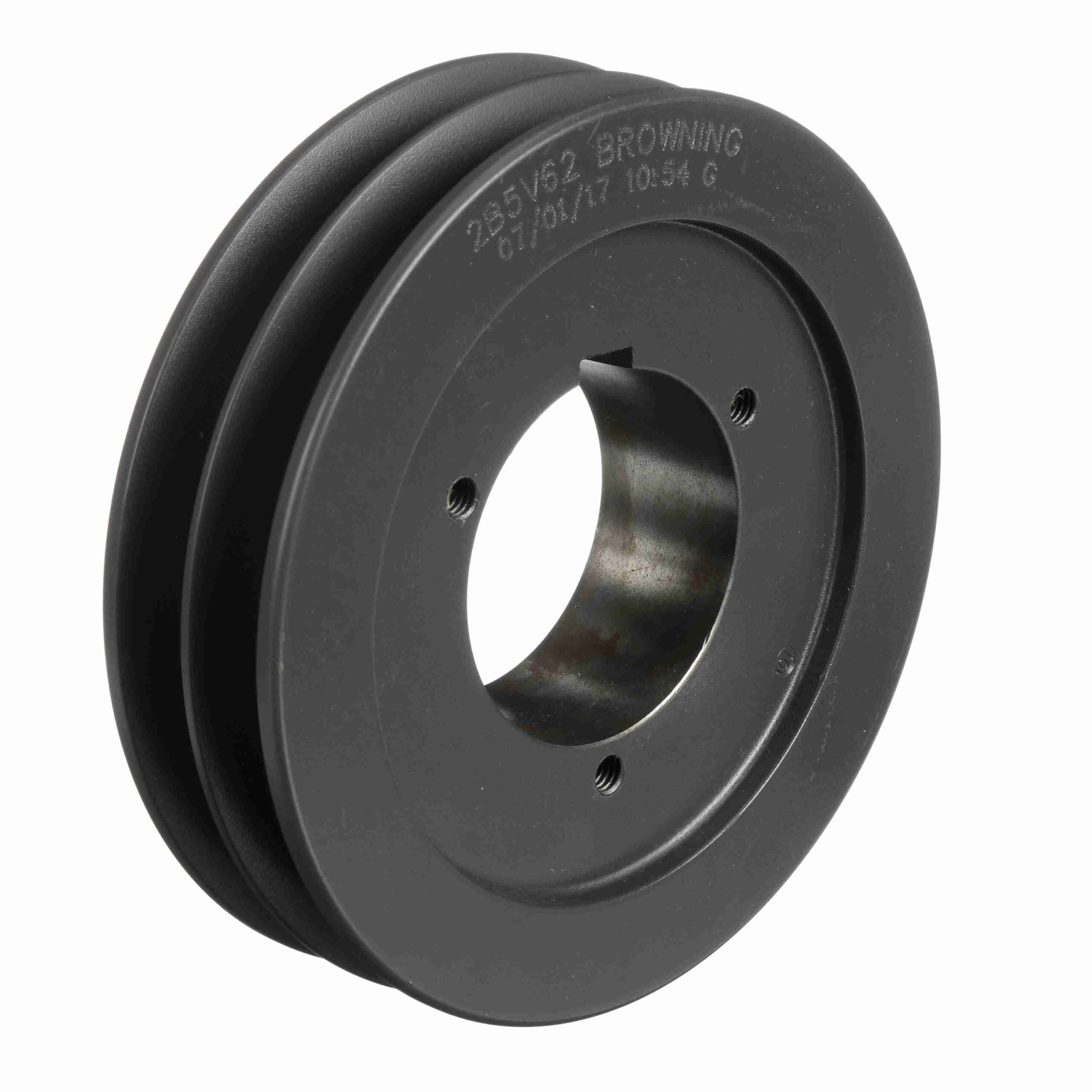

Browning 2 Groove Cast Iron Bushed Bore Multiple Sheave – 2B5V62
$129.84
Availability: 4 in stock
Availability: 4 in stock
| Pitch Diameter (5V): | 6.3 | Pitch Diameter (A): | 6 |
|---|---|---|---|
| Bushing Used: | B | Datum Diameter (A): | 5.8 |
| Number of Grooves: | 2 | Outside Diameter (in): | 6.48 in |
| Pulley Material: | Cast Iron | Material: | Cast Iron |
| Pitch Diameter (B): | 6.5 | Overall Length (in): | 2.546875 in |
| Datum Diameter (B): | 6.2 | Model Name: | 2B5V-SheaveMaster |
| Belt Section: | A, B, 5V | Product Type: | Multiple Sheaves |
| Bore (Min) (in): | 0.5 in | Bore Type: | Split Taper Bushed |
| Number of Hubs: | 1 | Bushing Bore Range: | 0.500 - 2.4375 |
| Pulley Construction: | Solid | Keyway Size: | 0.500 |
| Face Width (in): | 1.72 | Overall Width (in): | 2.53 |
| UPC: | 662289034598 | Weight: | 8.61 LB |
| Packaged Length: | 6.70 Inches | Packaged Width: | 6.80 Inches |
| Packaged Height: | 1.80 Inches | HTC: | 8483.50.9040 |
| Country of Origin: | Mexico |
