- Combination Groove – All Browning B5V Sheaves permit the running of A, 4L, B, 5L& 5V Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers.
- Broad horsepower coverage – The B5V is available in 1 through 6 grooves allowing it to cover from 5 to 125 horsepower drives
- Incorporates Browning Split Taper Bushing – The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub.
- New Casting design – The B5V castings were developed using CAD and Finite Elements Analysis to determine where to add and eliminate material.
3B5V110

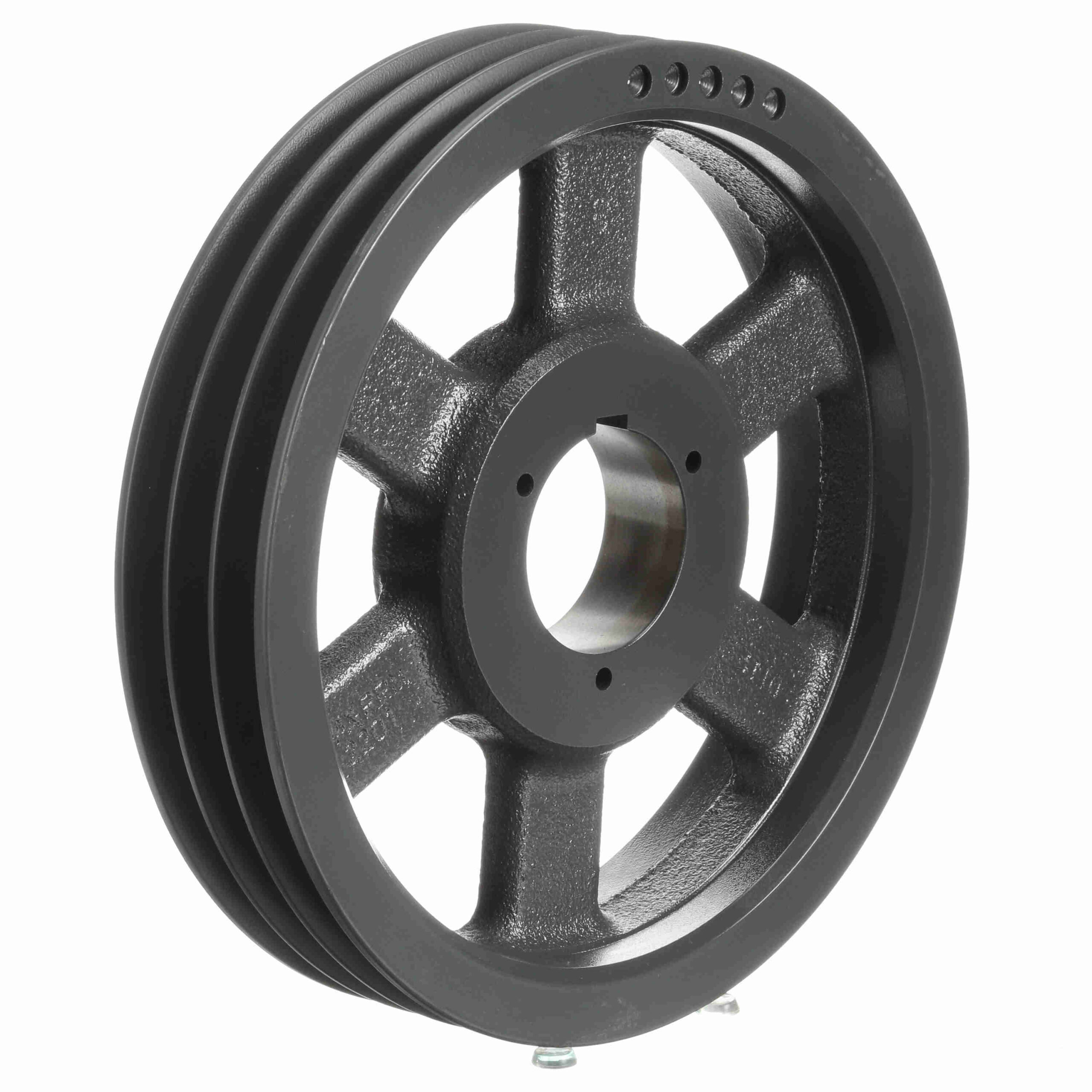

Browning 3 Groove Cast Iron Bushed Bore Multiple Sheave – 3B5V110
$253.98
Availability: 9 in stock
Availability: 9 in stock
| Datum Diameter (B): | 11 | Number of Grooves: | 3 |
|---|---|---|---|
| Outside Diameter (in): | 11.28 in | Material: | Cast Iron |
| Pulley Material: | Cast Iron | Pitch Diameter (B): | 11.3 |
| Model Name: | 3B5V-SheaveMaster | Bushing Used: | B |
| Overall Length (in): | 2.90625 in | Pitch Diameter (5V): | 11.1 |
| Datum Diameter (A): | 10.6 | Pitch Diameter (A): | 10.8 |
| Belt Section: | A, B, 5V | Bore (Min) (in): | 0.5 in |
| Product Type: | Multiple Sheaves | Bore Type: | Split Taper Bushed |
| Face Width (in): | 2.4375 | Bushing Bore Range: | 0.500 - 2.4375 |
| Overall Width (in): | 2.84375 | Pulley Construction: | Spoked |
| Keyway Size: | .500 | UPC: | 662289034758 |
| Weight: | 19.55 LB | Packaged Length: | 11.90 Inches |
| Packaged Width: | 11.80 Inches | Packaged Height: | 2.90 Inches |
| HTC: | 8483.50.9040 | Country of Origin: | Mexico |
