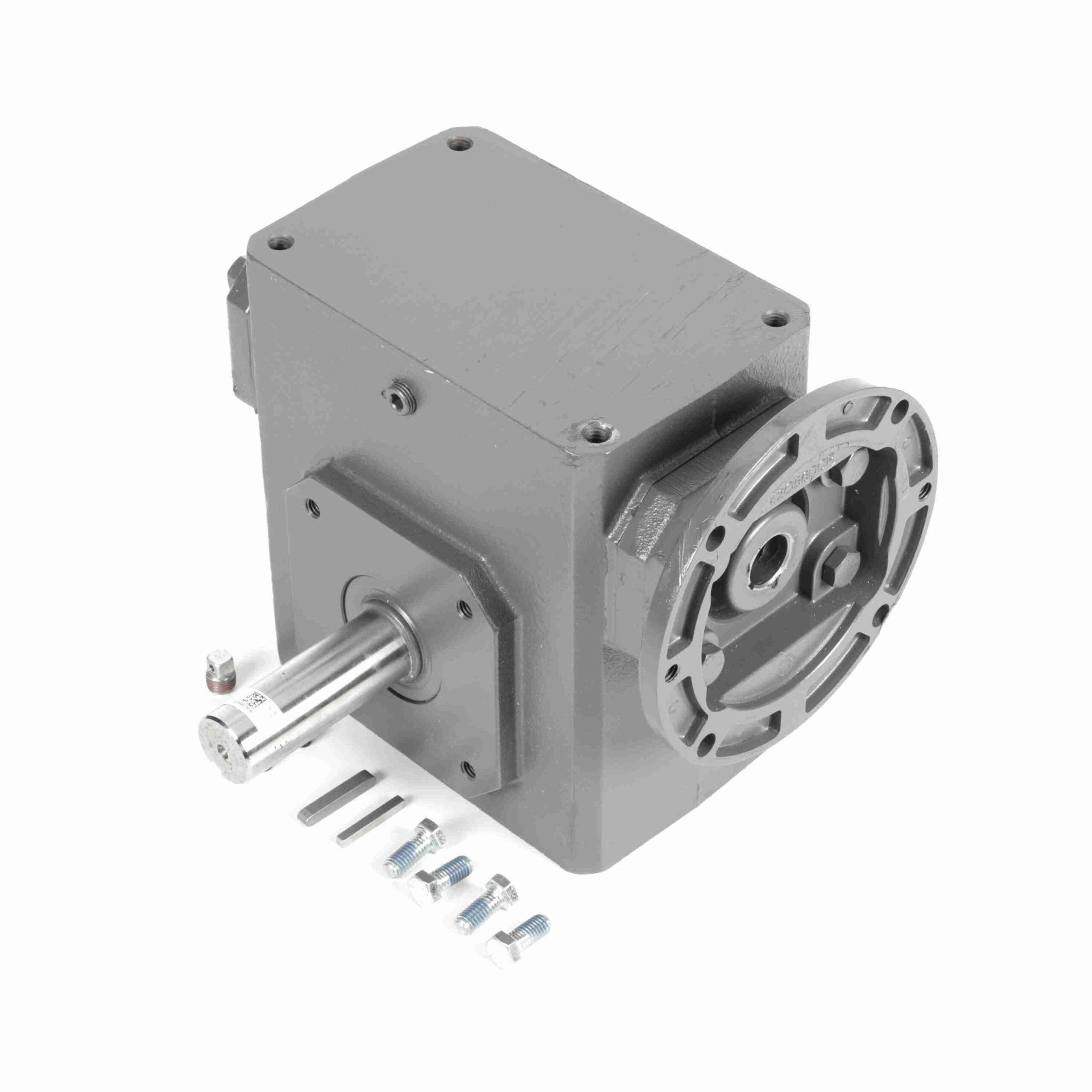

300Q140L20

Rugged Cast-Iron Housing: Provides maximum strength and dependability.
High lead angle worm is case hardened, ground and polished.
Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.

Input Speed:	1750	Shaft Seal Material:	Nitrile
Efficiency:	80	Input Keyway (C Face):	3/16 X 3/32
Reducer Style:	Standard	Ratio:	20:1
Input Bore (C Face):	0.875	Thrust Rating - output shaft:	3410
Motor Frame Size:	140TC	Service Factor:	1
Output Key:	1/4 X 2.25	Assembly:	Q-L
Mounting Style:	No Base	Reducer:	Worm - Right Angle
Output Shaft Assembly Code:	L	Center Distance (in):	3
Series Code:	Raider	Gear Type:	Worm
No. of Gear Reductions:	Single	Output Diameter (in):	1.250 in
Input HP @ 1750 RPM:	3.6	Frame Size:	140TC
Output RPM:	87.5	Product Type:	Worm Speed Reducer
Input Style:	C-Face Quill	Ratio Range:	20:01
Input Diameter (in):	0.875 in	Input RPM:	1, 75
Model Code:	300Q	Output Shaft Direction:	Left
Output Torque Rating (in-lb):	2454 in-lbs @1750 input RPM in/lbs	Overhung Load Rating (Output Shaft(lb)):	987 lb
Housing Material:	Cast Iron	Output Shaft:	Solid Shaft
UPC:	6, 62288E+11	Weight:	68.00 LB
