- Rugged Cast-Iron Housing: Provides maximum strength and dependability.
- High lead angle worm is case hardened, ground and polished.
- Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
- Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.
175Q56R40

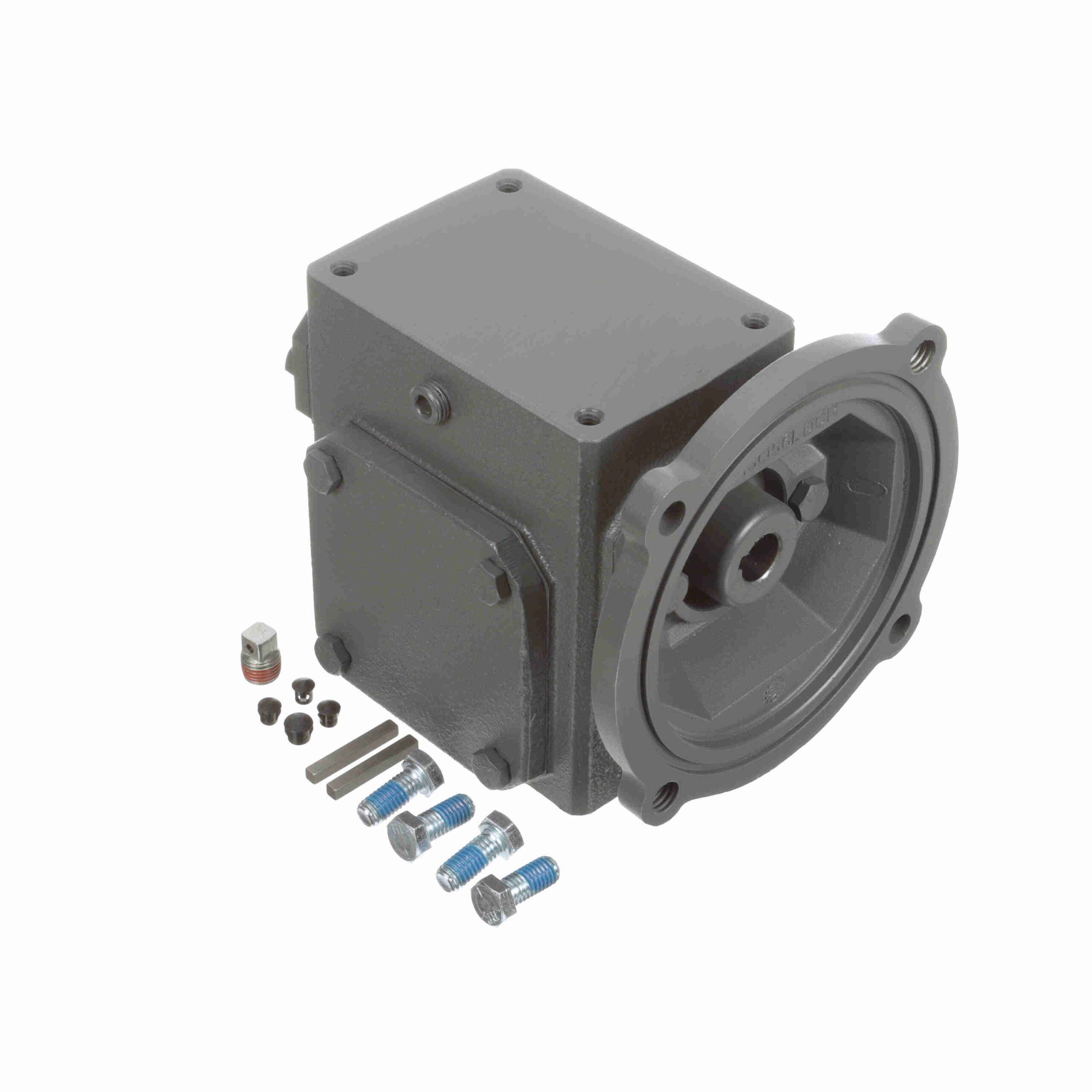

Morse Raider Plus Worm Gear Reducer Cast Iron Single-Reduction Worm Reducer – 175Q56R40
$940.01
Out of stock
Out of stock
| Efficiency: | 80 | Shaft Seal Material: | Nitrile |
|---|---|---|---|
| Ratio: | 40:1 | Input Keyway (C Face): | 3/16 X 3/32 |
| Thrust Rating - output shaft: | 1399 | Input Speed: | 1750 |
| Reducer Style: | Standard | Motor Frame Size: | 56C |
| Input Bore (C Face): | 0.625 | No. of Gear Reductions: | Single |
| Input Style: | C-Face Quill | Input Diameter (in): | 0.625 in |
| Output Key: | 3/16 X 1.38 | Frame Size: | 56C |
| Input RPM: | 1, 750 | Center Distance (in): | 1.75 |
| Output RPM: | 43.7 | Product Type: | Worm Speed Reducer |
| Series Code: | Raider | Output Shaft Assembly Code: | R |
| Model Code: | 175Q | Reducer: | Worm - Right Angle |
| Mounting Style: | No Base | Gear Type: | Worm |
| Service Factor: | 1 | Output Diameter (in): | 0.875 in |
| Input HP @ 1750 RPM: | 0.52 | Ratio Range: | 40:01:00 |
| Assembly: | Q-R | Output Shaft Direction: | Right |
| Output Shaft: | Solid Shaft | Housing Material: | Cast Iron |
| Overhung Load Rating (Output Shaft(lb)): | 740 lb | Output Torque Rating (in-lb): | 634 in-lbs @1750 input RPM in/lbs |
| UPC: | 6, 62288E+11 | Weight: | 24.00 LB |
