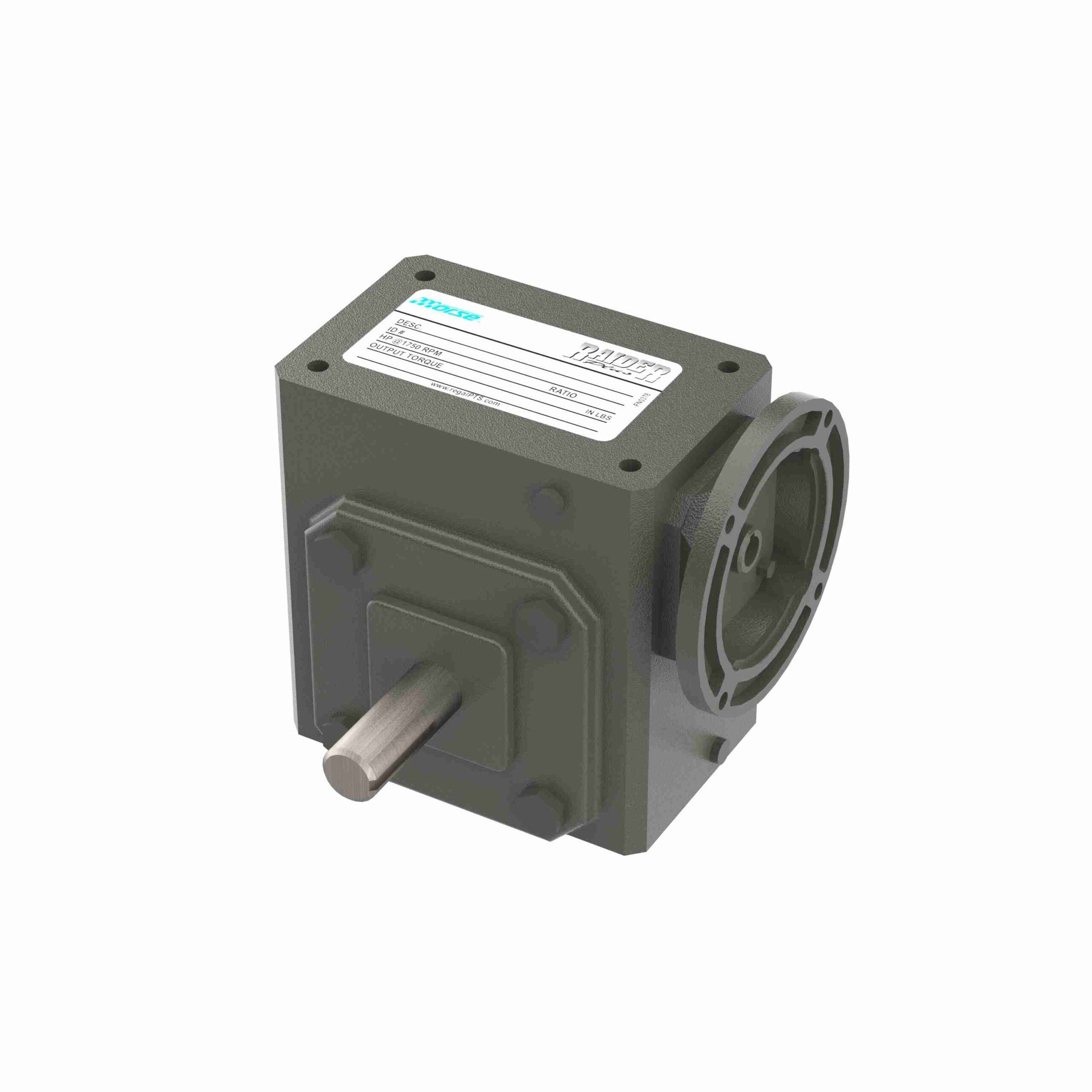

300Q140LR20

Rugged Cast-Iron Housing: Provides maximum strength and dependability.
High lead angle worm is case hardened, ground and polished.
Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.

Input Speed:	1750	Input Bore (C Face):	0.875
Shaft Seal Material:	Nitrile	Reducer Style:	Standard
Input Keyway (C Face):	3/16 X 3/32	Thrust Rating - output shaft:	3410
Efficiency:	80	Motor Frame Size:	140TC
Ratio:	20:1	Input Style:	C-Face Quill
Product Type:	Worm Speed Reducer	Input HP @ 1750 RPM:	3.6
Output Diameter (in):	1.250 in	Output Key:	1/4 X 2.25
Frame Size:	140TC	No. of Gear Reductions:	Single
Reducer:	Worm - Right Angle	Output RPM:	87.5
Service Factor:	1	Center Distance (in):	3
Series Code:	Raider	Output Shaft Assembly Code:	D
Model Code:	300Q	Ratio Range:	20:01
Input RPM:	1, 75	Input Diameter (in):	0.875 in
Gear Type:	Worm	Output Shaft Orientation:	LR
Assembly:	Q-LR	Mounting Style:	No Base
Output Shaft Direction:	Double	Output Torque Rating (in-lb):	2454 in-lbs @1750 input RPM in/lbs
Housing Material:	Cast Iron	Overhung Load Rating (Output Shaft(lb)):	987 lb
Output Shaft:	Solid Shaft	UPC:	6, 62288E+11
Weight:	68.00 LB	Packaged Length:	19.38 Inches
Packaged Width:	15.11 Inches	Packaged Height:	15 Inches
