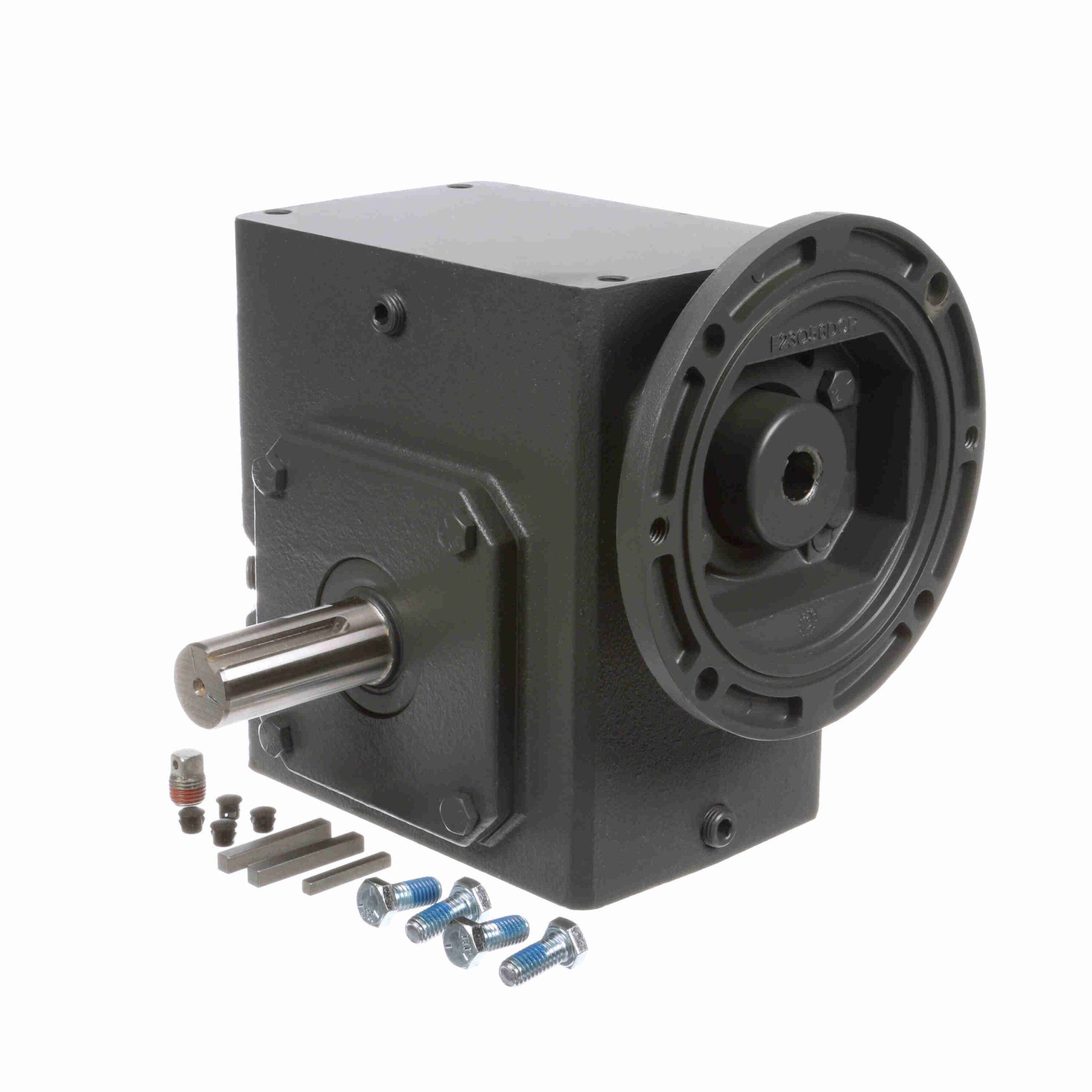

237Q56LR30

Rugged Cast-Iron Housing: Provides maximum strength and dependability.
High lead angle worm is case hardened, ground and polished.
Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.

Shaft Seal Material:	Nitrile	Input Keyway (C Face):	3/16 X 3/32
Thrust Rating - output shaft:	2305	Reducer Style:	Standard
Input Speed:	1750	Input Bore (C Face):	0.625
Motor Frame Size:	56C	Ratio:	30:1
Efficiency:	80	Service Factor:	1
Output Shaft Orientation:	LR	Output RPM:	58.3
Input RPM:	1, 750	Output Diameter (in):	1.125 in
Center Distance (in):	2.38	Input Diameter (in):	0.625 in
No. of Gear Reductions:	Single	Output Shaft Assembly Code:	D
Product Type:	Worm Speed Reducer	Mounting Style:	No Base
Gear Type:	Worm	Model Code:	237Q
Ratio Range:	30:01:00	Reducer:	Worm - Right Angle
Assembly:	Q-LR	Input Style:	C-Face Quill
Frame Size:	56C	Series Code:	Raider
Input HP @ 1750 RPM:	1.45	Output Key:	1/4 X 1.75
Output Shaft Direction:	Double	Housing Material:	Cast Iron
Output Shaft:	Solid Shaft	Overhung Load Rating (Output Shaft(lb)):	843 lb
Output Torque Rating (in-lb):	1423 in-lbs @1750 input RPM in/lbs	UPC:	6, 62288E+11
Weight:	45.00 LB	Packaged Length:	10.69 Inches
Packaged Width:	9.06 Inches	Packaged Height:	10.5 Inches
