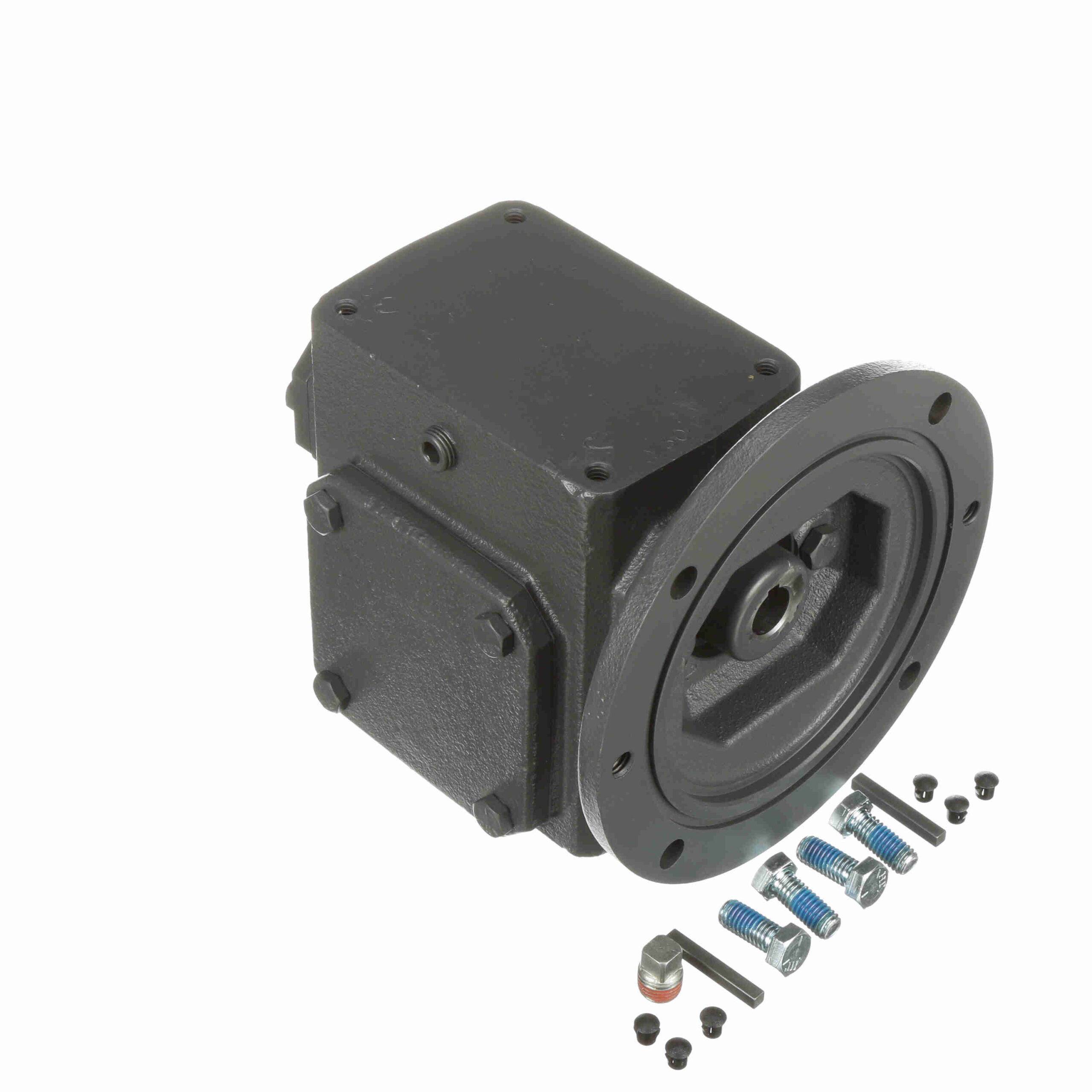

262Q56R30

Rugged Cast-Iron Housing: Provides maximum strength and dependability.
High lead angle worm is case hardened, ground and polished.
Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.

Input Speed:	1750	Input Keyway (C Face):	3/16 X 3/32
Ratio:	30:1	Shaft Seal Material:	Nitrile
Efficiency:	80	Motor Frame Size:	56C
Reducer Style:	Standard	Thrust Rating - output shaft:	2956
Input Bore (C Face):	0.625	Output Shaft Assembly Code:	R
Center Distance (in):	2.62	Ratio Range:	30:1
Output Key:	1/4 X 2.00	Assembly:	Q-R
Output Diameter (in):	1.125 in	Product Type:	Worm Speed Reducer
Mounting Style:	No Base	Output RPM:	58.3
Input HP @ 1750 RPM:	1.7	Reducer:	Worm - Right Angle
Model Code:	262Q	Service Factor:	1
Frame Size:	56C	Input Style:	C-Face Quill
Input Diameter (in):	0.625 in	Input RPM:	1, 75
Gear Type:	Worm	No. of Gear Reductions:	Single
Series Code:	Raider	Output Shaft Direction:	Right
Housing Material:	Cast Iron	Output Shaft:	Solid Shaft
Overhung Load Rating (Output Shaft(lb)):	1, 295 lb	Output Torque Rating (in-lb):	1833 in-lbs @1750 input RPM in/lbs
UPC:	6, 62288E+11	Weight:	45.63 LB
Packaged Length:	16.4 Inches	Packaged Width:	12.7 Inches
Packaged Height:	12.8 Inches
