- Rugged Cast-Iron Housing: Provides maximum strength and dependability.
- High lead angle worm is case hardened, ground and polished.
- Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
- Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.
206Q56R30

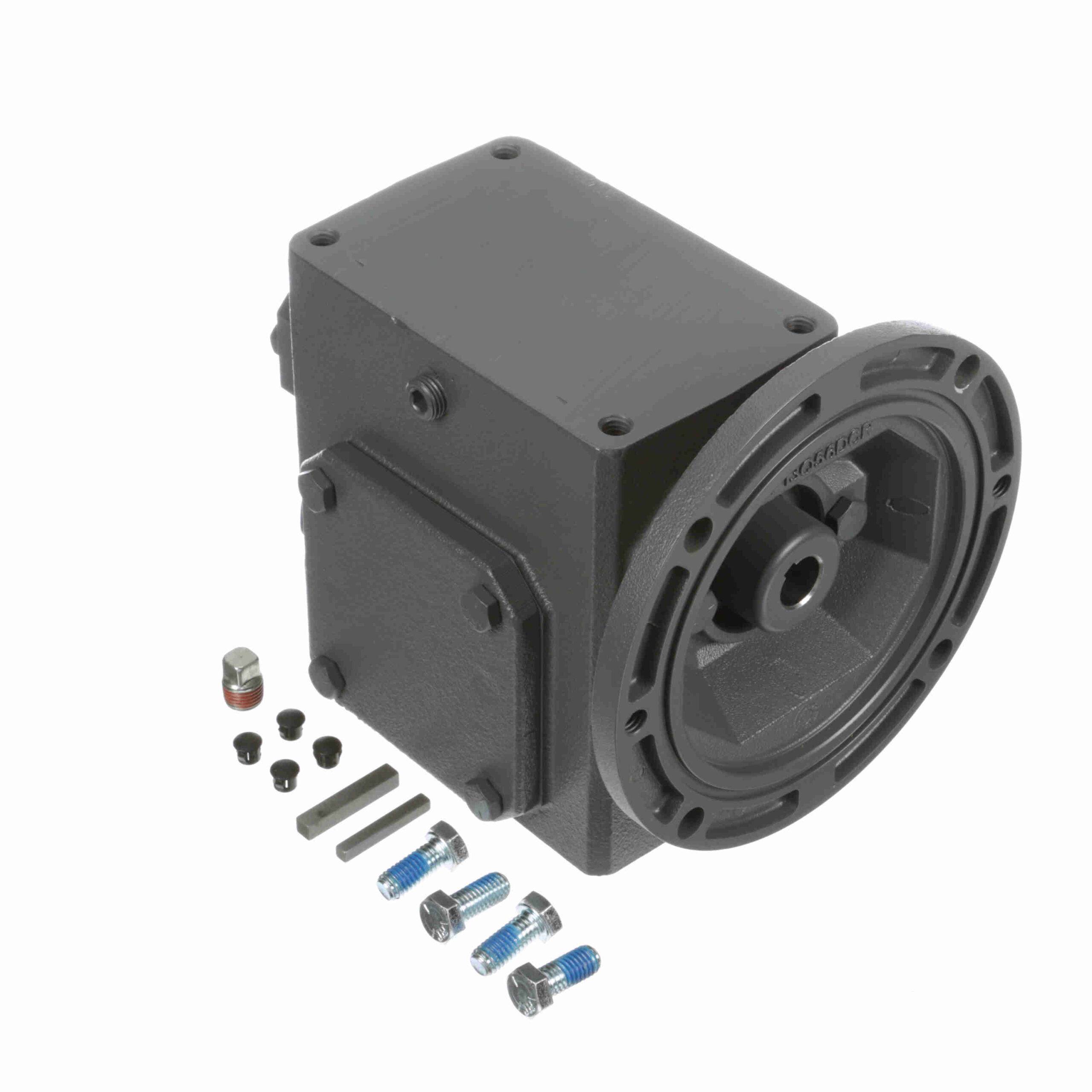

Morse Raider Plus Worm Gear Reducer Cast Iron Single-Reduction Worm Reducer – 206Q56R30
$1,255.41
Out of stock
Out of stock
| Efficiency: | 80 | Thrust Rating - output shaft: | 2300 |
|---|---|---|---|
| Reducer Style: | Standard | Motor Frame Size: | 56C |
| Ratio: | 30:1 | Input Speed: | 1750 |
| Input Keyway (C Face): | 3/16 X 3/32 | Input Bore (C Face): | 0.625 |
| Shaft Seal Material: | Nitrile | Input RPM: | 1, 750 |
| Service Factor: | 1 | Gear Type: | Worm |
| Frame Size: | 56C | Mounting Style: | No Base |
| Input HP @ 1750 RPM: | 0.94 | Input Diameter (in): | 0.625 in |
| Output Key: | 1/4 X 1.75 | Assembly: | Q-R |
| Product Type: | Worm Speed Reducer | Output RPM: | 58.3 |
| Output Shaft Assembly Code: | R | Series Code: | Raider |
| Model Code: | 206Q | Reducer: | Worm - Right Angle |
| No. of Gear Reductions: | Single | Ratio Range: | 30:01:00 |
| Output Diameter (in): | 1.000 in | Input Style: | C-Face Quill |
| Center Distance (in): | 2.06 | Output Shaft Direction: | Right |
| Overhung Load Rating (Output Shaft(lb)): | 1, 078 lb | Output Torque Rating (in-lb): | 968 in-lbs @1750 input RPM in/lbs |
| Housing Material: | Cast Iron | Output Shaft: | Solid Shaft |
| UPC: | 6, 62288E+11 | Weight: | 29.00 LB |
