- Unmatched Quality and Performance in Morse Brand Chain
- Far exceeds ANSI performance standards. Rigid manufacturing processes result in a fully-featured chain.
- Available in package quantities or via quick-turnaround cut-to-length
100R 10FT

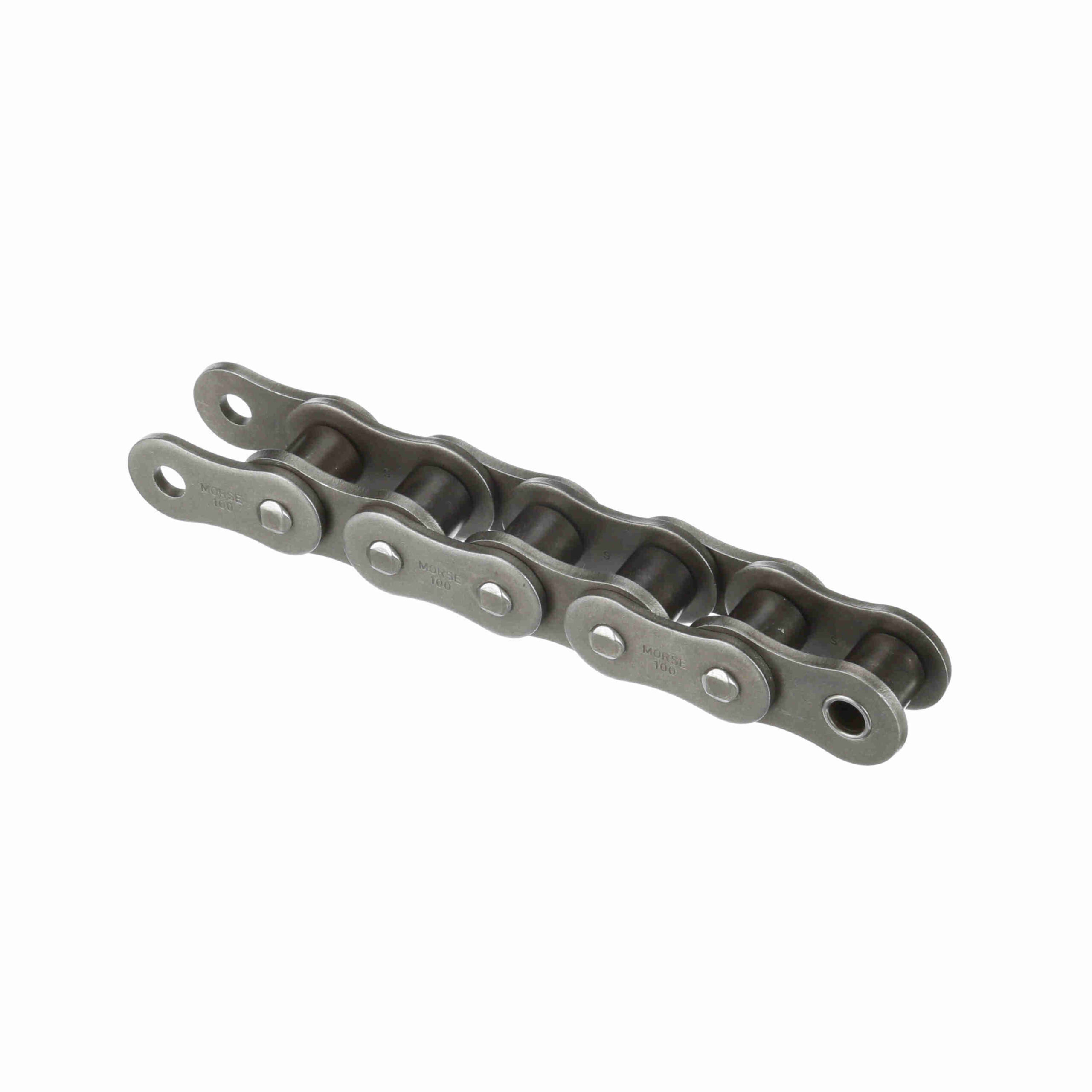

Morse Standard Riveted Roller Chain – 100R 10FT
$37.15
Out of stock
Out of stock
| Centerline to Outside of cotter Pin: | 0.923 | Number of Strands/Width: | 1 |
|---|---|---|---|
| Plate Thickness: | 0.156 | Side Plate Cfg.: | Hourglass |
| Pin Diameter (in): | 0.375 in | Inside Plate Height: | 1.166 |
| Roller Diameter (in): | 0.75 in | Material: | Steel |
| Roller Width (in): | 0.75 in | Width Over Pins/Total Width: | 1.555 |
| Number of Connecting Links Included: | 1 | Average Ultimate Tensile Strength (psi): | 24, 000 |
| Centerline to Opposite cotter Pin Side: | 0.778 | Chain Size: | 100 |
| Chain Construction: | Riveted | Chain Pitch (in): | 1.25 in |
| Chain Type: | Standard | Product Type: | Roller Chain |
| Total Length: | 10 FT ft | Coating: | Uncoated |
| Measurement System: | Imperial | Standard Met: | ANSI B29.1 |
| Pin Length - Riveted: | 1.555 | UPC: | 662288395287 |
| Weight: | 2.79 LB | Packaged Length: | 13.8 Inches |
| Packaged Width: | 13.6 Inches | Packaged Height: | 1.7 Inches |
| HTC: | 7315.11.0060 | Country of Origin: | Taiwan, Republic of China |
