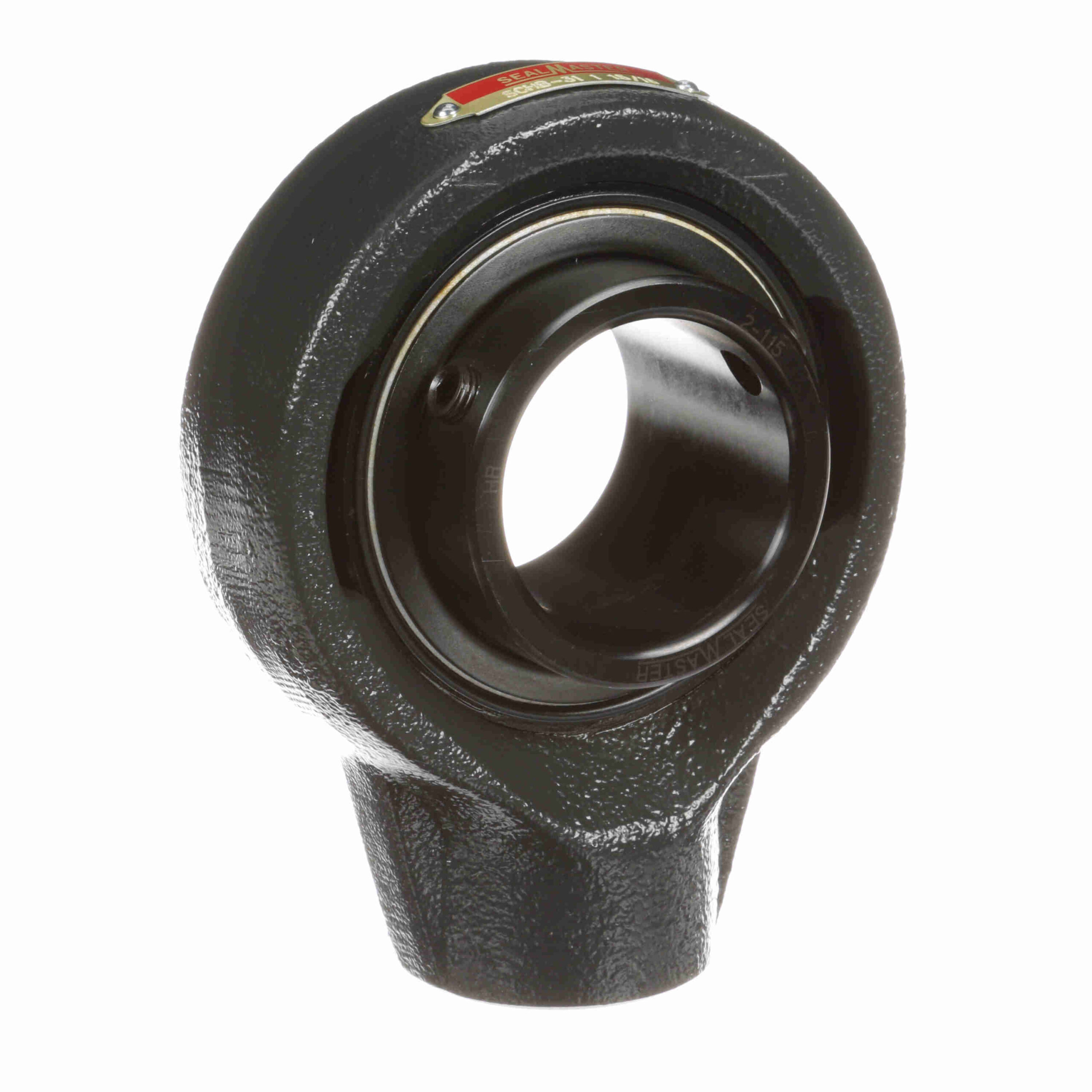

SCHB-31

Powder coated epoxy cast iron housing with extended inner ring bearings
Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
Felt labyrinth seal and flinger for dry and dusty environment
Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Duty Series:	Standard Duty	Bore Shape:	Straight
Measure Units:	Inch	Seal Type:	Felt Labyrinth Seal
Retainer Type:	Land Riding Retainer	Housing Type:	Hanger Unit
Insert No.:	2-115	Housing Material:	Cast Iron
Speed (Max):	3550	Expansion:	No
Insert Material:	52100 Bearing Steel, Black Oxided	Maximum Operating Temperature:	220 °F
Rolling Element:	Ball Bearing	Pipe Tap** N.P.S.M.:	1 - 11 1/2
Housing Construction:	One Piece	Locking Type:	Setscrew
Lubrication:	Lithium Complex NLGI 2 Grease	Misalignment:	±2.0° Misalignment - Static Only
Relubricatable:	Yes	Internal Clearance:	Standard
Inner-Race Heat-Treat Method:	Zone-Hardened	Housing Color:	Gray
End Cap:	No	Replaceable Insert:	Yes
Bearing Insert Coating:	Black Oxide Coated	Outer Ring Land Profile:	Standard
Misalignment Type:	Static Only	Platform:	Gold Line Ball Bearing
Series:	CSCHB	Finish/Coating:	Uncoated
UPC:	662461002810	Weight:	4.50 LB
Packaged Length:	5.5 Inches	Packaged Width:	2.13 Inches
Packaged Height:	5.5 Inches	HTC:	8483.20.4040
Country of Origin:	United States of America
