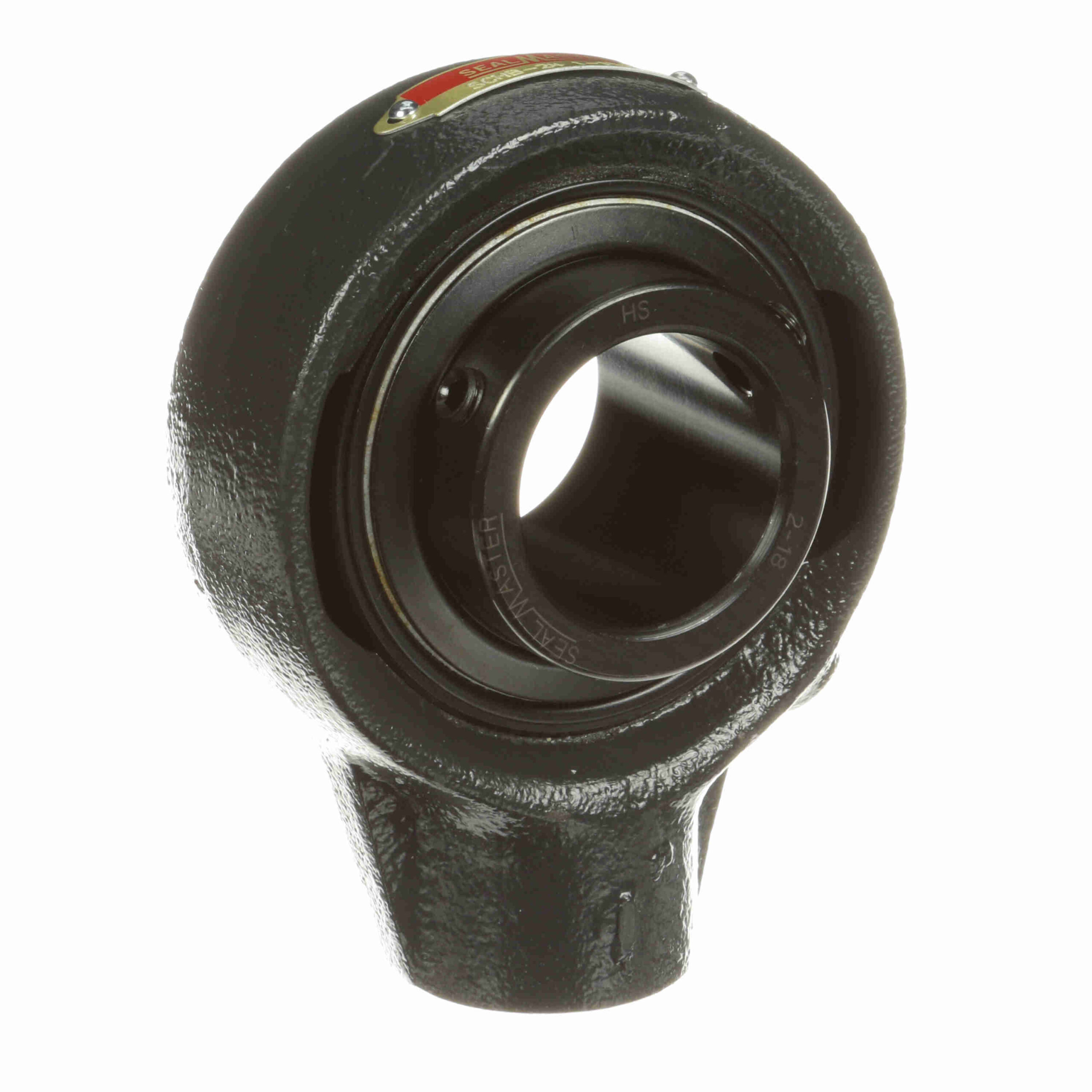

SCHB-24

Powder coated epoxy cast iron housing with extended inner ring bearings
Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
Felt labyrinth seal and flinger for dry and dusty environment
Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Housing Type:	Hanger Unit	Retainer Type:	Land Riding Retainer
Bore Shape:	Straight	Duty Series:	Standard Duty
Insert Material:	52100 Bearing Steel, Black Oxided	Housing Material:	Cast Iron
Seal Type:	Felt Labyrinth Seal	Measure Units:	Inch
Rolling Element:	Ball Bearing	Expansion:	No
Maximum Operating Temperature:	220 °F	Pipe Tap** N.P.S.M.:	3/4 - 14
Speed (Max):	4150	Insert No.:	2-18
Housing Construction:	One Piece	Internal Clearance:	Standard
Inner-Race Heat-Treat Method:	Zone-Hardened	Relubricatable:	Yes
Lubrication:	Lithium Complex NLGI 2 Grease	Locking Type:	Setscrew
Misalignment:	±2.0° Misalignment - Static Only	Bearing Insert Coating:	Black Oxide Coated
Platform:	Gold Line Ball Bearing	Outer Ring Land Profile:	Standard
End Cap:	No	Replaceable Insert:	Yes
Housing Color:	Gray	Misalignment Type:	Static Only
Series:	CSCHB	Finish/Coating:	Uncoated
UPC:	662461002766	Weight:	3.35 LB
Packaged Length:	5 Inches	Packaged Width:	2 Inches
Packaged Height:	5 Inches	HTC:	8483.20.4040
Country of Origin:	United States of America
