- Unmatched Quality and Performance in Morse Brand Chain
- Far exceeds ANSI performance standards. Rigid manufacturing processes result in a fully-featured chain.
- Available in package quantities or via quick-turnaround cut-to-length
100-2C 10FT

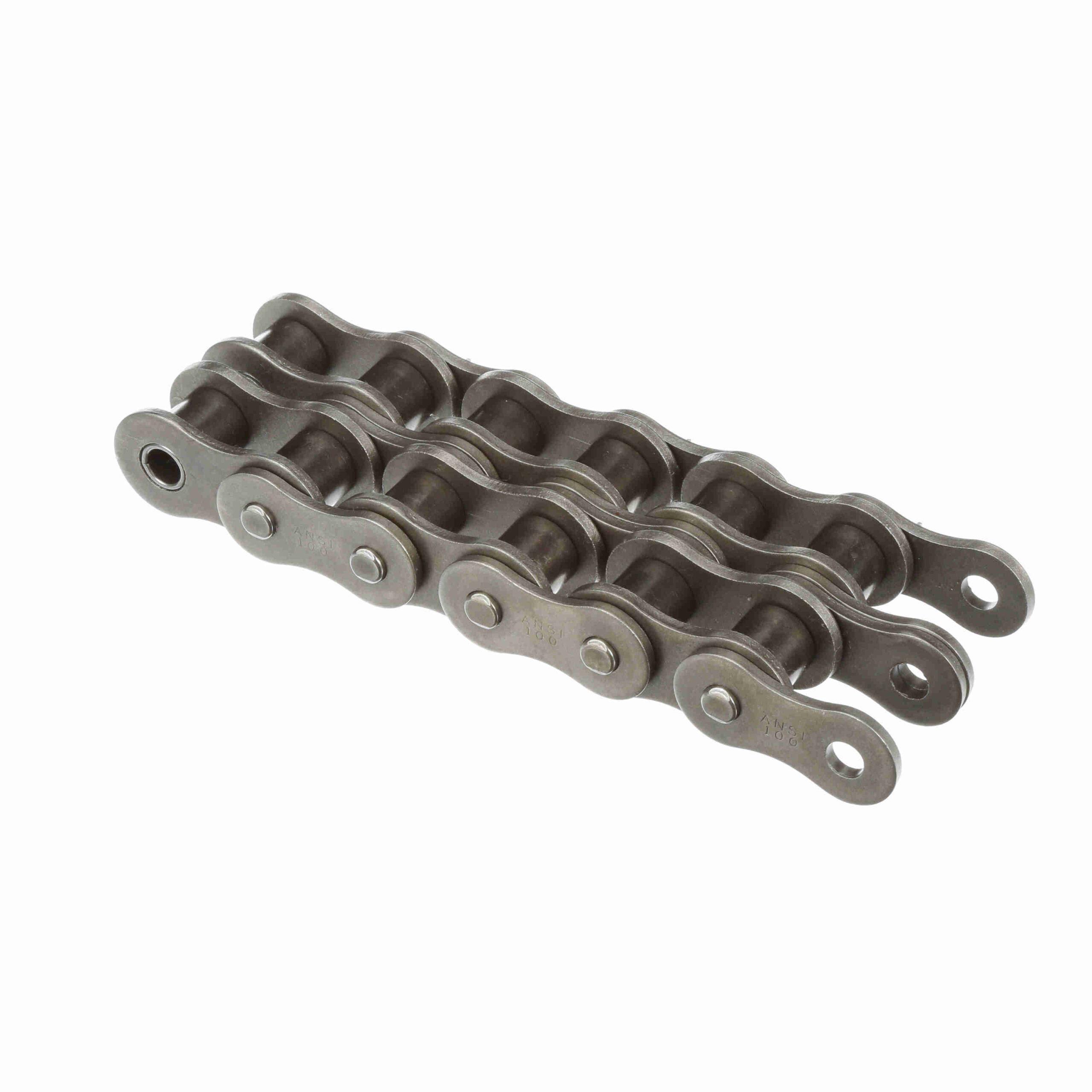

Morse Standard Cottered Roller Chain – 100-2C 10FT
$141.58
Out of stock
Out of stock
| Average Ultimate Tensile Strength (psi): | 48, 000 | Roller Width (in): | 0.75 in |
|---|---|---|---|
| Plate Thickness: | 0.156 | Number of Connecting Links Included: | 1 |
| Chain Construction: | Cottered | Center Plates: | Loose Fit, Press Fit Optional |
| Number of Strands/Width: | 2 | Centerline to Opposite cotter Pin Side: | 1.482 |
| Material: | Steel | Side Plate Cfg.: | Hourglass |
| Inside Plate Height: | 1.166 | Pin Diameter (in): | 0.375 in |
| Roller Diameter (in): | 0.75 in | Chain Size: | 100 |
| Centerline to Outside of cotter Pin: | 1.625 | Width Over Pins/Total Width: | 2.963 |
| Product Type: | Roller Chain | Chain Type: | Standard |
| Chain Pitch (in): | 1.25 in | Coating: | Uncoated |
| Total Length: | 10 FT ft | Standard Met: | ANSI B29.1 |
| Measurement System: | Imperial | Transverse Pitch: | 1.408 |
| Pin Length - Riveted: | 2.963 | UPC: | 662288455455 |
| Weight: | 5.42 LB | Packaged Length: | 13.80 Inches |
| Packaged Width: | 13.80 Inches | Packaged Height: | 3.50 Inches |
| HTC: | 7315.11.0060 | Country of Origin: | Taiwan, Republic of China |
