- Browning Minimum Bore Spur Gear
- Browning Gears are rated in accordance with AGMA standards
- When you think “Special” Gears – Think Browning
YSS418

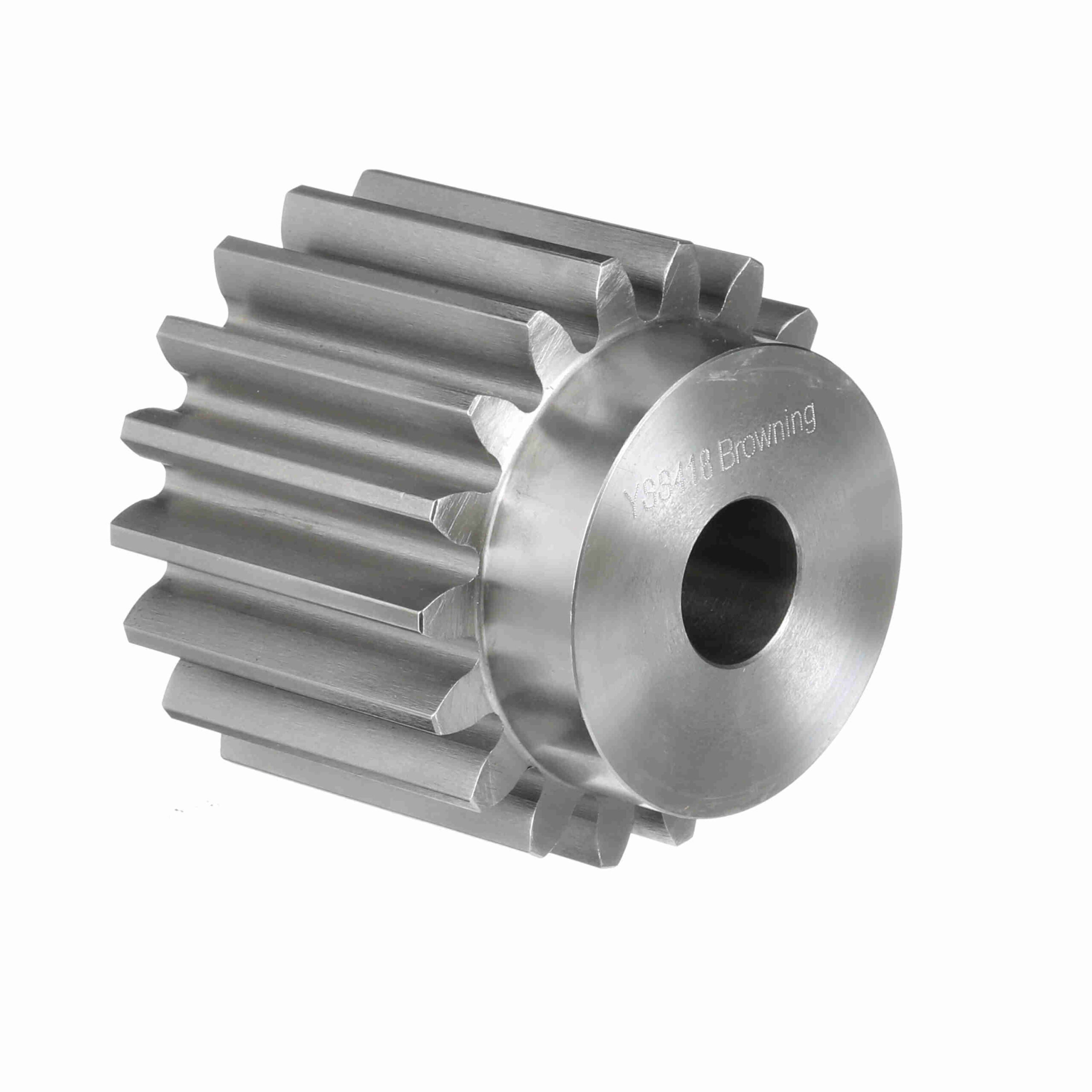

Browning Steel Minimum Plain Bore Spur Gear – 20 PA 4 DP – YSS418
$640.50
Out of stock
Out of stock
| Pitch Diameter (in): | 4.5 in | Number of Teeth/Threads: | 18 |
|---|---|---|---|
| Hub Diameter (in): | 3.75 in | Outside Diameter (in): | 5 in |
| Hub Projection (in): | 1 in | Pressure Angle: | 20 |
| Diametral Pitch: | 4 | Face Width (in): | 3.5 in |
| Material: | Steel | Bore (Min) (in): | 1.3125 in |
| Bore (Max) (in): | 2.375 in | Length Through Bore (in): | 4.5 in |
| Bore Type: | Minimum Plain Bore | Product Type: | Spur Gear |
| Bore Size (in): | 1.3125 in | Hub Type: | Type B |
| Standard Met: | AGMA | Overall Length (in): | 4.5 in |
| UPC: | 662289247301 | Weight: | 16.89 LB |
| Packaged Length: | 6.10 Inches | Packaged Width: | 5.80 Inches |
| Packaged Height: | 4.90 Inches | HTC: | 8483.40.9000 |
| Country of Origin: | Mexico |
