- Constant Speed – No slip, no creep, minimum backlash due to the positive engagement of the belt teeth with the grooves of the sprockets.
- Light Weight – High horsepower-to-weight ratio makes Browning Gearbelt drives ideal for any application where weight is a factor.
- Broad depth of product to choose from – Browning offers 5 different sprocket pitches along with a wide range of sprocket and belt widths to accommodate any horsepower requirement.
- Different Mounting to the shaft – Browning offers the Gearbelt Pulleys in various ways to mount to the shaft, Split Taper, QD Bushing styles, as well as, finished and minimum plain bore.
30HP200

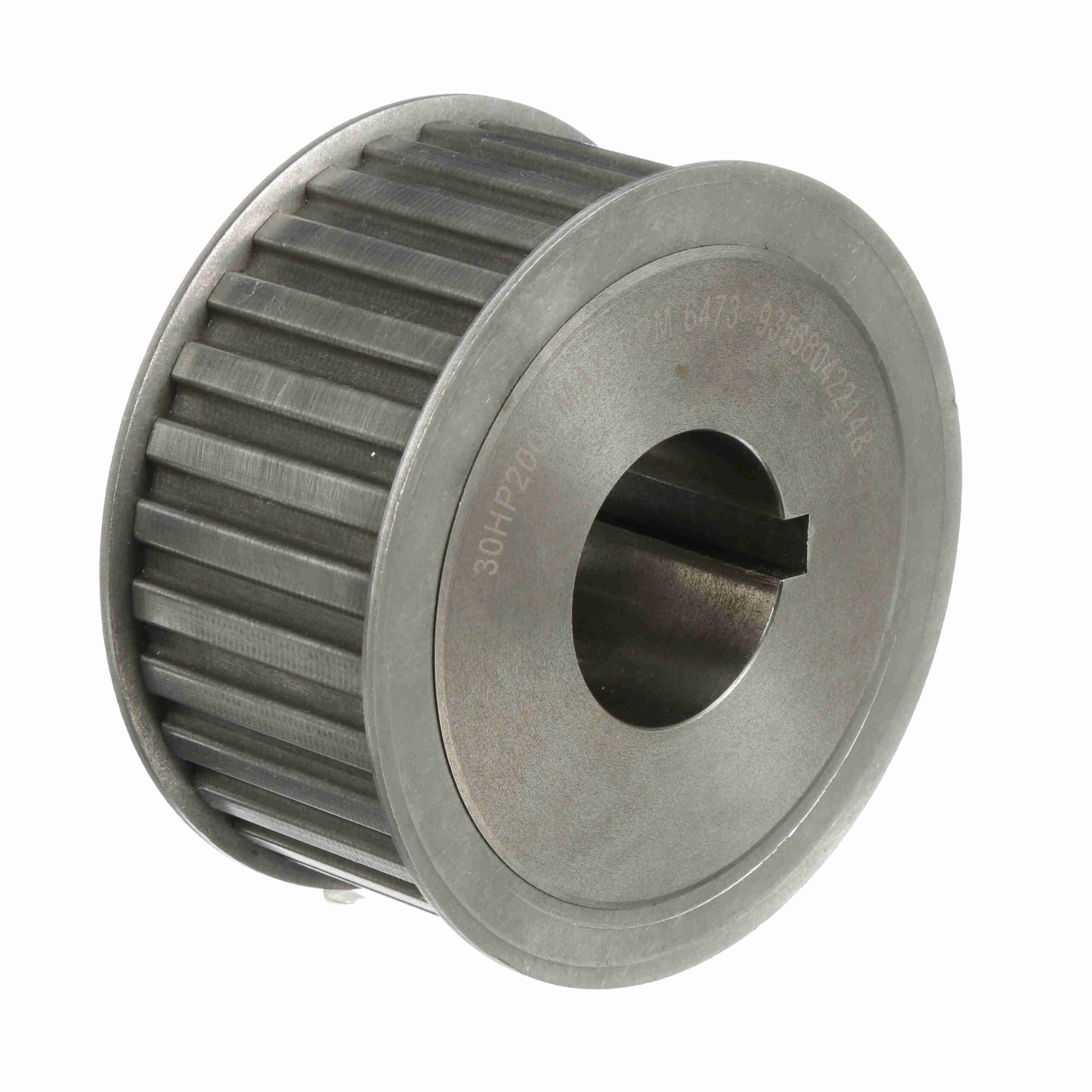

Browning Steel Bushed Bore Gearbelt Pulley – 30HP200
$433.64
Out of stock
Out of stock
| Product Type: | Gearbelt Pulley | Number of teeth: | 30 |
|---|---|---|---|
| Width (mm): | 50.8 mm | Bore Range: | 3/4 to 1 3/4 |
| Bore Type: | Bushed Bore | Material: | Ductile Iron |
| Belt Section: | H | Outside Diameter (mm): | 119.9134 mm |
| Flange (in): | 5.0000 in | Width (in): | 2 in |
| Outside Diameter (in): | 4.721 in | Pitch Diameter (in): | 4.775 in |
| Face Width: | 2.344 | Hub Diameter (in): | 3 in |
| With Flanges: | With Flanges | Overall Length (in): | 3.219 in |
| Pulley Construction: | Solid | Number of Hubs: | 1 |
| Hub Projection: | 0.88 | Length Through Bore: | 2.938 |
| UPC: | 662289314591 | Weight: | 8.61 LB |
| Packaged Length: | 5.3 Inches | Packaged Width: | 5.3 Inches |
| Packaged Height: | 3.6 Inches | HTC: | 8483.50.9080 |
| Country of Origin: | United States of America |
