- Browning Minimum Bore Spur Gear
- Browning Gears are rated in accordance with AGMA standards
- When you think “Special” Gears – Think Browning
YSS1672

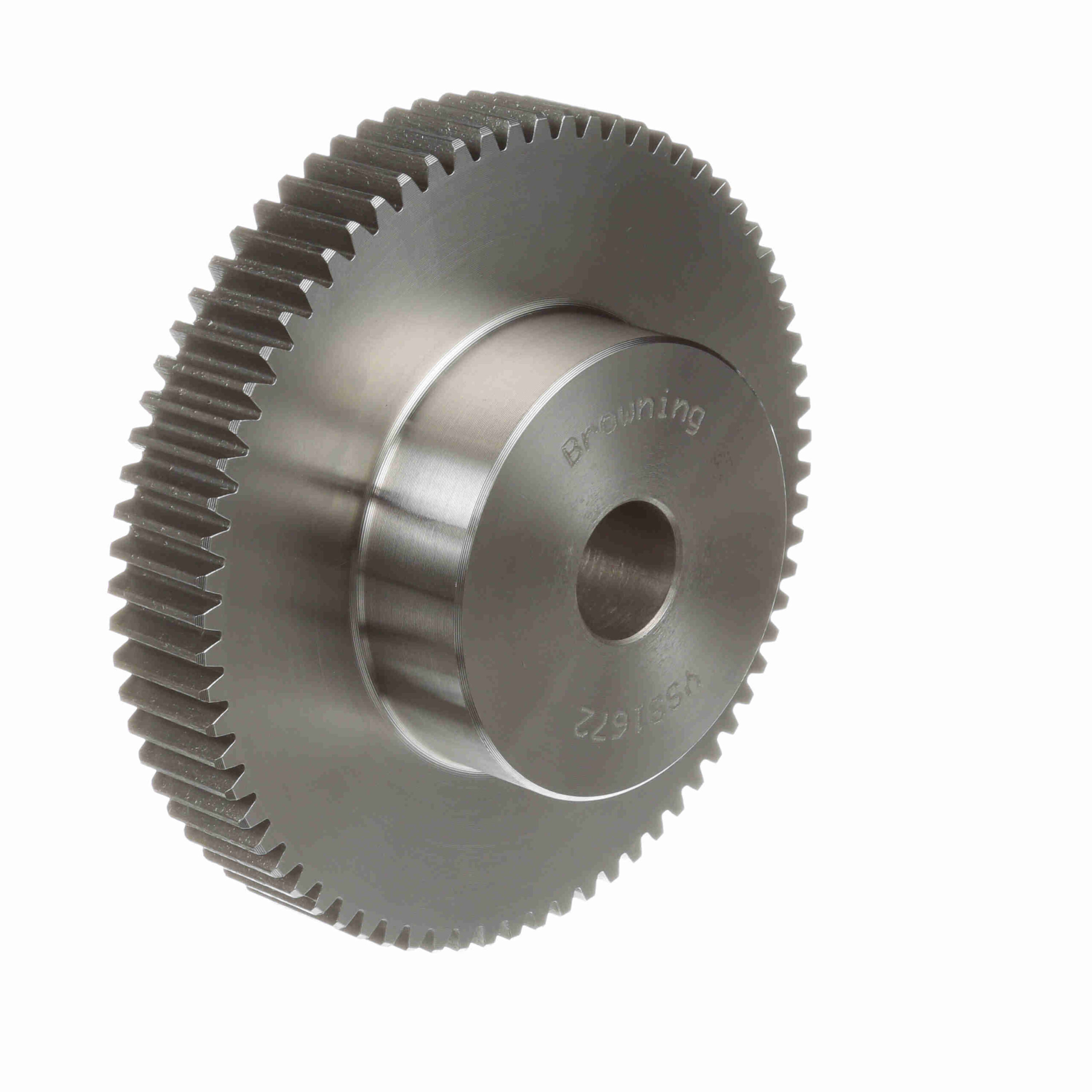

Browning Steel Minimum Plain Bore Spur Gear – 20 PA 16 DP – YSS1672
$207.08
Out of stock
Out of stock
| Pressure Angle: | 20 | Hub Diameter (in): | 2.5 in |
|---|---|---|---|
| Outside Diameter (in): | 4.62 in | Pitch Diameter (in): | 4.5 in |
| Hub Projection (in): | 0.75 in | Face Width (in): | 0.75 in |
| Material: | Steel | Diametral Pitch: | 16 |
| Number of Teeth/Threads: | 72 | Bore (Min) (in): | 0.75 in |
| Length Through Bore (in): | 1.5 in | Bore Type: | Minimum Plain Bore |
| Bore (Max) (in): | 1.625 in | Product Type: | Spur Gear |
| Bore Size (in): | 0.75 in | Hub Type: | Type B |
| Standard Met: | AGMA | Overall Length (in): | 1.5 in |
| UPC: | 662289126118 | Weight: | 4.27 LB |
| Packaged Length: | 4.60 Inches | Packaged Width: | 4.70 Inches |
| Packaged Height: | 1.70 Inches | HTC: | 8483.40.9000 |
| Country of Origin: | Mexico |
