- Browning Split Taper Bushed Spur Gears are shaft ready and eliminate costly reworking of minimum bore gears
- Browning Gears are rated in accordance with AGMA standards
- When you think “Special” Gears – Think Browning
YSS12H36

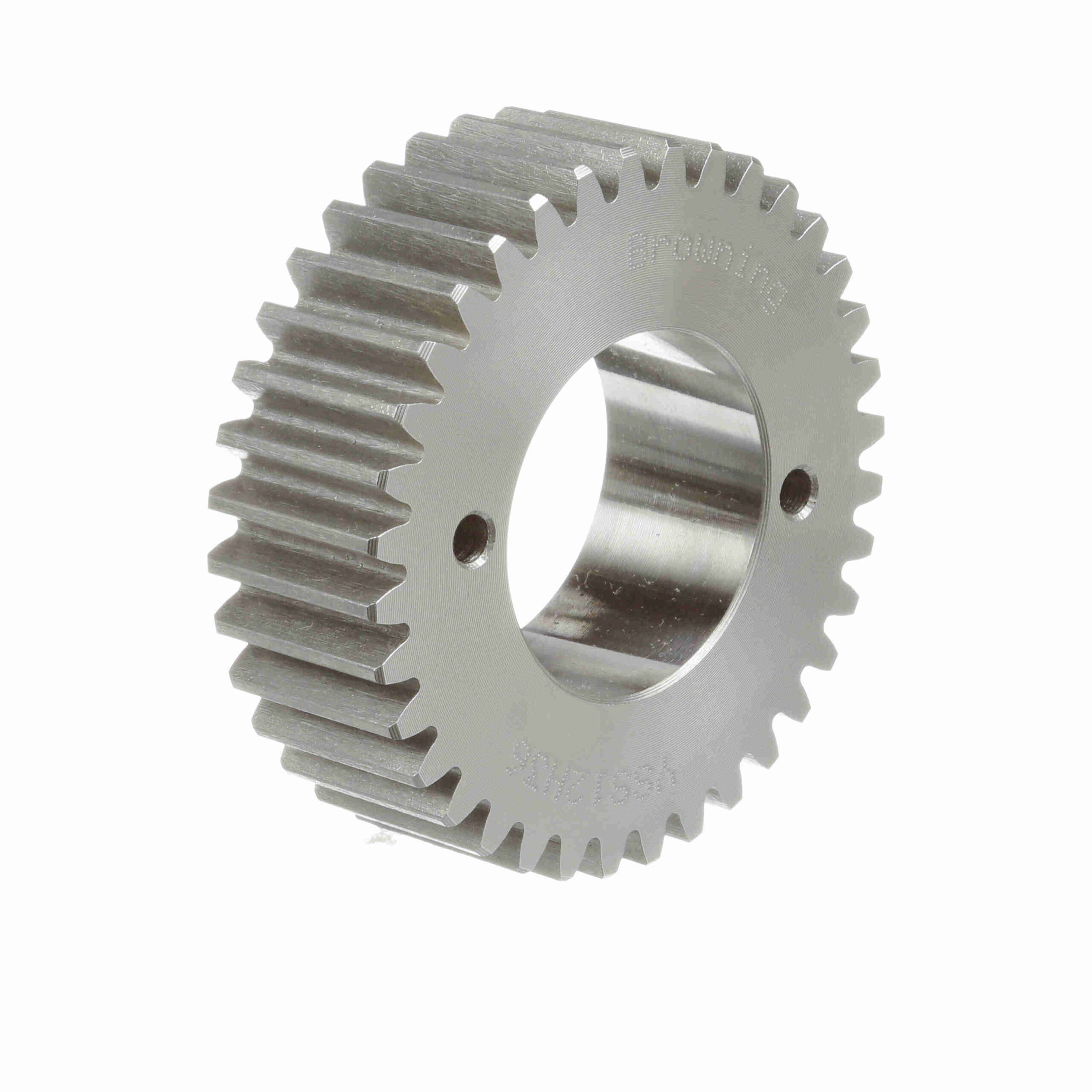

Browning Steel Bushed Bore Spur Gear – 20 PA 12 DP – YSS12H36
$209.40
Out of stock
Out of stock
| Outside Diameter (in): | 3.16 in | Diametral Pitch: | 12 |
|---|---|---|---|
| Pitch Diameter (in): | 3 in | Face Width (in): | 1 in |
| Number of Teeth/Threads: | 36 | Pressure Angle: | 20 |
| Material: | Steel | Length Through Bore (in): | 1.625 in |
| Bore (Max) (in): | 1.5 in | Bore Type: | Bushed Bore |
| Bore (Min) (in): | 0.375 in | Bore Size (in): | 0.375 in |
| Product Type: | Spur Gear | Hub Type: | H |
| Standard Met: | AGMA | Overall Length (in): | 1.625 in |
| UPC: | 662289167647 | Weight: | 1.44 LB |
| Packaged Length: | 4.00 Inches | Packaged Width: | 3.50 Inches |
| Packaged Height: | 1.50 Inches | HTC: | 8483.40.9000 |
| Country of Origin: | Mexico |
