- Browning Minimum Bore Spur Gear
- Browning Gears are rated in accordance with AGMA standards
- When you think “Special” Gears – Think Browning
YSS1236

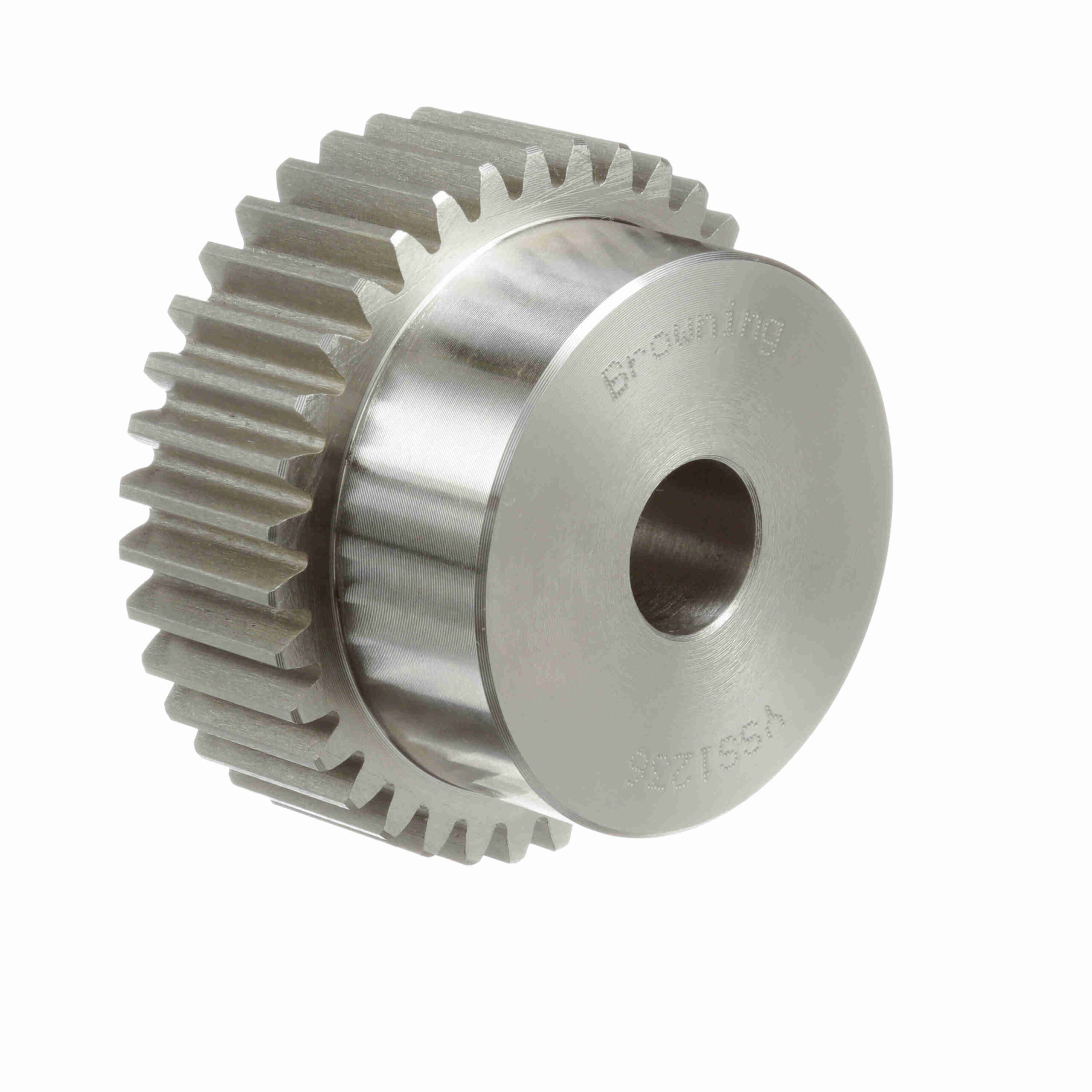

Browning Steel Minimum Plain Bore Spur Gear – 20 PA 12 DP – YSS1236
$199.14
Out of stock
Out of stock
| Hub Diameter (in): | 2.5 in | Outside Diameter (in): | 3.16 in |
|---|---|---|---|
| Face Width (in): | 1 in | Material: | Steel |
| Diametral Pitch: | 12 | Hub Projection (in): | 0.875 in |
| Pressure Angle: | 20 | Pitch Diameter (in): | 3 in |
| Number of Teeth/Threads: | 36 | Bore Type: | Minimum Plain Bore |
| Bore (Max) (in): | 1.625 in | Length Through Bore (in): | 1.875 in |
| Bore (Min) (in): | 0.75 in | Bore Size (in): | 0.75 in |
| Product Type: | Spur Gear | Hub Type: | Type B |
| Overall Length (in): | 1.875 in | Standard Met: | AGMA |
| UPC: | 662289176298 | Weight: | 3.02 LB |
| Packaged Length: | 3.70 Inches | Packaged Width: | 3.90 Inches |
| Packaged Height: | 2.40 Inches | HTC: | 8483.40.9000 |
| Country of Origin: | Mexico |
