- Powder coated epoxy cast iron housing with extended inner ring bearings
- Zone hardened inner ring with 120° spacing setscrew with diamond faceted setscrews
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation
ST-208

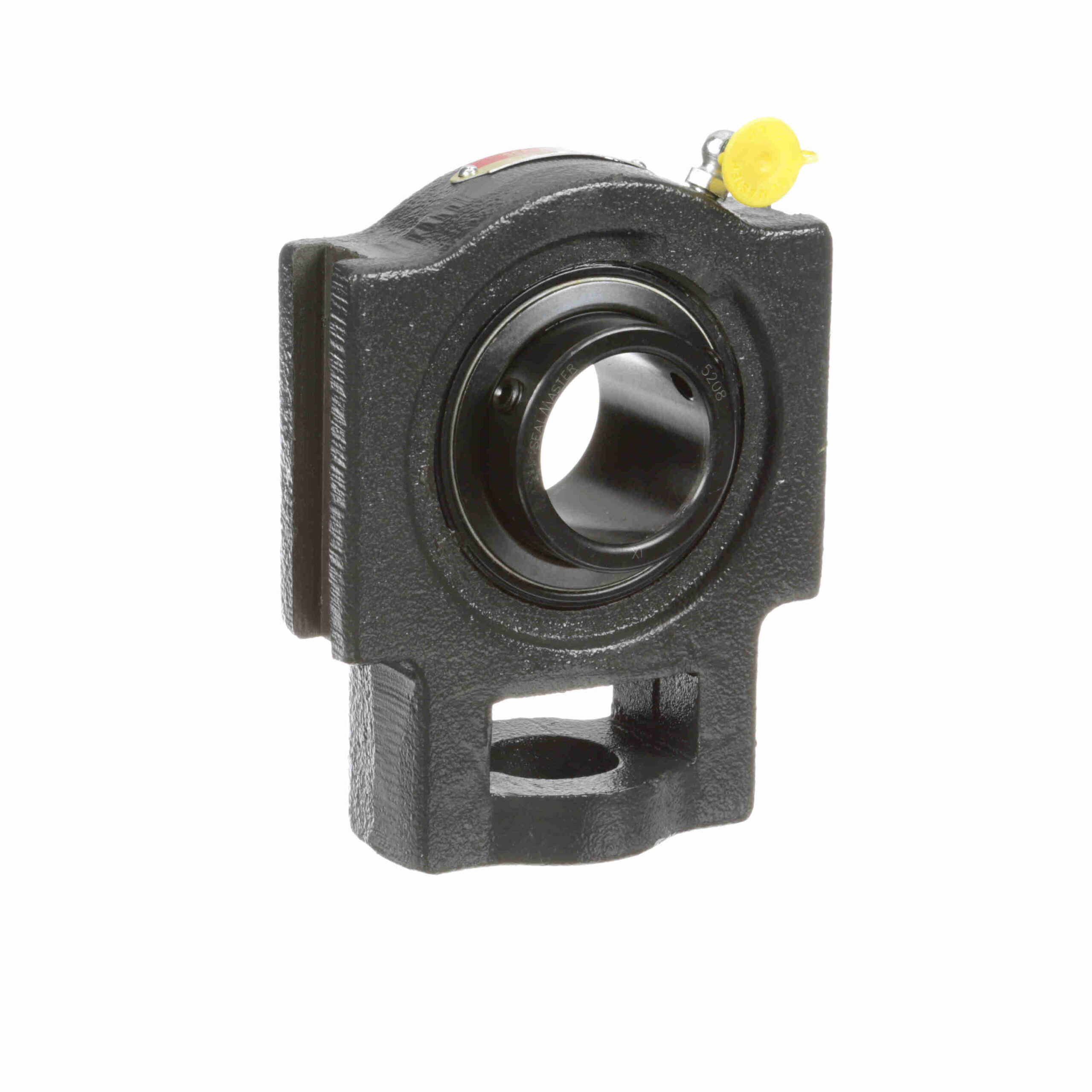

Sealmaster Mounted Cast Iron Wide Slot Take Up Ball Bearing – 52100 Bearing Steel, Black Oxided – Setscrew Lock – ST-208
$327.83
Out of stock
Out of stock
| Maximum Operating Temperature: | 220 °F | Measure Units: | Metric |
|---|---|---|---|
| Duty Series: | Standard Duty | Housing Material: | Cast Iron |
| Rolling Element: | Ball Bearing | Speed (Max): | 4150 |
| Retainer Type: | Land Riding Retainer | Expansion: | No |
| Seal Type: | Felt Labyrinth Seal | Insert No.: | 5208 |
| Insert Material: | 52100 Bearing Steel, Black Oxided | Housing Type: | Take-Up Block, Wide Slot |
| Internal Clearance: | Standard | Locking Type: | Setscrew |
| Inner-Race Heat-Treat Method: | Zone-Hardened | Frame Type: | Center Pull Wide Slot |
| Relubricatable: | Yes | Radial Dynamic Load Capacity (lb): | 7, 340 |
| Lubrication: | Lithium Complex NLGI 2 Grease | Housing Construction: | One Piece |
| Misalignment: | ±2.0° Misalignment - Static Only | Bore Shape: | Straight |
| Outer Ring Land Profile: | Standard | End Cap: | No |
| Replaceable Insert: | Yes | Misalignment Type: | Static Only |
| Housing Color: | Gray | Bearing Insert Coating: | Black Oxide Coated |
| Platform: | Gold Line Ball Bearing | Series: | ST |
| Unit Type: | Side Mount | Component Description: | Take Up Bearing Only |
| UPC: | 662461052846 | Weight: | 6.00 LB |
| Packaged Length: | 4.63 Inches | Packaged Width: | 2.31 Inches |
| Packaged Height: | 7.5 Inches | HTC: | 8483.20.4040 |
| Country of Origin: | United States of America |
