- Powder coat epoxy cast iron housing
- Zone hardened inner ring with 120? spacing setscrew lock with diamond faceted setscrews
- Single lip contact seal and flinger
VTWS-223

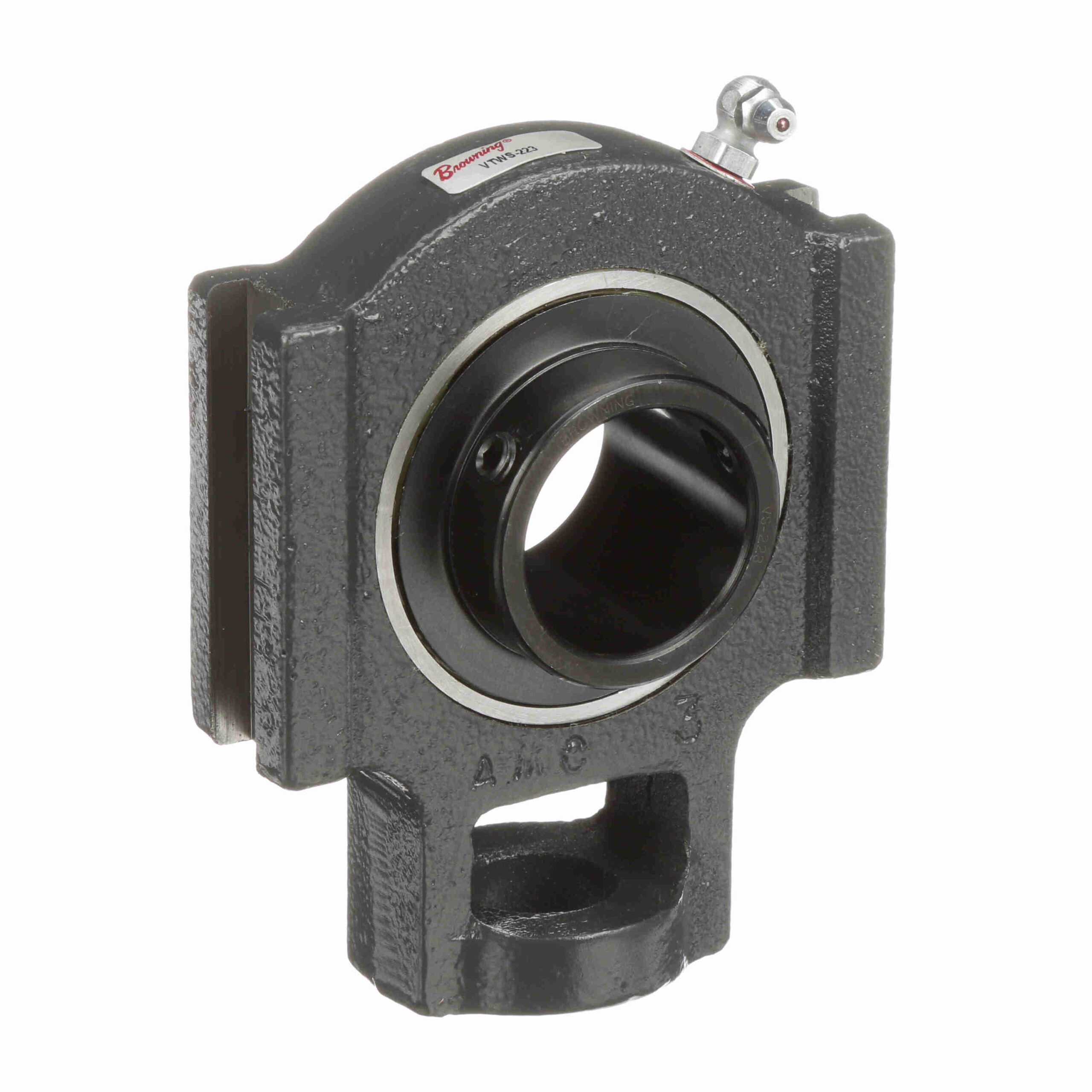

Browning Mounted Cast Iron Wide Slot Take Up Ball Bearing – 52100 Bearing Steel, Black Oxided Inner – Setscrew Lock – VTWS-223
$124.35
Availability: 11 in stock
Availability: 11 in stock
| Seal Type: | Single Lip Contact Seal with Flinger | Measure Units: | Inch |
|---|---|---|---|
| Expansion: | No | Retainer Type: | Ball Riding Retainer |
| Duty Series: | Standard Duty | Insert Material: | 52100 Bearing Steel; Black Oxided Inner |
| Housing Type: | Take-Up Block; Wide Slot | Housing Material: | Cast Iron |
| Speed (Max): | 4000 | Rolling Element: | Ball Bearing |
| Maximum Operating Temperature: | 200 °F | Insert No.: | VS-223 |
| Relubricatable: | Yes | Lubrication: | Lithium Complex NLGI 2 Grease |
| Housing Construction: | One Piece | Locking Type: | Setscrew |
| Bore Shape: | Straight | Radial Dynamic Load Capacity (lb): | 5, 782 |
| Frame Type: | Center Pull Wide Slot | Internal Clearance: | Standard |
| Misalignment: | ±1.5° Misalignment - Static Only | Retainer Material: | Molded fiber glass reinforced nylon |
| Housing Color: | Gray | End Cap: | No |
| Bearing Insert Coating: | Black Oxide Coated Inner Ring | Misalignment Type: | Static Only |
| Outer Ring Land Profile: | Standard | Replaceable Insert: | Yes |
| Series: | VTWS-200 | Unit Type: | Side Mount |
| Component Description: | Take Up Bearing Only | UPC: | 662289528516 |
| Weight: | 3.12 LB | Packaged Length: | 7.1 Inches |
| Packaged Width: | 4.4 Inches | Packaged Height: | 2.2 Inches |
| HTC: | 8483.20.4040 | Country of Origin: | Mexico |
