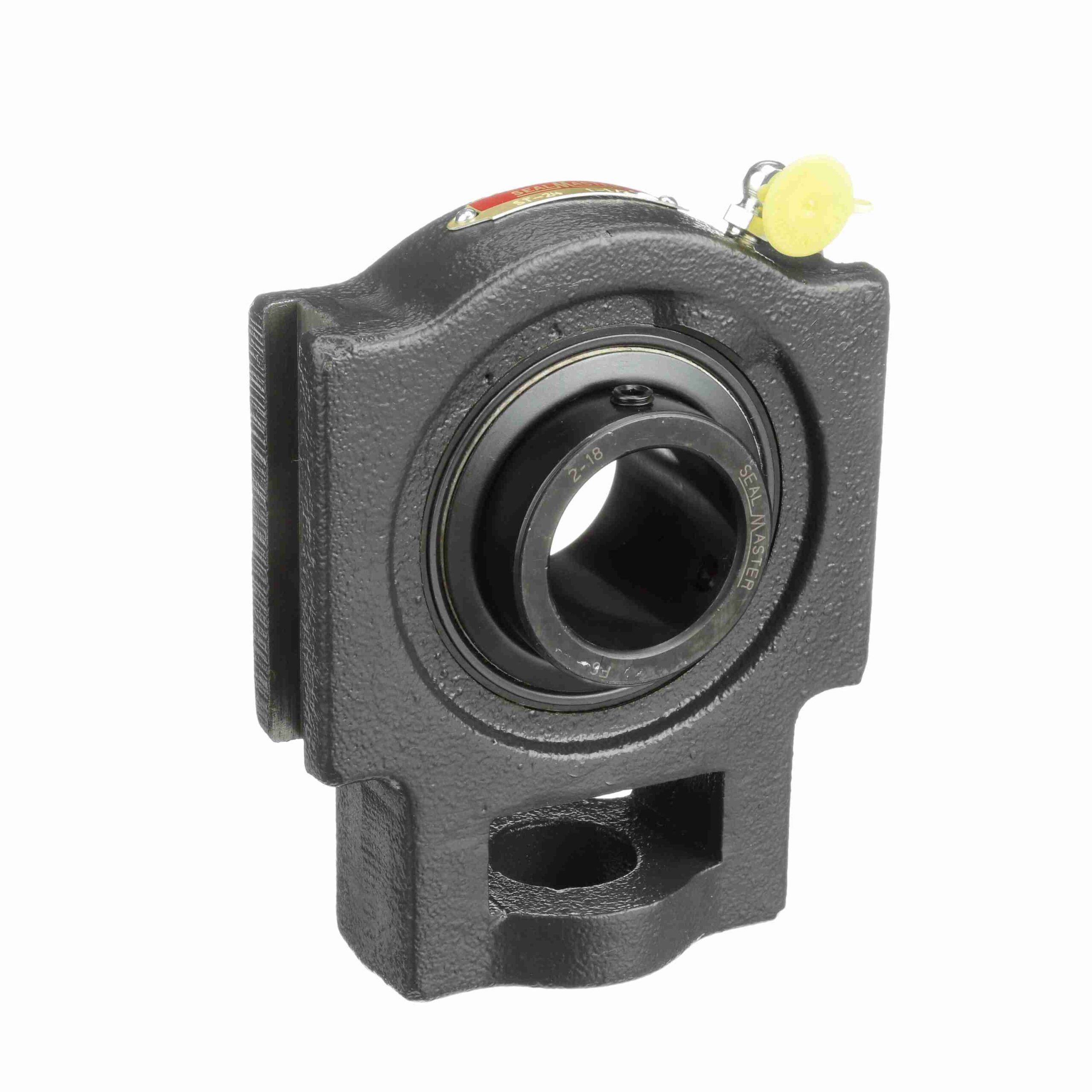

ST-24

Powder coated epoxy cast iron housing with extended inner ring bearings
Zone hardened inner ring with 120? spacing setscrew with diamond faceted setscrews
Unique land riding retainer design provides superior pocket clearance that allows for 360? grease circulation around the rolling elements resulting in better retained and utilized lubrication.
Sealmaster? exclusive lock pin , dimple for direct lubrication and anti-rotation

Speed (Max):	4150	Expansion:	No
Seal Type:	Felt Labyrinth Seal	Rolling Element:	Ball Bearing
Retainer Type:	Land Riding Retainer	Housing Material:	Cast Iron
Insert No.:	2-18	Duty Series:	Standard Duty
Housing Type:	Take-Up Block; Wide Slot	Maximum Operating Temperature:	220 °F
Measure Units:	Inch	Insert Material:	52100 Bearing Steel; Black Oxided
Bore Shape:	Straight	Locking Type:	Setscrew
Radial Dynamic Load Capacity (lb):	7, 340	Housing Construction:	One Piece
Internal Clearance:	Standard	Frame Type:	Center Pull Wide Slot
Inner-Race Heat-Treat Method:	Zone-Hardened	Lubrication:	Lithium Complex NLGI 2 Grease
Misalignment:	±2.0° Misalignment - Static Only	Relubricatable:	Yes
Replaceable Insert:	Yes	Housing Color:	Gray
Platform:	Gold Line Ball Bearing	End Cap:	No
Outer Ring Land Profile:	Standard	Bearing Insert Coating:	Black Oxide Coated
Misalignment Type:	Static Only	Series:	ST
Unit Type:	Side Mount	Component Description:	Take Up Bearing Only
UPC:	662461006207	Weight:	6.11 LB
Packaged Length:	4.63 Inches	Packaged Width:	2.31 Inches
Packaged Height:	7.5 Inches	HTC:	8483.20.4040
Country of Origin:	United States of America
