- Powder coat epoxy cast iron housing
- Zone hardened inner ring with 120? spacing setscrew lock with diamond faceted setscrews
- Single lip contact seal and flinger
VTWS-220

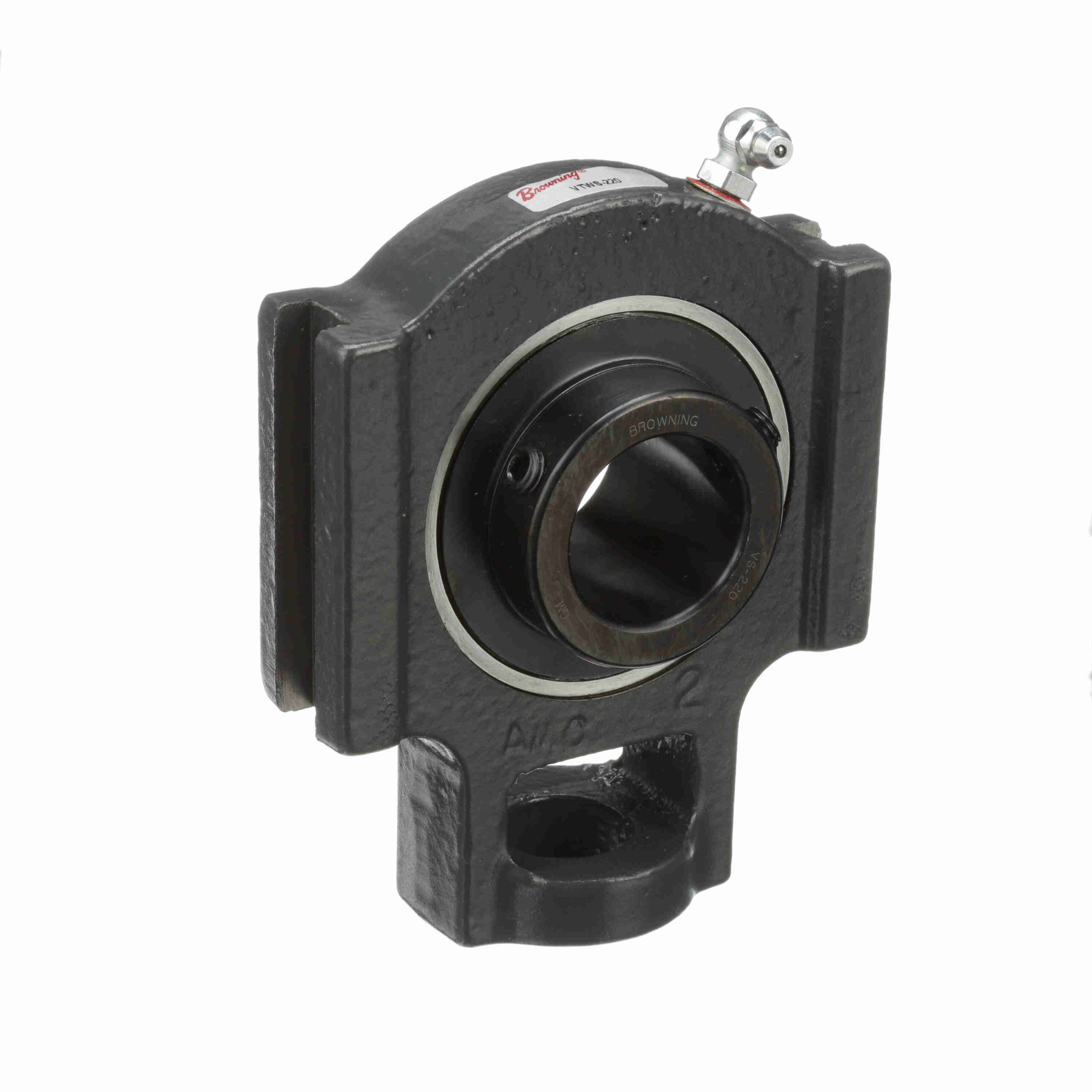

Browning Mounted Cast Iron Wide Slot Take Up Ball Bearing – 52100 Bearing Steel, Black Oxided Inner – Setscrew Lock – VTWS-220
$124.35
Availability: 5 in stock
Availability: 5 in stock
| Insert No.: | VS-220 | Duty Series: | Standard Duty |
|---|---|---|---|
| Insert Material: | 52100 Bearing Steel; Black Oxided Inner | Speed (Max): | 4000 |
| Maximum Operating Temperature: | 200 °F | Measure Units: | Inch |
| Housing Type: | Take-Up Block; Wide Slot | Seal Type: | Single Lip Contact Seal with Flinger |
| Expansion: | No | Rolling Element: | Ball Bearing |
| Housing Material: | Cast Iron | Retainer Type: | Ball Riding Retainer |
| Lubrication: | Lithium Complex NLGI 2 Grease | Housing Construction: | One Piece |
| Internal Clearance: | Standard | Locking Type: | Setscrew |
| Bore Shape: | Straight | Relubricatable: | Yes |
| Misalignment: | ±1.5° Misalignment - Static Only | Frame Type: | Center Pull Wide Slot |
| Radial Dynamic Load Capacity (lb): | 5, 782 | Outer Ring Land Profile: | Standard |
| Retainer Material: | Molded fiber glass reinforced nylon | Housing Color: | Gray |
| Bearing Insert Coating: | Black Oxide Coated Inner Ring | Replaceable Insert: | Yes |
| End Cap: | No | Misalignment Type: | Static Only |
| Series: | VTWS-200 | Unit Type: | Side Mount |
| Component Description: | Take Up Bearing Only | UPC: | 662289528486 |
| Weight: | 3.28 LB | Packaged Length: | 4.5 Inches |
| Packaged Width: | 7.1 Inches | Packaged Height: | 2.2 Inches |
| HTC: | 8483.20.4040 | Country of Origin: | Mexico |
