- Powder coated epoxy cast iron housing with extended inner ring bearings
- Zone hardened inner ring with 120? spacing setscrew with diamond faceted setscrews
- Unique land riding retainer design provides superior pocket clearance that allows for 360? grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster? exclusive lock pin , dimple for direct lubrication and anti-rotation
ST-31

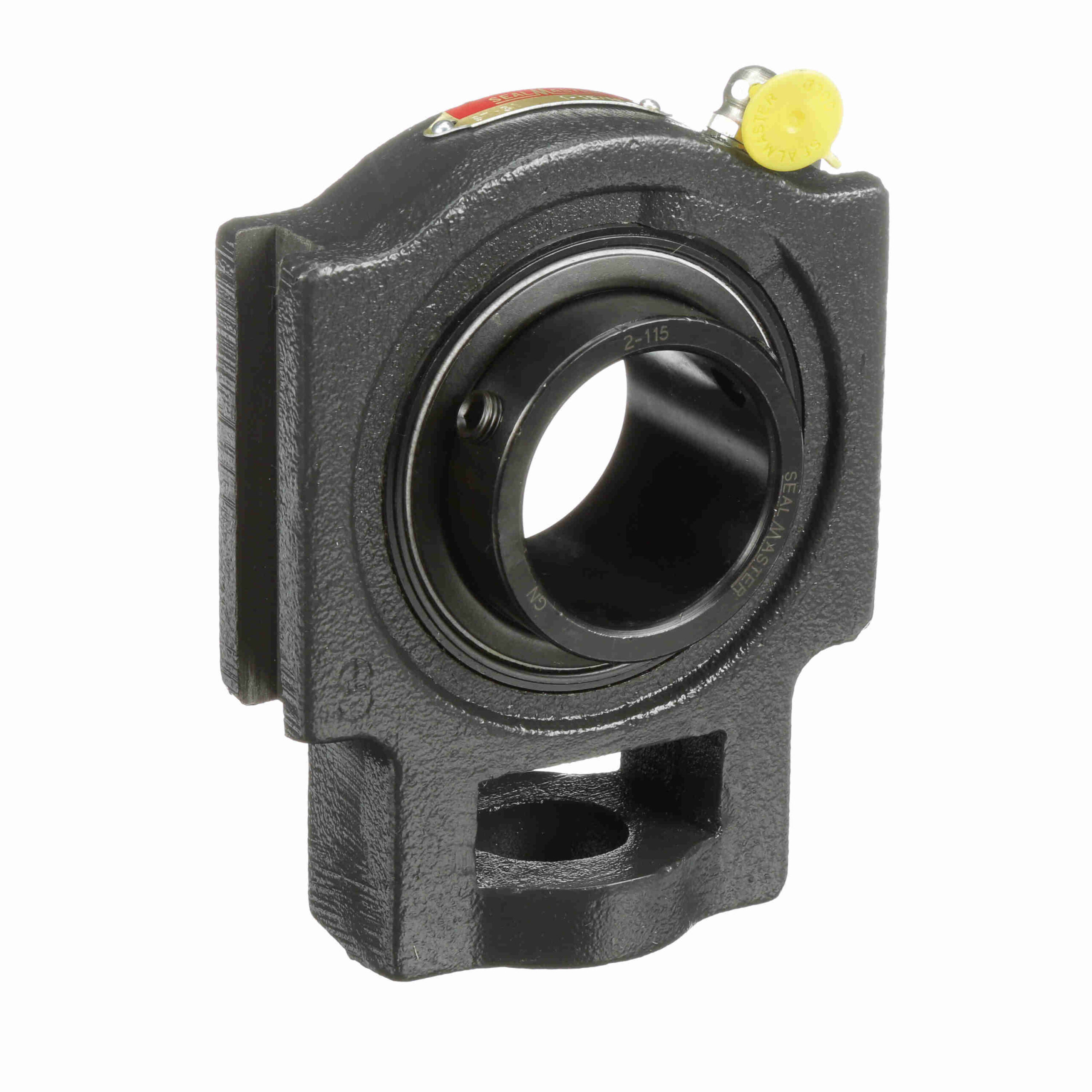

Sealmaster Mounted Cast Iron Wide Slot Take Up Ball Bearing – 52100 Bearing Steel, Black Oxided – Setscrew Lock – ST-31
$232.38
Availability: 9 in stock
Availability: 9 in stock
| Retainer Type: | Land Riding Retainer | Rolling Element: | Ball Bearing |
|---|---|---|---|
| Duty Series: | Standard Duty | Housing Type: | Take-Up Block; Wide Slot |
| Speed (Max): | 3550 | Insert No.: | 2-115 |
| Measure Units: | Inch | Insert Material: | 52100 Bearing Steel; Black Oxided |
| Seal Type: | Felt Labyrinth Seal | Expansion: | No |
| Housing Material: | Cast Iron | Maximum Operating Temperature: | 220 °F |
| Radial Dynamic Load Capacity (lb): | 7, 889 | Locking Type: | Setscrew |
| Inner-Race Heat-Treat Method: | Zone-Hardened | Housing Construction: | One Piece |
| Lubrication: | Lithium Complex NLGI 2 Grease | Internal Clearance: | Standard |
| Frame Type: | Center Pull Wide Slot | Relubricatable: | Yes |
| Bore Shape: | Straight | Misalignment: | ±2.0° Misalignment - Static Only |
| Bearing Insert Coating: | Black Oxide Coated | End Cap: | No |
| Platform: | Gold Line Ball Bearing | Outer Ring Land Profile: | Standard |
| Replaceable Insert: | Yes | Housing Color: | Gray |
| Misalignment Type: | Static Only | Series: | ST |
| Unit Type: | Side Mount | Component Description: | Take Up Bearing Only |
| UPC: | 662461006276 | Weight: | 6.00 LB |
| Packaged Length: | 5.19 Inches | Packaged Width: | 2.13 Inches |
| Packaged Height: | 7.81 Inches | HTC: | 8483.20.4040 |
| Country of Origin: | United States of America |
