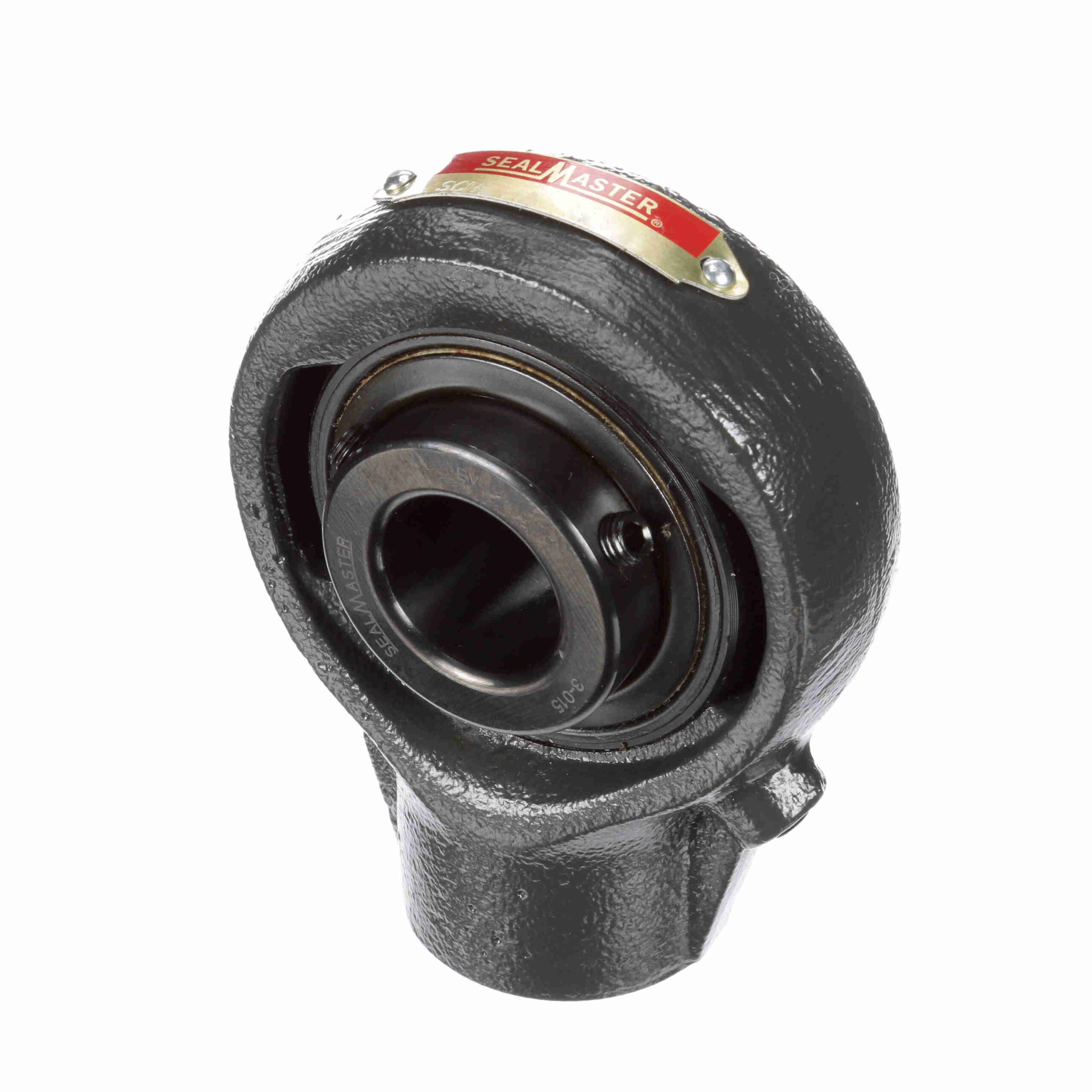

SCHB-32RC

Powder coated epoxy cast iron housing with extended inner ring bearings
Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
Single lip contact seal
Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Bore Shape:	Straight	Insert Material:	52100 Bearing Steel, Black Oxided
Seal Type:	Single Lip Contact Seal	Rolling Element:	Ball Bearing
Measure Units:	Inch	Housing Construction:	One Piece
Internal Clearance:	Standard	Misalignment:	±2.0° Misalignment - Static Only
End Cap:	No	Replaceable Insert:	Yes
Housing Color:	Gray	Outer Ring Land Profile:	Standard
Platform:	Gold Line Ball Bearing	Misalignment Type:	Static Only
Bearing Insert Coating:	Black Oxide Coated	Series:	CSCHB
Finish/Coating:	Uncoated	Maximum Speed (RPM):	3550 rpm
Fixed vs. Expansion:	Fixed	Housing Material:	Cast Iron
Duty/Series:	Standard Duty	Retainer Type:	Land Riding Retainer
Housing Type:	Hanger Unit	Locking Type:	Setscrew
Lubrication Type:	Lithium Complex NLGI 2 Grease	Housing Style:	Hanger Block
Inner Race Heat Treat Method:	Zone-Hardened	Maximum Operating Temperature (F):	220 °F
Ability to Relubricate:	Yes	Insert Number:	1-2C
Housing Thread Size:	1 - 11 1/2	UPC:	662461000000
Weight:	4.85 LB	Packaged Length:	5.5 Inches
Packaged Width:	2.13 Inches	Packaged Height:	5.5 Inches
HTC:	8483.20.4040	Country of Origin:	United States of America
