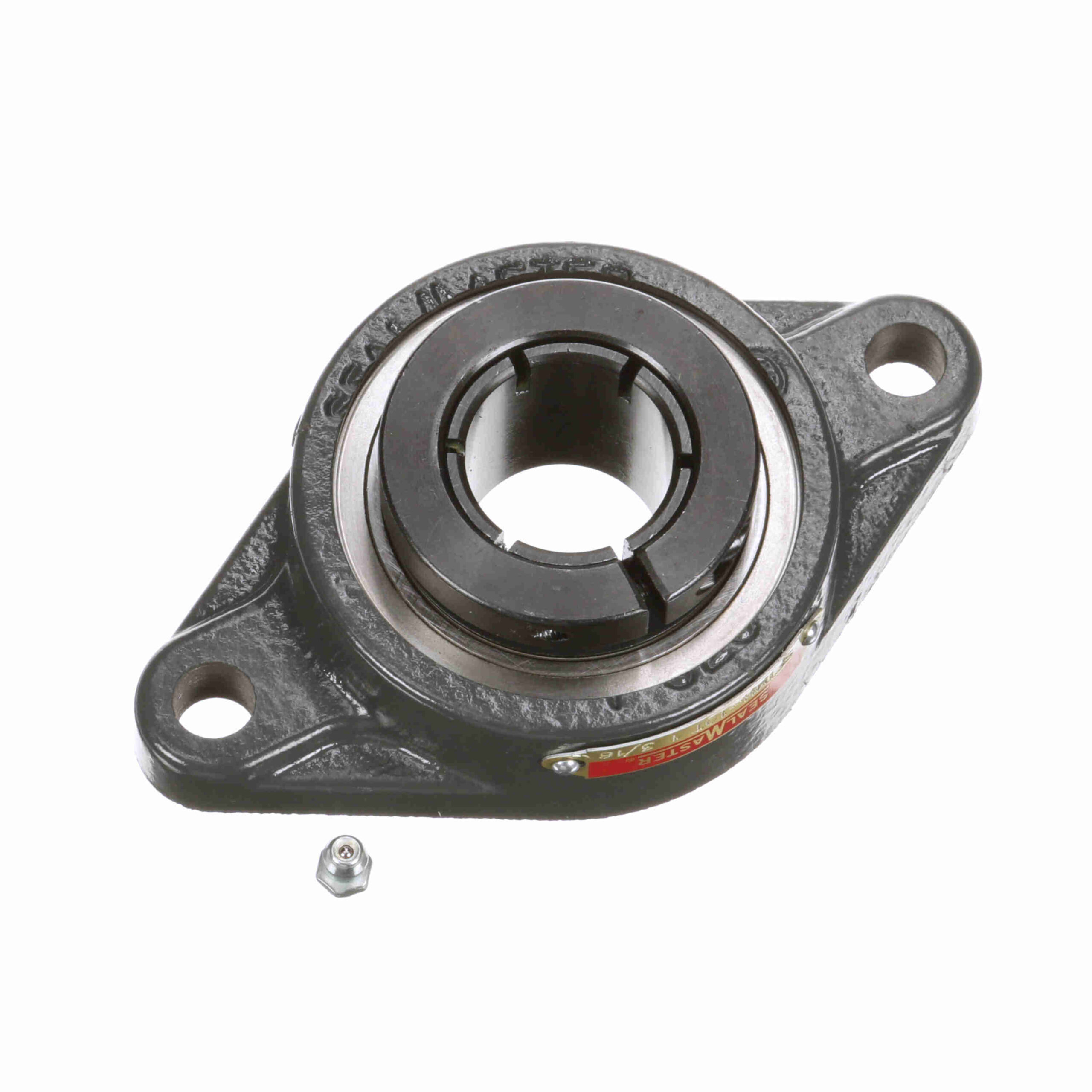

SFTMH-19T

Cast iron housed, extended inner ring bearing with ball riding nylon retainer
Designed to accommodate optional closed or open end to allow users to better conform OSHA requirements for personal protection
Skwezloc® Concentric locking for near perfect concentricity
Single lip contact seal and flinger
Supplied sealed for life with optional lubrication fitting in the box

Measure Units:	Inch	Housing Base:	Solid
Insert Material:	52100 Bearing Steel, Black Oxided	Seal Type:	Single Lip Contact Seal
Rolling Element:	Ball Bearing	Pilot Configuration:	No Pilot
Radial Dynamic Load Capacity (lb):	4, 381 lb	Misalignment:	±1.5° Misalignment - Static Only
Internal Clearance:	Standard	Housing Construction:	One Piece
Bore Shape:	Straight	Bearing Insert Coating:	Black Oxide Coated
Outer Ring Land Profile:	Standard	Housing Color:	Gray
End Cap:	No	Platform:	Gold Line Ball Bearing
Misalignment Type:	Static Only	Replaceable Insert:	Yes
Radial Static Load Capacity (lb):	2, 567 lb	Duty/Series:	Standard Duty
Housing Material:	Cast Iron	Maximum Speed (RPM):	4500 rpm
Fixed vs. Expansion:	Fixed	Lubrication Type:	Lithium Complex NLGI 2 Grease
Retainer Type:	Land Riding Retainer	Housing Style:	Flange Block
Locking Type:	Concentric	Housing Type:	Flange, Two Bolt
Ability to Relubricate:	Yes	Maximum Operating Temperature (F):	220 °F
Inner Race Heat Treat Method:	Zone-Hardened	Insert Number:	MH-19T
UPC:	662461340653	Weight:	2.21 LB
Packaged Length:	6.1 Inches	Packaged Width:	3.7 Inches
Packaged Height:	1.7 Inches	HTC:	8483.20.4040
Country of Origin:	Mexico
