- Sealmaster® Bev Dry™ cast iron housing with bolt on end cap and back side shield for optimal protection
- Skwezloc® concentric locking for near perfect concentricity
- High performance triple contact seal design provide multi-directional sealing with 304 stainless steel body and flinger to minimize contamination ingress and retain relubrication
- Tapered land outer ring ensures that lubricant will be easily directed back to the raceway
- Reduced maintenance design with plug and includes Sealmaster® Tapered Lands ensures that lubricant will be easily redirected back to the raceway.
- Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
BFB-20RTH RMD

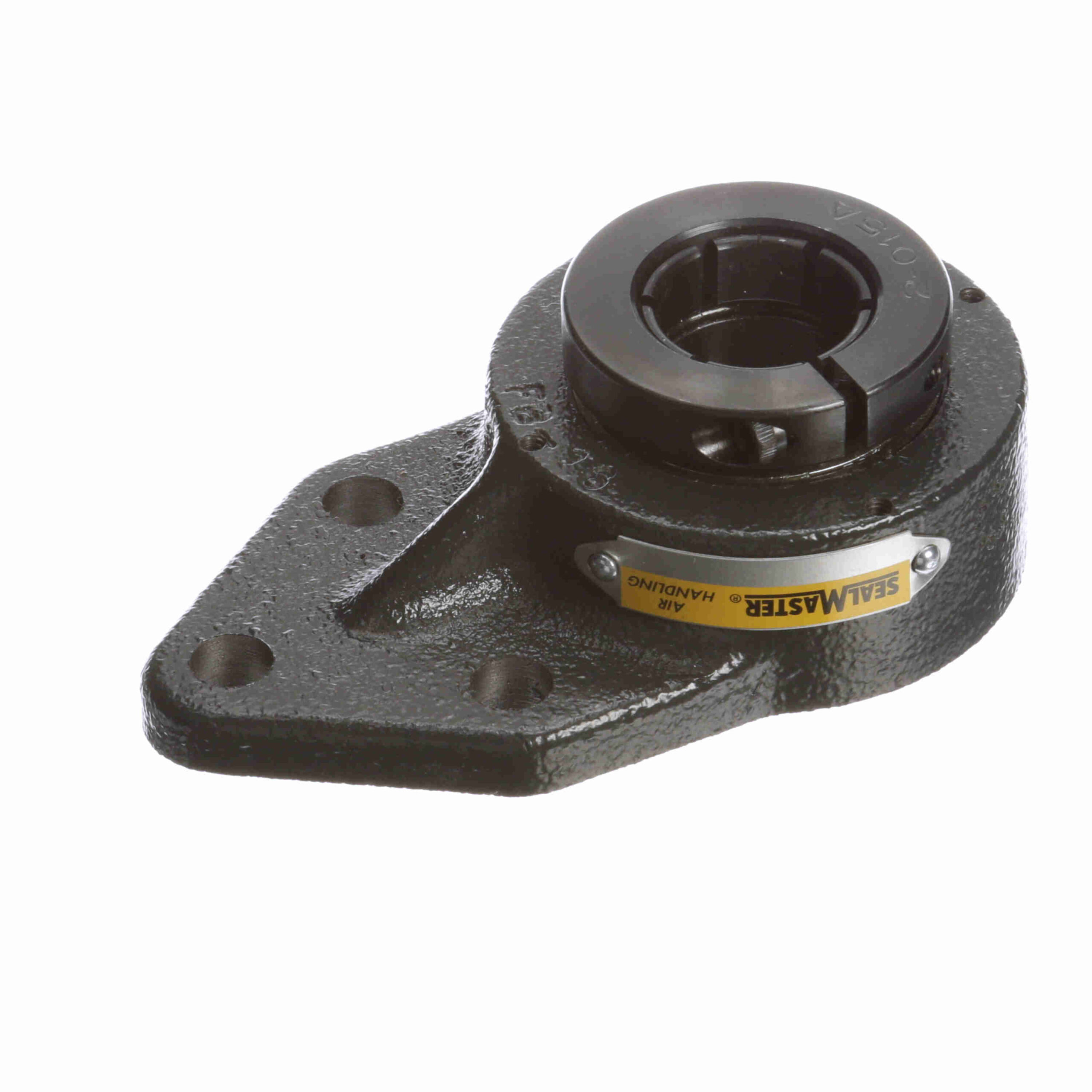

Sealmaster Mounted Cast Iron Three Bolt Flange Bracket Ball Bearing – 52100 Bearing Steel, Black Oxided – Concentric Lock – Reduced Maintenance – Lubed for Life – BFB-20RTH RMD
Out of stock
| Housing Base: | Solid | Bore Shape: | Straight |
|---|---|---|---|
| Measure Units: | Inch | Seal Type: | Multi-Lip Contact Seal |
| Insert Material: | 52100 Bearing Steel, Black Oxided | Rolling Element: | Ball Bearing |
| Pilot Configuration: | No Pilot | Misalignment: | ±2.0° Misalignment - Static Only |
| Internal Clearance: | Standard | Housing Construction: | One Piece |
| Bearing Insert Coating: | Black Oxide Coated | Misalignment Type: | Static Only |
| Options: | Reduced Maintenance - Lubed for Life | Replaceable Insert: | Yes |
| End Cap: | No | Housing Color: | Gray |
| Backside Shield/Seal: | Backside Shield included loose in box | Outer Ring Land Profile: | Tapered Lands |
| Platform: | Gold Line Ball Bearing | Maximum Speed (RPM): | 2300 rpm |
| Fixed vs. Expansion: | Fixed | Retainer Type: | Land Riding Retainer |
| Lubrication Type: | Lithium Complex NLGI 2 Grease | Housing Material: | Cast Iron |
| Duty/Series: | Standard Duty | Housing Style: | Flange Block |
| Housing Type: | Flange, Bracket, Three Bolt | Locking Type: | Concentric |
| Maximum Operating Temperature (F): | 220 °F | Ability to Relubricate: | No |
| Inner Race Heat Treat Method: | Zone-Hardened | Insert Number: | 1-14TH RM |
| UPC: | 662461369081 | Weight: | 2.54 LB |
| Packaged Length: | 3.5 Inches | Packaged Width: | 1.69 Inches |
| Packaged Height: | 5.75 Inches | HTC: | 8483.20.4040 |
| Country of Origin: | United States of America |
